Description

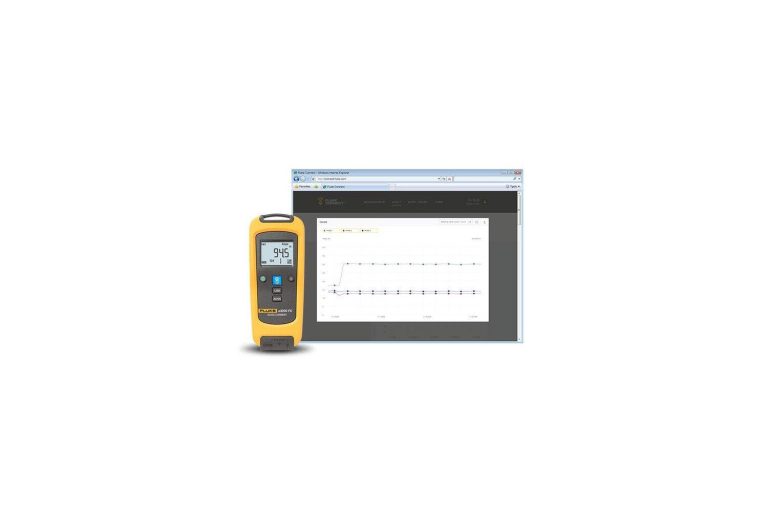

The Fluke a3002 FC Wireless AC/DC Current Module is a versatile and reliable solution for measuring current in various applications. With its wireless connectivity and adjustable logging interval, this module allows for seamless data collection and analysis.

Fluke a3002 Key Features

The Fluke a3002 FC boasts a range of impressive features, including a 3½ digit LCD display, 6000 counts, and a 4/sec update rate. It also offers adjustable logging intervals, from 1 second to 1 hour, and a default interval of 1 minute.

AC/DC Current Function
DC Range / Resolution: 0.1 A / 0.01 A
DC Accuracy: 0.5% + 3
AC Range / Resolution: 0.1 A / 0.01 A
AC Accuracy: 1.0% + 3
Maximum Voltage: 30 V DC or AC RMS
Log Rate/Interval: Adjustable by PC from 1 sec to 1 hr, default 1 min
Battery Type: 2 AA Alkaline batteries, NEDA 15A, IEC LR6
Battery Life: 400 hours minimum
Memory: Record up to 65,000 readings
RF Communications: 2.4 GHz ISM Band
RF Communication Range: Open air, unobstructed: Up to 6.5 m
Operating Temperature: -10°C to +50°C
Storage Temperature: -40°C to +60°C
Temperature Coefficient: 0.1 X (specified accuracy) / °C ( 28°C)
Relative Humidity: 0% to 90% (0°C to 35°C)
EMC: IEC 61236-1
Pollution Degree: 2
Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection (IP) Rating: IP42
Size (HxWxD): 160 x 66 x 38 mm (6.3 x 2.6 x 1.5 in)
Weight: 0.255 kg (9 oz)

Who Needs the Fluke a3002?

The Fluke a3002 FC is designed for technicians and engineers who require accurate and reliable current measurement in various applications. Its wireless connectivity and adjustable logging interval make it an ideal solution for data collection and analysis.

Fluke a3002 Applications

Use in Electrical Panel Testing to measure current in electrical panels and circuit breakers.
Measure Current in Industrial Control Systems to monitor and analyze system performance.
Use in Power Quality Analysis to measure current and voltage in power distribution systems.
Measure Current in Renewable Energy Systems to monitor and analyze system performance.
Use in Building Automation Systems to measure current and voltage in building electrical systems.
Measure Current in Medical Equipment to monitor and analyze equipment performance.

Why Buy Fluke a3002 from mme-ae?

At mme-ae, we offer the Fluke a3002 FC Wireless AC/DC Current Module at competitive prices, along with excellent customer service and support. Our team of experts is always available to assist with any questions or concerns you may have.

Fluke a3002 Specifications

AC/DC Current Function
A DC	Range / resolution	1000 A / 0.1 A
	Accuracy¹	(0.5% + 3)
A AC	Range / resolution	600.0 A / 0.1 A
	Accuracy¹	(1.0% + 3)
1. AC accuracy is specified from 45 Hz to 1000 Hz
Specifications
Maximum voltage between terminal and earth ground (module)	30 V DC or AC RMS
LCD w/backlight	3½ digits, 6000 counts, 4/sec update rate
Log rate/Interval	Adjustable by PC from 1 sec to 1 hr, default 1 min
Battery type	2 AA Alkaline batteries, NEDA 15A, IEC LR6
Battery life	400 hours minimum
Memory	Record up to 65,000 readings
RF communications	2.4 GHz ISM Band
RF communication range	Open air, unobstructed	Up to 20 m
	Obstructed, sheetrock wall	Up to 6.5 m
	Obstructed, concrete wall or steel electrical enclosure	Up to 3.5 m
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +60°C
Temperature coefficient	0.1 X (specified accuracy) / °C ( 28°C)
Relative humidity	0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C)
EMC	IEC 61236-1, Portable
Safety compliance	Protected to IEC 61010-1, 600 V CAT IV / 1000 V CAT III, 3rd edition Pollution Degree 2
Certifications	CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection (IP) rating	IP42
Size (HxWxD)	160 x 66 x 38 mm (6.3 x 2.6 x 1.5 in)
Weight	0.255 kg (9 oz)
Warranty	Three years
Not compatible with Fluke CNX test tools
