Fluke AC87 Bus Bar Clip Set UAE | CAT III 600 V

Description

Fluke AC87 Heavy Duty Bus Bar Clip Set Overview

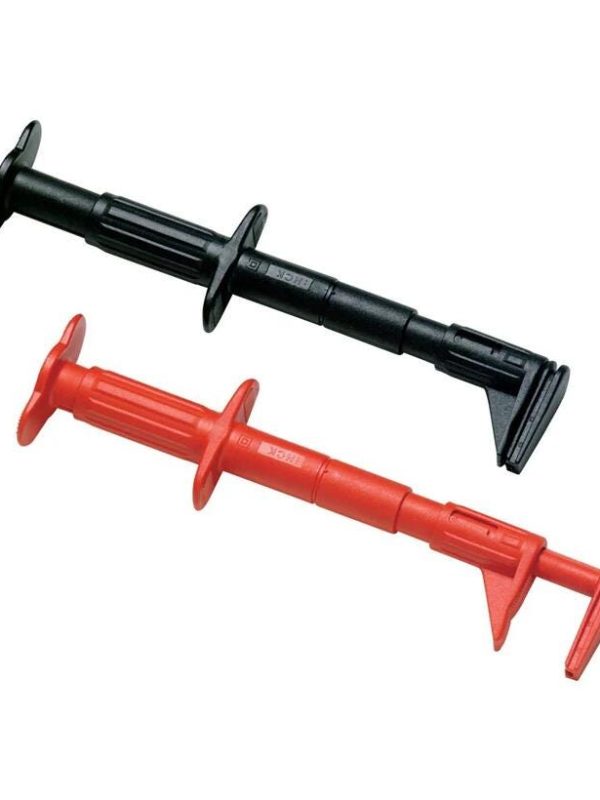

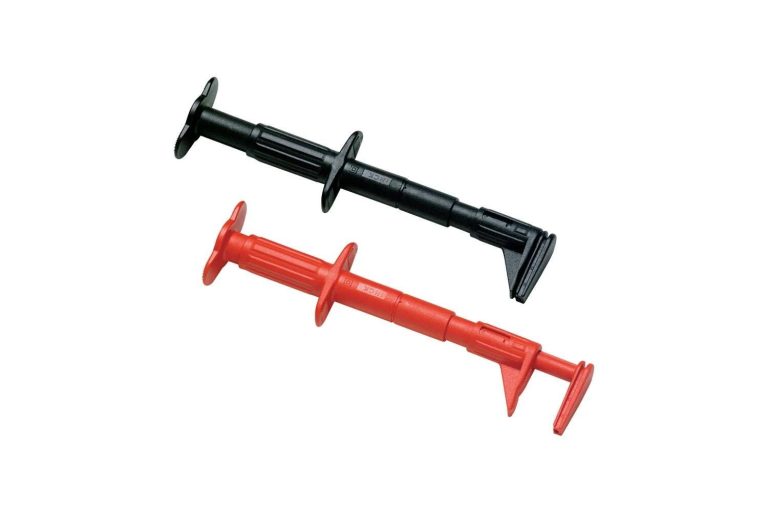

The Fluke AC87 is a pair of red and black heavy-duty clips with a flat, right-angle design for connecting to bus bars. An adjustable collar gives two jaw-opening ranges up to 30 mm, so the clips grip securely on flat bars and terminals inside switchgear and panels.

The set is rated CAT III 600 V, 5 A and is CSA listed. With the clips holding the connection, your hands stay away from live parts while you read the meter or leave a logger running.

Key Features

Flat, right-angle jaws made for bus bars
Adjustable collar with 2 jaw ranges, up to 30 mm
CAT III 600 V, 5 A, CSA listed
Hands-free connection for voltage checks and logging
Red and black pair; one-year Fluke warranty

Fluke AC87 Specifications

Fluke AC87 official specifications
Contents	1 pair of bus bar clips (red and black)
Design	Flat, right-angle design for connecting to bus bars
Jaw opening	Adjustable collar gives 2 jaw-opening ranges, up to 30 mm
Safety rating	CAT III 600 V, 5 A
Listing	CSA listed
Fluke part number	1278079
Warranty	1 year (Fluke)

Compatible Fluke Instruments

Fluke lists the AC87 as compatible with a wide range of instruments, including:

Multimeters: Fluke 87V, Fluke 289, Fluke 179, 177, 175, 117, 116, 115, 114, 110, 107, 106 and 83V
Clamp meters: Fluke 374 FC, 375 FC, Fluke 376 FC, 373, 365, 381 and Fluke 902 FC
Power loggers and analyzers: Fluke 1736 / 1738, 1732 / 1734, 1770 series and 1742 / 1746 / 1748
Calibrators: Fluke 787B, Fluke 789, Fluke 705, 709H, 710, 712 and 707Ex

AC87 vs Other Fluke Clips

Fluke clip comparison
Fluke AC87	Flat right-angle bus bar clips, jaws up to 30 mm; CAT III 600 V, 5 A
Fluke AC89	Insulation piercing clip for 0.25 to 1.5 mm insulated wire; 30 V rms / 60 V DC, 10 A
Fluke AC175 / AC285	Alligator clip sets for general connections

For round conductors and terminals, see the Fluke AC175 alligator clips or Fluke AC285 SureGrip alligator clips. To tap into insulated low-voltage wire, see the Fluke AC89 insulation piercing clip.

Typical Applications

Voltage checks on switchgear and panel bus bars
Connecting power loggers and power quality analyzers
Hands-free connections during commissioning and maintenance
Battery banks and DC bus connections within rating

Always isolate where possible and wear suitable PPE. Learn more in our guide to electrical safety standards and CAT ratings.

Need help choosing the right model or a quotation? Message our team on WhatsApp or use the quote button on this page.

Browse more electrical test accessories, clamp meters or Fluke products.

Fluke AC87 FAQ

What is the Fluke AC87 used for?

It makes a hands-free connection to bus bars and other flat conductors. Its flat, right-angle jaws clamp onto the bar so you can take a measurement without holding a probe in place.

How wide do the AC87 jaws open?

An adjustable collar gives two jaw-opening ranges, up to 30 mm.

What is the safety rating of the Fluke AC87?

Fluke rates the AC87 at CAT III 600 V, 5 A, and it is CSA listed.

Which Fluke instruments is it compatible with?

Fluke lists many models, including the 87V, 289, 179, 117 and 116 multimeters, the 374 FC, 375 FC, 376 FC, 902 FC and 365 clamp meters, the 1732/1734 and 1736/1738 loggers, the 1770 and 1742/1746/1748 power quality instruments, and the 787B, 789, 705, 709H and 712 calibrators.

Is it useful for power quality logging?

Yes. Fluke lists it for its 1730-series and 1736/1738 power loggers and 1770-series analyzers, where a secure clip on the bus bar is safer than holding a probe.

What warranty does Fluke give?

Fluke gives a one-year warranty on the AC87.
