Description

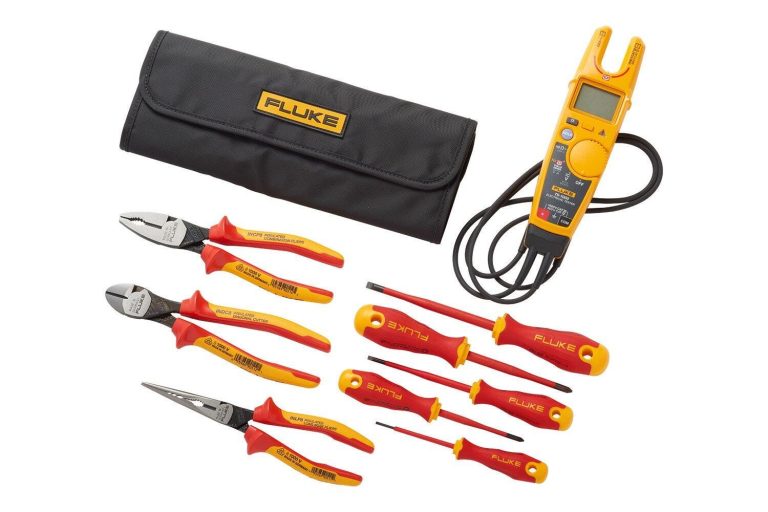

The Fluke T6-1000 Electrical Tester plus Insulated Hand Tools Starter Kit is a comprehensive solution for electricians, technicians, and maintenance professionals. This kit includes the Fluke T6-1000 Electrical Tester, which features FieldSense technology for easy measurements, as well as a set of insulated hand tools for safe working.

With its compact and lightweight design, the Fluke T6-1000 is perfect for working in tight spaces and can be easily carried in a toolbox or on a belt.

Fluke T6-1000 Key Features

The Fluke T6-1000 Electrical Tester features a range of key specifications, including:

Measures AC and DC voltage up to 1000V
Measures resistance up to 200kΩ
Measures AC conversions up to 1000V
FieldSense technology for easy measurements

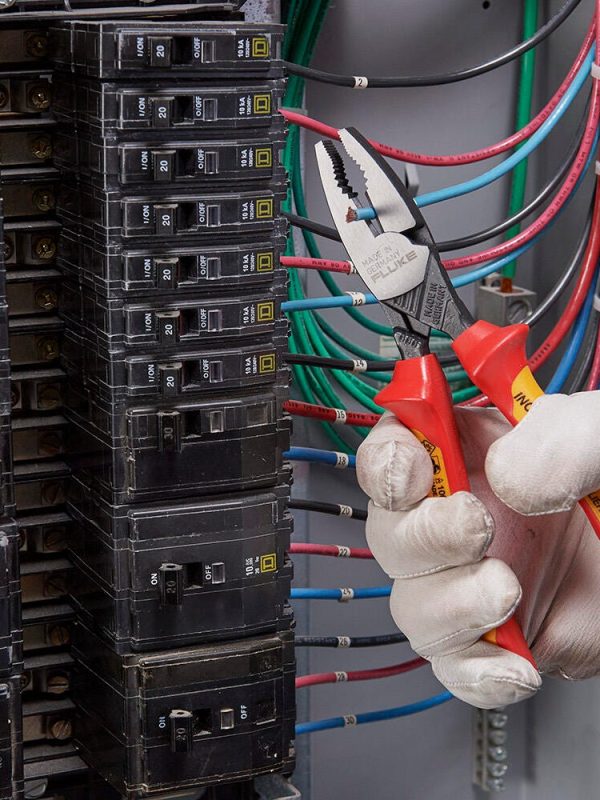

Insulated hand tools for safe working
Compact and lightweight design
Long battery life with 2x AA batteries

Who Needs the Fluke T6-1000?

The Fluke T6-1000 Electrical Tester plus Insulated Hand Tools Starter Kit is perfect for electricians, technicians, and maintenance professionals who need a reliable and accurate electrical tester for their work.

With its range of features and specifications, the Fluke T6-1000 is ideal for a variety of applications, including electrical testing, troubleshooting, and maintenance.

Fluke T6-1000 Applications

Electrical testing and troubleshooting
Maintenance and repair of electrical systems
Installation and commissioning of electrical systems
Inspection and testing of electrical equipment
Verification of electrical system performance
Diagnosis of electrical system faults
Testing of electrical system components

Why Buy Fluke T6-1000 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke T6-1000 Electrical Tester plus Insulated Hand Tools Starter Kit at a competitive price, with fast and reliable shipping to anywhere in the UAE.

Our team of experts is always available to provide support and advice on the Fluke T6-1000 and other electrical testing equipment.

Fluke T6-1000 Specifications

Function	Requires test leads	Range	Resolution	Accuracy¹
FieldSense ac voltage	No	1000 V	1 V	±(3 % + 3 counts) 45 Hz – 66 Hz^{[2] [3]}
FieldSense ac current	No	200.0 A	0.1 A	±(3 % + 3 counts) 45 Hz – 66 Hz
FieldSense frequency (Hz)	No	45 Hz – 66 Hz	1 Hz	±(1 % + 2 counts) ^[3]
Volts ac	Yes	1000 V	1 V	±(1.5 % + 2 counts) 45 Hz – 66 Hz
Volts dc	Yes	1000 V	1 V	±(1 % + 2 counts)
Resistance	Yes	2000 Ω	1 Ω	±(1 % + 2 counts)
	Yes	20.00 kΩ	0.01 kΩ
	Yes	100.0 kΩ	0.1 kΩ
Accuracy¹: ± ( [ % of reading] + [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC conversions are ac-coupled, RMS responding. Accuracy²: Add 3 % without an external ground connection. External ground connection required for user wearing insulated gloves, standing on an insulated ladder, or otherwise insulated from earth ground. Accuracy³: FieldSense is specified from 16 V to 100 % of range.
Calibration		1-year calibration cycle
Dimensions		61 mm x 259 mm x 43 mm
Weight		0.35 kg (0.78 lb)
Fork opening		17.8 mm
Battery Type Life		2x AA (IEC LR6) 360 hour continuous, typical is 200 hour using the FieldSense function
