Fluke TL1550EXT 25 Foot Extended Test Lead Set

Description

Fluke TL1550EXT 25 Foot Extended Test Lead Set Overview

The Fluke TL1550EXT (P/N 2032761) is a 25 ft (7.62 m) extended test lead set for Fluke high-voltage insulation testers: the 1550B, 1550C and 1555. It gives you the extra reach to test long cables, large motors, generators and switchgear while you stand at a safe distance from the equipment.

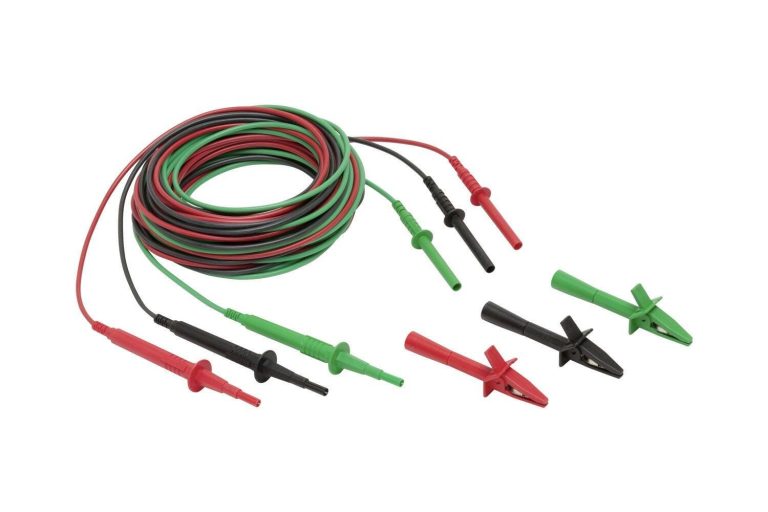

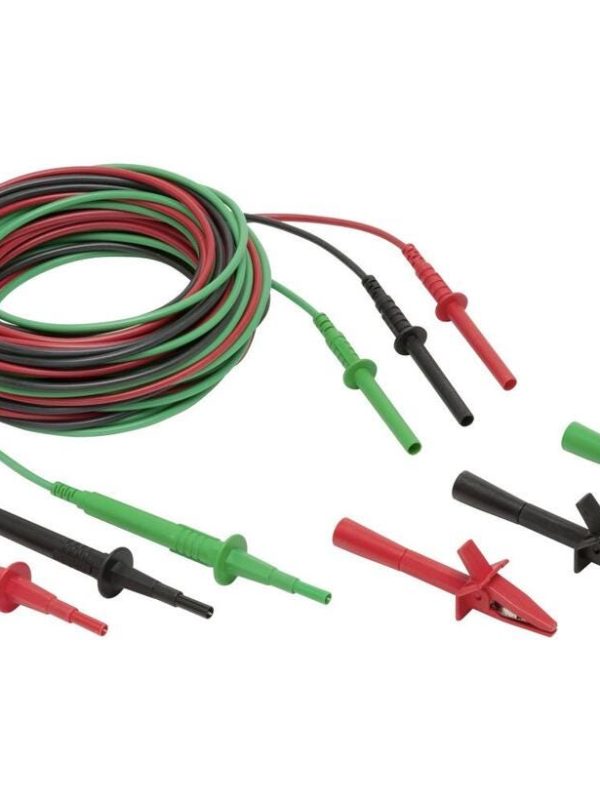

The set has low-leakage red, black and green leads with matching alligator clips (26 mm jaw opening). The green lead connects to the tester’s guard terminal for accurate high-resistance readings.

Key Features

7.62 m (25 ft) leads for long-distance insulation tests
Low-leakage leads in red, black and green (guard)
Alligator clips in matching colours, 26 mm maximum jaw opening
Probes: CAT II 1000 V, CAT III 600 V, 5 kV DC max
Clips: CAT II 1000 V, CAT III 600 V, 20 A
Optional accessory for the Fluke 1550C and 1555 (Fluke data sheet)

Fluke TL1550EXT Specifications

Fluke TL1550EXT specifications
Lead length	7.62 m (25 ft), lead only
Contents	Low-leakage test leads: red, black and green (probe); alligator clips: red, black and green
Maximum jaw opening (clips)	26 mm (1 in)
Safety rating, probes	CAT II 1000 V, CAT III 600 V, 5 kV DC max
Safety rating, alligator clips	CAT II 1000 V, CAT III 600 V, 20 A
For use with	Fluke 1550B, 1550C and 1555 insulation testers
Part number	2032761
UPC	0 95969 20907 6

Compatible Fluke Insulation Testers

Use the TL1550EXT with the Fluke 1550C FC 5 kV insulation tester kit, the Fluke 1550C FC, the Fluke 1555 FC 10 kV insulation tester kit or the Fluke 1555 FC, and with the older 1550B. For the standard-length leads, see the Fluke TL1550B test leads with alligator clips.

Typical Applications

Insulation resistance, PI and DAR tests on long power cables
Large motors, generators and transformers
Medium-voltage switchgear and bus ducts
Tests where the tester must stay away from the equipment under test

Safety Tip

The probes are rated 5 kV DC max. The Fluke 1555 can test up to 10 kV, so always keep your selected test voltage within the rating of the leads. Make sure the circuit is isolated and discharged before and after each test. Read our guide on how to choose the best insulation tester and our guide to electrical safety standards and CAT ratings.

Need help choosing the right model or a quotation? Message our team on WhatsApp or use the quote button on this page.

Browse all insulation resistance testers, more electrical test accessories or all Fluke products.

Fluke TL1550EXT FAQ

What is the Fluke TL1550EXT?

It is a 25 ft (7.62 m) extended test lead set for Fluke high-voltage insulation testers. It has red, black and green low-leakage leads with matching alligator clips.

Which testers does the TL1550EXT work with?

It is listed for the Fluke 1550B, 1550C and 1555 insulation testers. Fluke’s 1550C/1555 data sheet lists it as an optional accessory.

What is the green lead for?

The green lead is normally connected to the tester’s guard terminal. Guarding removes the effect of surface leakage current on high-resistance measurements.

What are the ratings of the leads?

The probes are rated CAT II 1000 V, CAT III 600 V and 5 kV DC max. The alligator clips are rated CAT II 1000 V, CAT III 600 V, 20 A.

Can I use the TL1550EXT at 10 kV on a Fluke 1555?

The listed probe rating is 5 kV DC max. Keep your selected test voltage within the rating of the leads, and check Fluke’s documentation before testing above 5 kV.

How wide do the clips open?

The maximum jaw opening is 26 mm (1 in).
