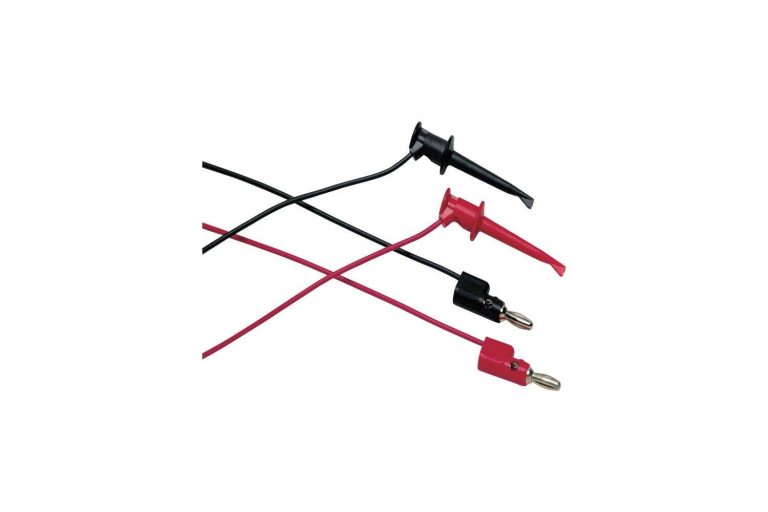

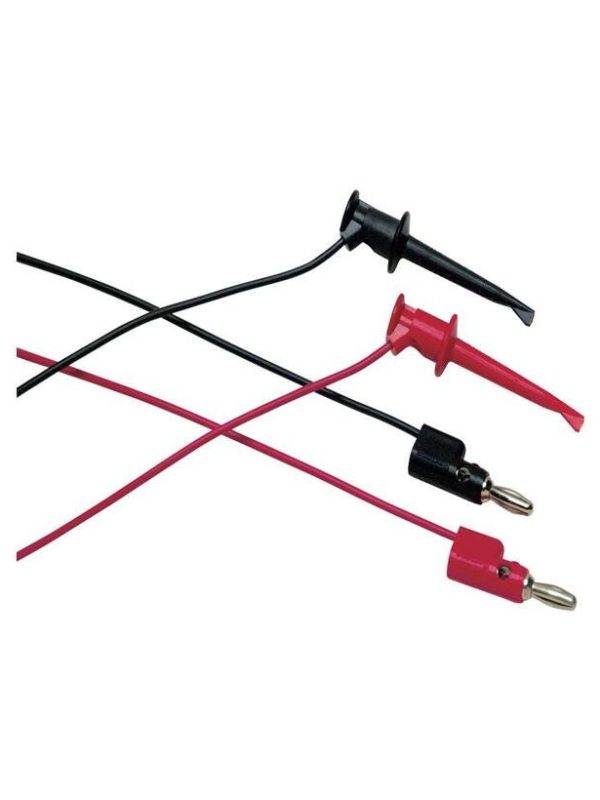

Fluke TL940 Mini-Hook Test Leads

Fluke TL940 Mini-Hook Test Leads Overview

Holding two probes on a crowded circuit board while also watching the meter is where readings slip and tips short across pins. The Fluke TL940 Mini-Hook Test Leads solve this: the spring-loaded mini-hooks clip onto component leads up to 1.5 mm in diameter and stay there, leaving both hands free. At the other end, multi-stacking 4 mm banana plugs fit standard meter inputs. The pair (red and black) uses 90 cm PVC-insulated leads.

Important: the TL940 is rated 30 V rms or 60 V DC, 3 A. It is made for low-voltage electronics, not for mains, distribution boards or motor drives.

Key Features

• Hands-free connection: mini-hooks grip component leads up to 1.5 mm diameter
• Multi-stacking 4 mm banana plugs: plug a second lead into the back of the plug to share a measurement point
• 90 cm leads with flexible PVC insulation, one red and one black
• Genuine Fluke accessory listed by Fluke as compatible with the Fluke 87V

Fluke TL940 Specifications

Who Needs the Fluke TL940?

• Electronics technicians repairing PCBs, power supplies and control boards
• Instrument technicians checking low-voltage sensor signals and 4-20 mA current loops
• Engineers and students who need leads that stay connected during long readings or logging

Typical Applications

• Clipping onto resistor, capacitor and IC legs to monitor voltage while adjusting a circuit
• Continuity and resistance checks on small terminals and jumper wires
• Leaving the meter connected to a test point during MIN/MAX recording

TL940 vs Other Fluke Test Leads

Choose the TL940 when you need to clip on to small parts. For probing fine pitch points by hand, the Fluke TL910 electronic test probes are a better fit. For larger terminals, the Fluke AC285 SureGrip alligator clips fit Fluke SureGrip leads. Fluke also offers the TL940 in the TL970 Hook and Pincer Set together with the TL950 mini-pincer and TL960 micro-hook leads. For any work on mains or industrial circuits, use leads with the right CAT rating, as explained in our guide to electrical safety standards. Browse more in our electrical test accessories range.

Fluke TL940 FAQ

Why Buy the Fluke TL940 from MME?

MME supplies genuine Fluke test leads, probes and meters in the UAE and can help you match accessories to your meter. Contact us for a quotation.
