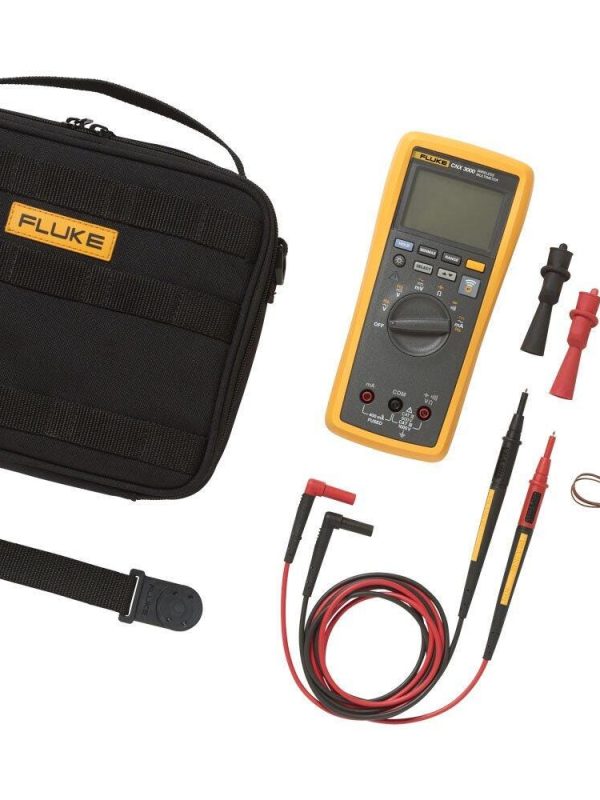

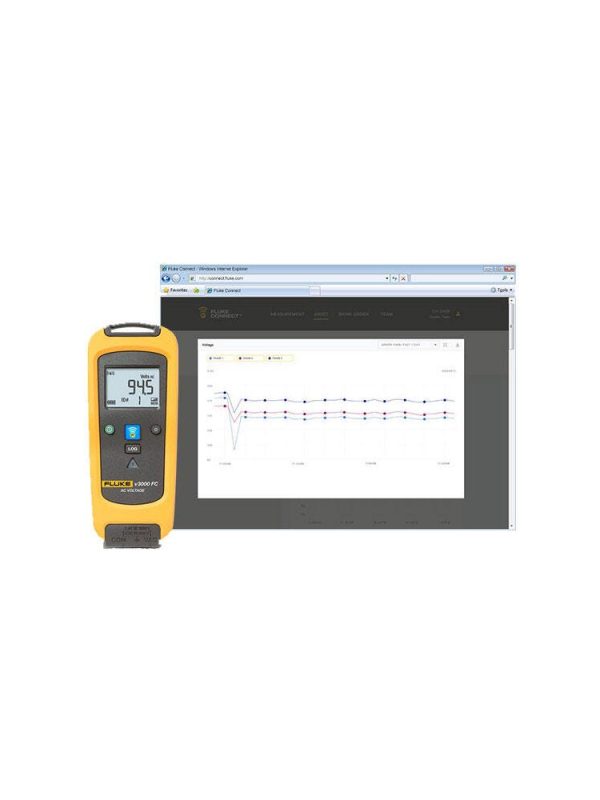

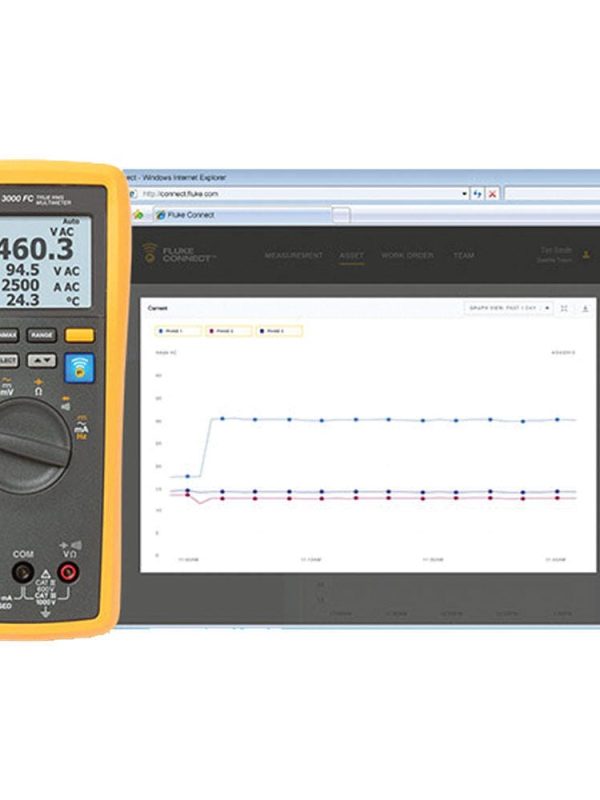

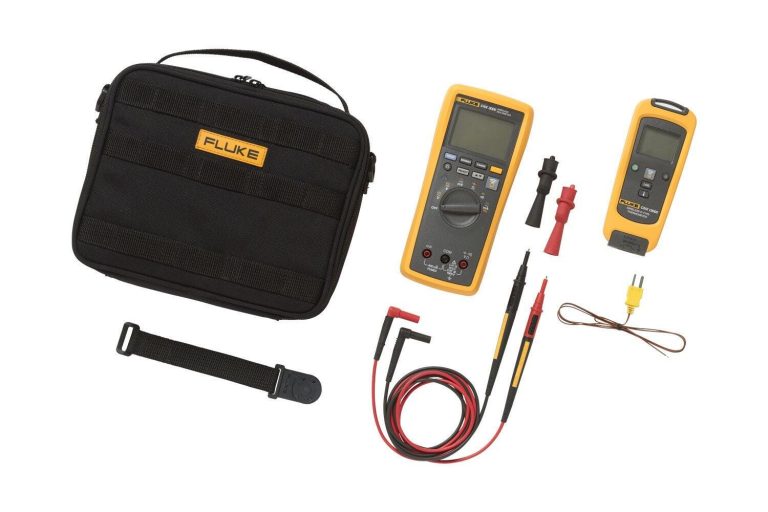

Fluke v3000 FC Wireless AC Voltage Kit

The Fluke v3000 FC Wireless AC Voltage Kit is a cutting-edge solution for technicians and engineers who require fast and accurate measurements. With its robust design and long battery life, this kit is perfect for a variety of applications.

Fluke v3000 FC Wireless AC Voltage Kit Key Features

The Fluke v3000 FC Wireless AC Voltage Kit boasts an impressive range of features, including:

• AC Voltage Range: 45 Hz to 500 Hz, 600.0 mV to 1000 V
• Resolution: 0.1 mV to 1 V
• Frequency Range: 99.99 Hz to 99.99 kHz
• Input Characteristics: Overload protection, open circuit test voltage, and fused overload protection
• Display: LCD display with update rate of 6000 counts
• Battery Life: 250 hours minimum

Who Needs the Fluke v3000 FC Wireless AC Voltage Kit?

The Fluke v3000 FC Wireless AC Voltage Kit is designed for technicians and engineers who require fast and accurate measurements in a variety of applications, including electrical testing, maintenance, and troubleshooting.

Fluke v3000 FC Wireless AC Voltage Kit Applications

• Electrical Testing: Measure AC voltage and frequency with ease
• Maintenance: Use the Fluke v3000 FC to diagnose and troubleshoot electrical issues
• Electrical Troubleshooting: Quickly and accurately measure AC voltage and frequency
• Electrical Safety: Ensure safe and accurate measurements with the Fluke v3000 FC
• Electrical Installation: Verify electrical installations with the Fluke v3000 FC
• Electrical Maintenance: Use the Fluke v3000 FC to maintain electrical systems

Why Buy Fluke v3000 FC Wireless AC Voltage Kit from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke v3000 FC Wireless AC Voltage Kit at competitive prices, along with exceptional customer service and support. Our team of experts is always available to assist you with any questions or concerns you may have.

Fluke v3000 FC Wireless AC Voltage Kit Specifications

Detailed Specifications
AC Voltage
Range 1	Resolution	Accuracy 2 3 4		Accuracy 2 3 4
		45 Hz to 500 Hz		500 Hz to 1 kHz
600.0 mV	0.1 mV	1.0% + 3		2.0% + 3
6.000 V	0.001 V
60.00 V	0.01 V
600.0 V	0.1 V
1000 V	1 V
1. All AC voltage ranges are specified from 1% of range to 100% of range. 2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V. 3. For non-sinusoidial waveforms, add ±(2% of reading + 2% full scale) typical, for crest factor up to 3. 4. Do not exceed 107 V-Hz.
DC Voltage, Continuity, Resistance, Diode Test and Capacitance
Function	Range	Resolution	Accuracy
mV	600.0 mV	0.1 mV	0.09% + 2
V	6.000 V	0.001 V	0.09% + 2
	60.00 V	0.01 V
	600.0 V	0.1 V
	1000 V	1 V	0.15% + 2
Ω	600 Ω	1 Ω	Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer.
Ω	600.0 Ω	0.1 Ω	0.5% + 2
	6.000 kΩ	0.001 kΩ	0.5% + 1
	60.00 kΩ	0.01 kΩ
	60.00 kΩ	0.1 kΩ
	600.0 kΩ	0.001 MΩ
	50.00 MΩ	0.01 MΩ	1.5% + 3
Diode test	2.000 V	0.001 V	1% + 2
µF	1000 nF	1 nF	1.2% + 2
	10.00 μF	0.01 μF
	100.0 μF	0.1 μF
	9999 μF1	1 μF	10% typical
1. In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2% + 2.
AC and DC Current
Function	Range 1	Resolution	Accuracy
mA AC (45 Hz to 1 kHz)	60.00 mA	0.01 mA	1.5% + 3
	400.0 mA 3	0.1 mA
mA DC 2	60.00 mA	0.01 mA	0.5% + 3
	400.0 mA 3	0.1 mA
1. All AC current ranges are specified from 5% of range to 100% of range. 2. Input burden voltage (typical): 400 mA input 2 mV/mA. 3. 400.0 mA accuracy specified up to 600 mA overload.
Frequency
Range	Resolution	Accuracy 1
99.99 Hz	0.01 Hz	0.1% + 1
999.9 Hz	0.1 Hz
9.999 kHz	0.001 kHz
99.99 kHz	0.01 kHz
1. Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps.
Input Characteristics
Function	Overload protection	Input impedance (nominal)	Common mode rejection ratio (1 kΩ unbalance)		Normal mode rejection
	1100 Vrms	> 10 MΩ < 100 pF	> 120 dB at DC, 50 Hz or 60 Hz		> 60 dB at 50 Hz or 60 Hz
	1100 Vrms	> 10 MΩ < 100 pF	> 60 dB, DC to 60 Hz
	1100 Vrms	> 10 MΩ < 100 pF	> 120 dB at DC, 50 Hz or 60 Hz		> 60 dB at 50 Hz or 60 Hz
Open circuit test voltage			Full scale voltage		Typical short circuit current
			To 6 MΩ	50 MΩ
	1100 Vrms	< 2.7 VDC	< 0.7 VDC	< 0.9 VDC	< 350 mA
	1100 Vrms	< 2.7 VDC	2.000 VDC		< 1.1 mA
mA Function
Overload Protection	Fused, 44/100 A, 1000 V FAST Fuse
Overload	600 mA overload for 2 minutes maximum, 10 minutes rest minimum
MIN/MAX Recording Accuracy
DC functions	The specified accuracy of the measurement function ±12 counts for changes > 350 mS in duration.
AC functions	The specified accuracy of the measurement function ±40 counts for changes > 900 mS in duration.
General Specifications
Maximum voltage between any terminal and earth ground	1000 VDC or AC rms
Ω fuse protection from A inputs	0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
Display (LCD)	Update rate		4/sec
	Volts, amps, ohms		6000 counts
	Frequency		10,000 counts
	Capacitance		1,000 counts
Battery type	Three AA Alkaline batteries, NEDA 15A IEC LR6
Battery life	250 hours minimum
RF communications	2.4 GHZ ISM Band
RF communication range	Open air, unobstructed		Up to 20 m
	Obstructed, sheetrock wall		Up to 6.5 m
	Obstructed, concrete wall, or steel electrical enclosure		Up to 3.5 m
Temperature	Operating		-10°C to 50°C
	Storage		-40°C to 60°C
Temperature coefficient	0.1 x (specified accuracy) / °C ( 28°C)
Relative humidity	0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C)
Altitude	Operating		2,000 m
	Storage		12,000 m
Electromagnetic compatibility EMI, RFI, EMC, RF	EN 61326-1:2006, EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE
Safety compliance	ANSI/ISA 61010-1 / (82.02.01)		3rd edition
	CAN/CSA-C22.2 No 61010-1-12		3rd edition
	UL 61010-1		3rd edition
	IEC/EN 61010-1		2010
Certifications	CSA, FCC, CE
Ingress Protection (IP) rating	IP54
Pollution degree	2
Size (H x W x L)	4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in)
Weight	340 g (12 oz)
Warranty	Three years
Not compatible with Fluke CNX test tools
