Fluke VPS410-X 10:1 ScopeMeter Voltage Probe

Description

Fluke VPS410-X Voltage Probe Set

The Fluke VPS410-X is a 10:1 voltage probe set for the Fluke ScopeMeter 190 Series II portable oscilloscopes. The “X” stands for the colour you choose: each set is one probe in red, blue, grey or green, so you can replace a lost or damaged probe and keep matching colours on each scope channel.

The probe has a 300 MHz bandwidth and a CAT III 1000 V / CAT IV 600 V safety rating, so you can measure safely on industrial power, drives and distribution circuits.

Colour Versions

VPS410-R: red (Fluke P/N 3894707), see VPS410-R (red)
VPS410-B: blue (P/N 3894718), see VPS410-B (blue)
VPS410-G: grey (P/N 3894729)
VPS410-V: green (P/N 3894734)

Need all four? Get the VPS410 four-colour probe set.

Specifications

Fluke VPS410 voltage probe specifications (Fluke)
Attenuation	10:1
Bandwidth	300 MHz
Input resistance	10 MΩ
Input capacitance	12 pF nominal
Compensation range	10 pF to 22 pF
Cable length	1.2 m
Safety rating (input and to ground)	CAT III 1000 V / CAT IV 600 V
Safety standards	IEC/EN 61010-031:2008, UL 61010B-031, CSA C22.2 No. 1010.2.031
Designed for	Fluke ScopeMeter 190 Series II
Identification	Black ring on the BNC connector

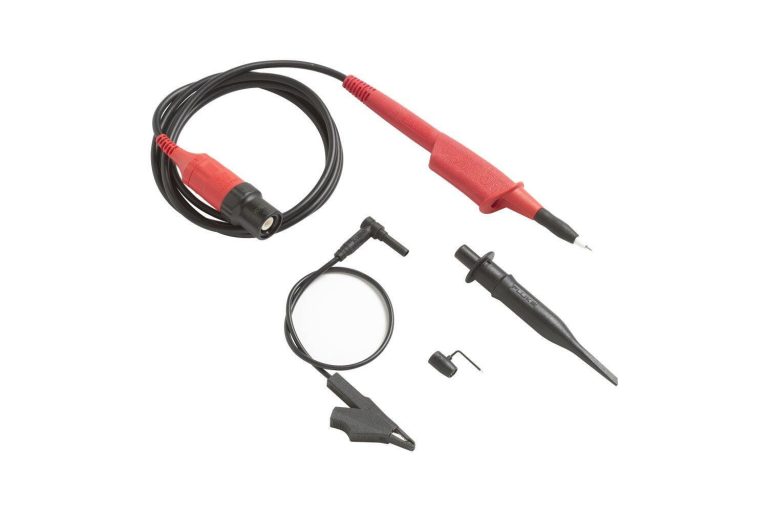

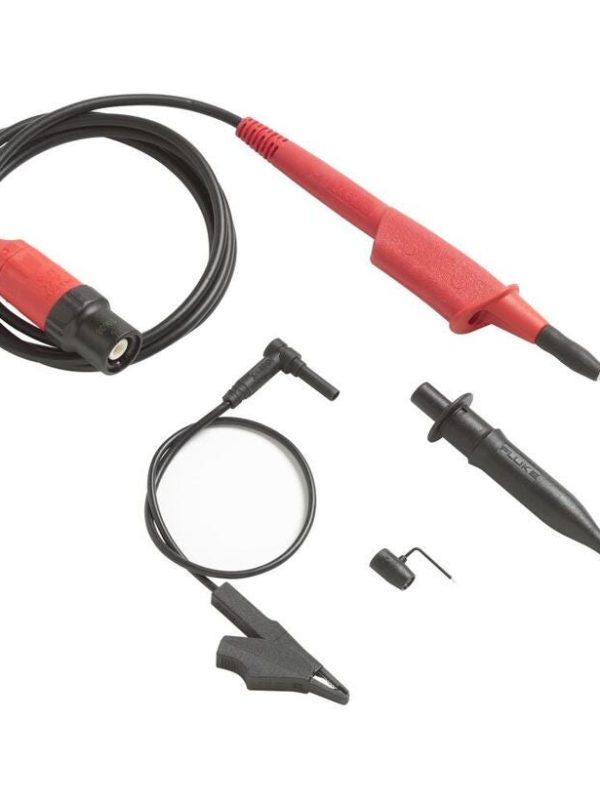

What’s in the Box

VPS410 10:1 voltage probe
Black hook clip
Probe-tip insulation sleeve
Reference (ground) lead with mini alligator clip
Ground spring

Safety tip: always fit the insulation sleeve or hook clip on the probe tip when you use the ground lead.

Which Probe Do You Need?

Fluke ScopeMeter probe comparison
Probe	Key data	Best for
VPS410	300 MHz, 12 pF, CAT III 1000 V / CAT IV 600 V, black BNC ring	ScopeMeter 190 Series II (up to 200 MHz models)
VPS410-II	500 MHz, 11.5 pF, coloured BNC ring	ScopeMeter 190-50x (500 MHz)
VPS510	Compact probe for electronics work	Low-voltage electronics

For the Fluke 190-504 (500 MHz) use the VPS410-II. For low-voltage electronics, the VPS510 compact probe is smaller. Compatible scopes include the Fluke 190-102/S ScopeMeter and Fluke 190-204 ScopeMeter. Browse more electrical test accessories and Fluke products, or read our oscilloscope review.

Need help choosing the right model or a quotation? Message our team on WhatsApp or use the quote button on this page.

Fluke VPS410-X FAQ

Which ScopeMeter is the Fluke VPS410 for?

It is designed for the Fluke ScopeMeter 190 Series II. It can also be used on the 190C and earlier models, where the lowest rating of the probe or instrument applies.

What is the difference between VPS410 and VPS410-II?

The VPS410 is a 300 MHz probe with 12 pF input capacitance. The VPS410-II is a 500 MHz, 11.5 pF probe for the 500 MHz ScopeMeter 190-50x models and has a coloured ring on the BNC; the VPS410 has a black ring.

What is the safety rating of the VPS410?

CAT III 1000 V and CAT IV 600 V, from the input and to ground, to IEC/EN 61010-031.

What is included with each VPS410 probe?

The probe, a black hook clip, a probe-tip insulation sleeve, a reference (ground) lead with mini alligator clip and a ground spring.

Do I need to compensate the probe?

Yes. Adjust the probe compensation when you first connect it to an input. The compensation range is 10 pF to 22 pF.
