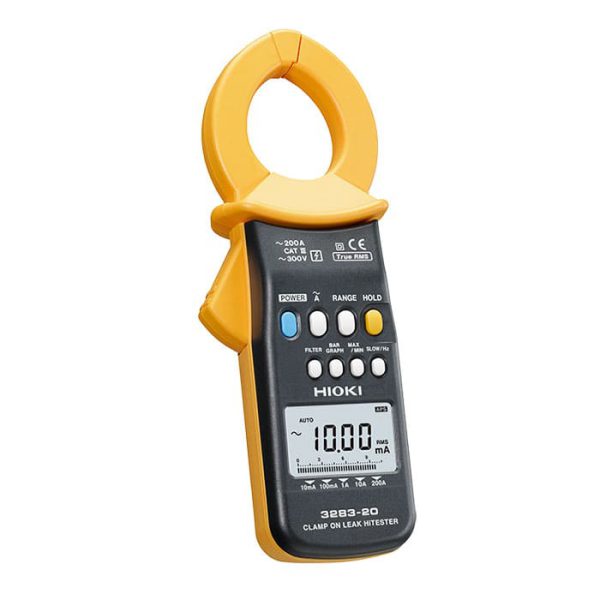

HIOKI 3283 CLAMP ON LEAK HiTESTER

HIOKI 3283 CLAMP ON LEAK HiTESTER

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The Hioki-3283 series are leakage current handheld clamp meters with a 10 mA to 200 A range and 10 μA resolution. hioki3283 has output capabilities for advanced monitoring on recording equipment, and Model 3283-20 complies with EN 61010-2-032:2012 Type A standards to measure uninsulated hazardous live conductors such as busbars.

To protect users during measurements, the Hioki 3283 has a comprehensive set of safety features. 3283 hioki has overload safety features that protect both the meter and the operator from potentially dangerous circumstances. hioki hitester 3283 clamp also complies with industrial rules and meets the appropriate safety standards, making it a solid option for professionals working in tough conditions.

To get information about the Hioki 3283 price in MME, contact our experts. We offer various models of Hioki multimeters and clamp meters on the MME website, including the 3288-20, and dt4282,…

HIOKI CLAMP ON LEAK HiTESTER 3283 Key Features

• Measure leak current using highly sensitive 10μA resolution (at 10.00 mA range)
• Indicate 50/60 Hz leak current components with the filtering function
• Monitor leak current conditions in combination with a Memory HiCorder (monitor output, Model 3283 only)
• 3283-20: EN 61010-2-032:2012
  Type A to measure uninsulated hazardous live conductors such as busbars

HIOKI CLAMP ON LEAK HiTESTER 3283 Specifications

• AC Current range:10.00 m/100.0 m/1.000/10.00/200.0 A, 5 ranges, (40 Hz to 2 kHz, True RMS), Basic accuracy: ±1.0 % rdg. ±5 dgt., Guaranteed accuracy: from 1.00 mA
• AC Voltage range: N/A
• Frequency range:30.0 Hz to 1000 Hz, 2 ranges, Basic accuracy: ±0.3 % rdg. ±1 dgt.
• Crest factor:2.5 or less (1.5 at 200 A range)
• Filter function: Cut off frequency at filter ON: 180 Hz (-3dB)
• Other functions: Max./ Min./ Average value record, Data hold, Auto power off
• Display: LCD, max. 2000 dgt., Display refresh rate: 4 times/s (Fast), 1 time/3s (Slow), 4 times/s (bar graph)
• Power supply:6LR61 (Stacked alkaline battery) ×1, or 6F22 (Stacked manganese battery), Continuous use: 40 hours (using 6F22),
  AC adapter 9445-02/-03
• Accessories:Carrying case 9399 ×1, Hand strap ×1, Stacked manganese battery (6F22) ×1, Instruction manual ×1,hioki 3283 manual
