Description

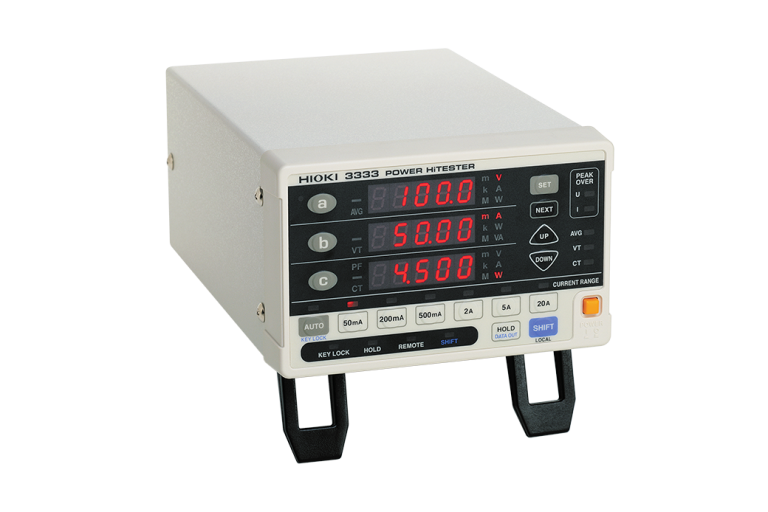

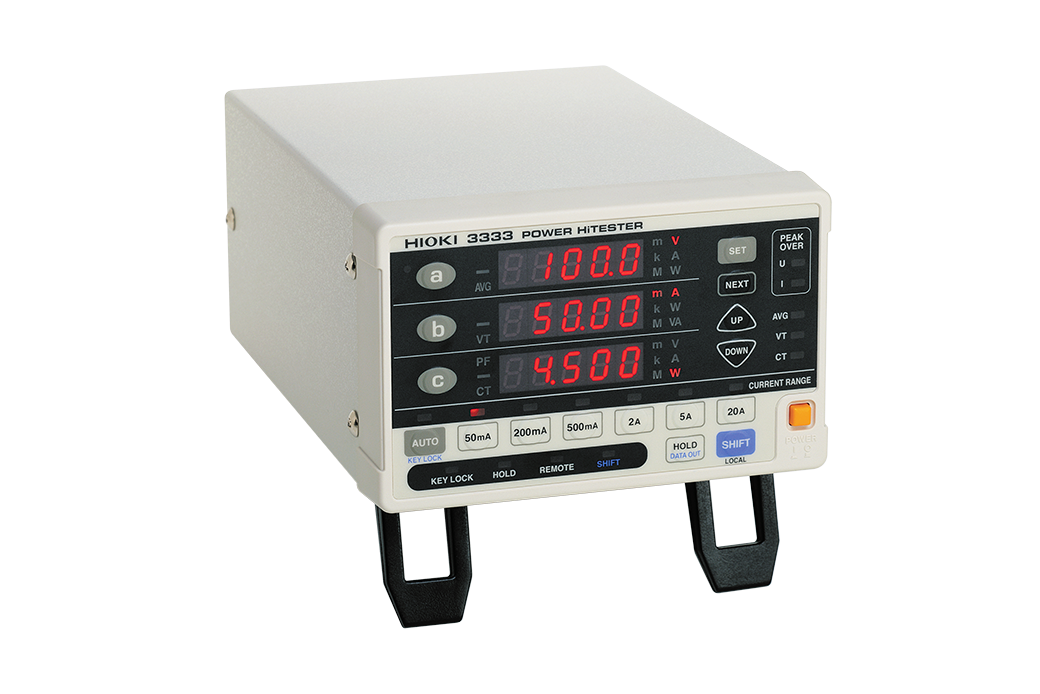

The Hioki 3333 delivers accurate, repeatable measurements for professionals who need trustworthy Hioki performance. Available in the UAE from mme-ae.com, it helps engineers and technicians work faster with clear, manufacturer-backed specifications.

Choose the Hioki 3333 when you need official Hioki quality with local supply support from MME / Mohammad Mahdi Electronics.

Hioki 3333 Key Features

These highlights come from Hioki’s published product data for the 3333 series.

Ideal for replacing portable instruments, ±0.1% basic accuracy
Extended period of guaranteed accuracy of 3 years
50mA to 20A AC current range (300 V Max., Accuracy guaranteed up to 30 A)
Print out with the 9442 and RS-232C interface

Who Needs the Hioki 3333?

Electronics manufacturers, test engineers, and calibration teams use the Hioki 3333 for component verification and production screening. Buyers who need UAE availability can request pricing through MME.

Maintenance and R&D groups also rely on this instrument when documentation, accuracy, and supportability matter.

Hioki 3333 Applications

Typical use cases include:

Production and quality inspection lines
Electronics design and R&D labs
Incoming inspection and sorting
Maintenance and troubleshooting of electronic components

Why Buy Hioki 3333 from MME?

Browse our power quality analyzers. Read more in our best power quality analyzers.

Order from mme-ae.com for UAE supply of genuine Hioki instruments with clear product data.

Mohammad Mahdi Electronics / MME helps you confirm availability and the right configuration before you buy.

Hioki 3333 Specifications

Measurement lines	Single-phase 2-wires
Measurement items	Voltage, Current, Active power, Apparent power, Power factor
Measurement range	[Voltage] 200 V AC (300 V Max.) [Current] 50/ 200/ 500 mA, 2/ 5/ 20 A AC (30 A Max.) [Power] 10.000 W to 4.000 kW (combination of voltage and current ranges)
Input resistance (50/60 Hz)	[Voltage] 2.4 MΩ, [Current] 7 mΩ or less (direct input)
Basic accuracy	[Guaranteed for 1 year, Voltage, Current, Active power] ±0.1 % rdg. ±0.1 % f.s. (45 Hz to 66 Hz, input current 20 A or less) [Guaranteed for 3 years, Voltage, Current, Active power] ±0.1 % rdg. ±0.2 % f.s. (45 Hz to 66 Hz, input current 20 A or less)
Display refresh rate	5 times/s
Frequency characteristics	45 Hz to 5 kHz
D/A output	3 channels outputs simultaneously for voltage, current, active power +2 V DC f.s.
Functions	Scaling (VT, CT ratio settings), Average function
Interfaces	RS-232C standard, GP-IB (Model 3333-01 only)
Power supply	100 to 240 V AC, 50/60 Hz, 20 VA max.
Dimensions and mass	160 mm (6.30 in) W × 100 mm (3.94 in) H × 227 mm (8.94 in) D, 1.9 kg (67.0 oz)
Included accessories	Instruction manual ×1, Power cord ×1
