Description

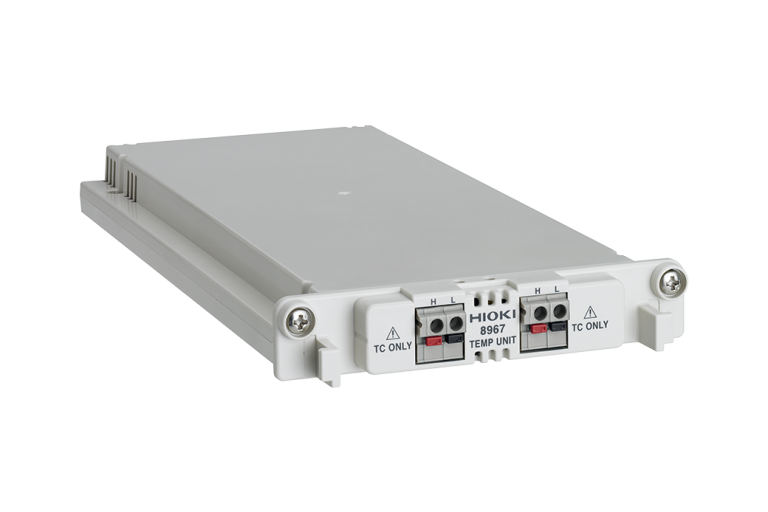

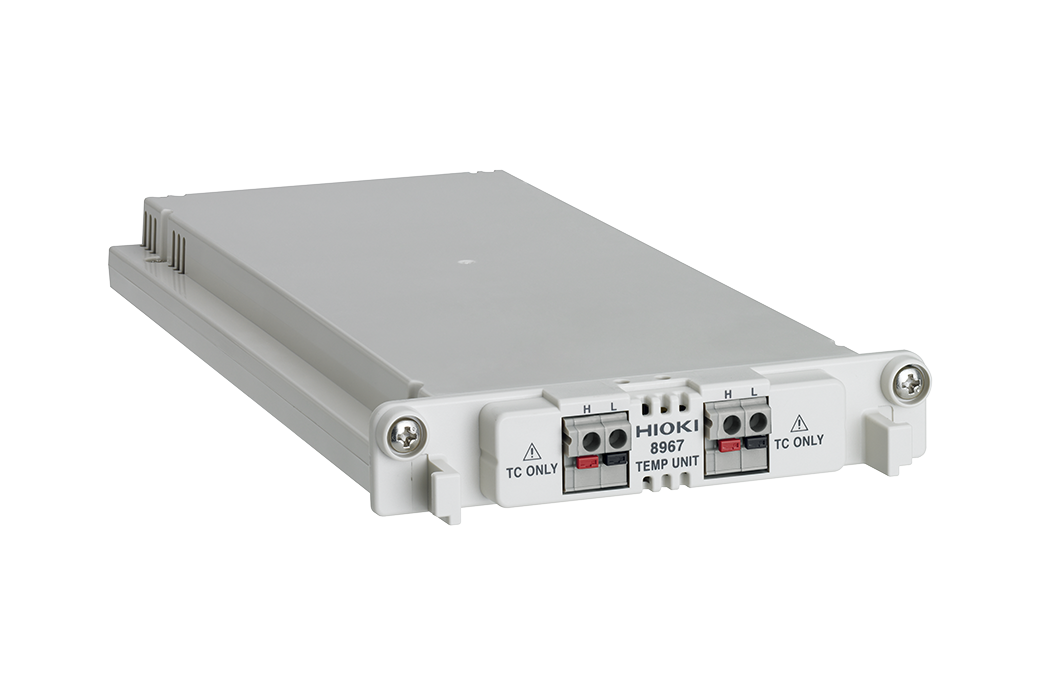

Welcome to the Hioki 8967 TEMP UNIT, a high-precision temperature measurement module designed for use with the Memory HiCorder. This module is ideal for a variety of applications, including recorder instruments and measurement guides.

The Hioki 8967 TEMP UNIT features a high 16-bit A/D resolution, isolated 2 channel input, and a max. rated voltage to ground of 300 V AC, DC. It also offers measurement functions, including number of channels: 2, for temperature measurement with thermocouple, and input connectors: thermocouple input: plug-in connector.

Hioki 8967 Key Features

The Hioki 8967 TEMP UNIT has several key features that make it an ideal choice for temperature measurement applications.

High 16-bit A/D resolution
Isolated 2 channel input
Max. rated voltage to ground: 300 V AC, DC
Measurement functions: Number of channels: 2, for temperature measurement with thermocouple
Input connectors: Thermocouple input: plug-in connector
Temperature measurement range: 10 °C/div (-100 °C to 200 °C), 50 °C/div (-200 °C to 1000 °C), 100 °C/div (-200 °C to 2000 °C)
Measurement resolution: 1/1000 of measurement range (using 16-bit A/D conversion and when installed in the 8847)

Who Needs the Hioki 8967?

The Hioki 8967 TEMP UNIT is designed for use in a variety of applications, including Hioki products and MME products.

This module is ideal for use in industries such as manufacturing, construction, and research, where accurate temperature measurement is critical.

It is also suitable for use in laboratories, testing facilities, and other environments where precise temperature control is required.

Hioki 8967 Applications

The Hioki 8967 TEMP UNIT has a wide range of applications, including:

Temperature measurement in industrial processes
Thermocouple measurement in laboratory settings
Temperature monitoring in construction and manufacturing
Research and development applications

Why Buy Hioki 8967 from MME?

At MME, we offer the Hioki 8967 TEMP UNIT at competitive prices, with fast shipping and excellent customer service.

Our team of experts is available to answer any questions you may have about the Hioki 8967 TEMP UNIT, and we offer a range of accessories and support services to ensure that you get the most out of your purchase.

Hioki 8967 Specifications

Measurement functions	Number of channels: 2, for temperature measurement with thermocouple (voltage measurement not available)
Input connectors	Thermocouple input: plug-in connector, Recommended wire diameter: single-wire, 0.14 to 1.5 mm2, braided wire 0.14 to 1.0 mm2 (conductor wire diameter min. 0.18 mm), AWG 26 to 16 Input impedance: min. 5 MΩ (with line fault detection ON/OFF), Max. rated voltage to earth: 300 V AC, DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage)
Temperature measurement range Note: Upper and lower limit values depend on the thermocouple	10 °C/div (-100 °C to 200 °C), 50 °C/div (-200 °C to 1000 °C), 100 °C/div (-200 °C to 2000 °C), 3 ranges, full scale: 20 div, Measurement resolution: 1/1000 of measurement range (using 16-bit A/D conversion and when installed in the 8847)
Thermocouple range (JIS C 1602-1995) (ASTM E-988-96)	K: -200 to 1350 °C, J: -200 to 1100 °C, E: -200 to 800 °C, T: -200 to 400 °C, N: -200 to 1300 °C, R: 0 to 1700 °C, S: 0 to 1700 °C, B: 400 to 1800 °C, W (WRe5-26): 0 to 2000 °C, Reference junction compensation: internal/ external (switchable), Line fault detection ON/OFF possible
Data refresh rate	3 methods, Fast: 1.2 ms (digital filter OFF), Normal: 100 ms (digital filter 50/60 Hz), Slow: 500 ms (digital filter 10Hz)
Measurement accuracy	Thermocouple K, J, E, T, N: ±0.1 % of full scale ±1 °C (±0.1 % of full scale ±2 °C at -200 °C to 0 °C), Thermocouple R, S, W: ±0.1 % of full scale ±3.5 °C (at 0 °C to 400 °C or less), ±0.1 % of full scale ±3 °C (at 400 °C or more) Thermocouple B: ±0.1 % of full scale ±3 °C (at 400 °C or more), Reference junction compensation accuracy: ±1.5 °C (added to measurement accuracy with internal reference junction compensation)
Dimensions and mass	106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 204.5 mm (8.05 in) D, 240 g (8.5 oz)
Included accessories	Ferrite clamp × 2
