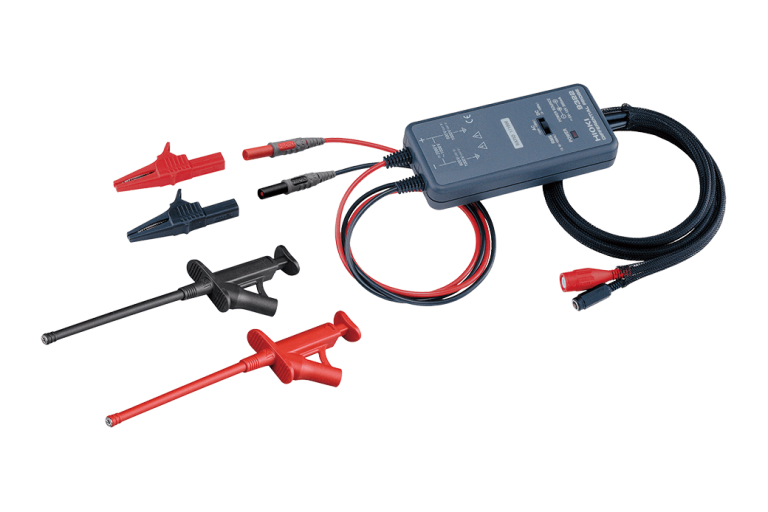

Hioki 9322 Differential Probe — Electrical Measurement Instrument

The Hioki 9322 Differential Probe is a versatile electrical measurement instrument designed for a wide range of applications. With its ability to measure DC, AC, and RMS voltages, this probe is an essential tool for engineers and technicians working in fields such as electrical safety, power quality, and industrial automation.

At mme-ae, we understand the importance of accurate and reliable measurements. That’s why we offer the Hioki 9322 Differential Probe as part of our extensive range of electrical measurement instruments. Whether you’re working on a new project or upgrading your existing equipment, our team of experts is here to help you find the right solution for your needs.

Hioki 9322 Key Features

The Hioki 9322 Differential Probe features a range of advanced measurement functions, including:

• DC mode: Waveform monitor output, DC to 10 MHz ±3 dB
• AC mode: Detection of power line surge noise, 1 kHz to 10 MHz ±3 dB (Low frequency cut-off frequency 1 kHz ± 300 Hz)
• RMS mode: Rectified RMS output of DC and AC voltages, DC, 40 Hz to 100 kHz
• Response speed: 200 ms or less (400 V AC)
• Max. allowable input: 2000 V DC, 1000 V AC
• Max. rated voltage to earth: When using the Grabber Clip L9243: 1000 V AC/DC (CAT II), When using alligator clip: 1000 V AC/DC (CAT II), 600 V AC/DC (CAT III)
• Output: Voltage division ratio: 1/1000, BNC terminal (DC/AC/RMS 3-mode selectable output)
• DC amplitude accuracy: ±1 % f.s. (1000 V DC or less), ±3 % f.s. (2000 V DC or less) (f.s.=2000 V DC)
• RMS amplitude accuracy: ±1 % f.s. (DC, 40 Hz to 1 kHz), ±4 % f.s. (1 kHz to 100 kHz) (f.s.=1000 VAC)
• Input resistance, capacity: H-L: 9 MΩ, approx 10 pF (C at 100 kHz), H-case, L-case: 4.5 MΩ, approx 20 pF (C at 100 kHz)
• Power supply: +5 V to +12 V, less than 300 mA (DC jack OD 5.5 mm [0.22 in.], ID 2.1 mm [0.08 in.])
• Dimensions and mass: 70 mm (2.76 in.)W × 150 mm (5.91 in.)H × 25 mm (0.98 in.)D, 285 g (10.1 oz.), Cord length: Input 46 cm (1.51 ft.), Output 1.3 m (4.27 ft.)
• Included accessories: Alligator clips ×1 (red/black set), Grabber Clip L9243 ×1 (red/black set), Carrying case C0203 ×1, Instruction manual ×1

Who Needs the Hioki 9322?

The Hioki 9322 Differential Probe is designed for a wide range of applications, including:

Electrical safety testing and certification

Power quality analysis and monitoring

Industrial automation and control

Research and development

Education and training

At Mohammad Mahdi Electronics, we understand the importance of accurate and reliable measurements. That’s why we offer the Hioki 9322 Differential Probe as part of our extensive range of electrical measurement instruments.

Hioki 9322 Applications

The Hioki 9322 Differential Probe is suitable for a wide range of applications, including:

Why Buy Hioki 9322 from mme-ae?

At mme-ae, we offer a wide range of electrical measurement instruments, including the Hioki 9322 Differential Probe. Our team of experts is here to help you find the right solution for your needs. Whether you’re working on a new project or upgrading your existing equipment, we have the knowledge and expertise to ensure that you get the best results.

For more information on the Hioki 9322 Differential Probe, please visit our recorders and dataloggers category. You can also read our measurement guides for more information on electrical safety standards.

Hioki 9322 Specifications
