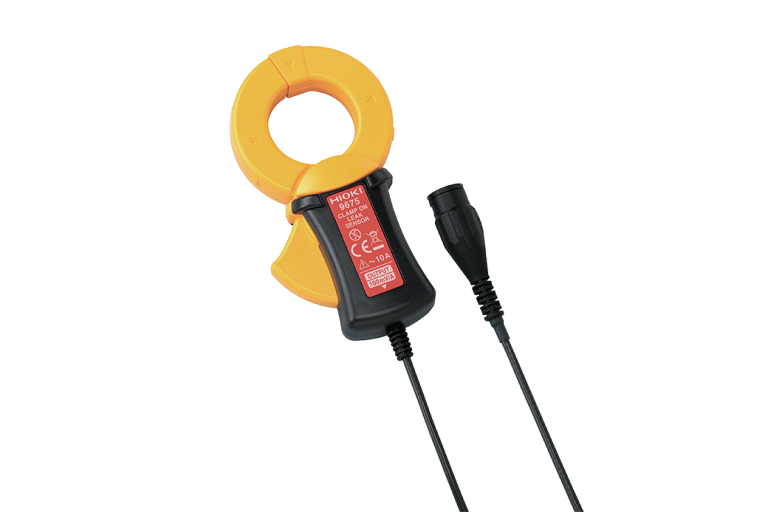

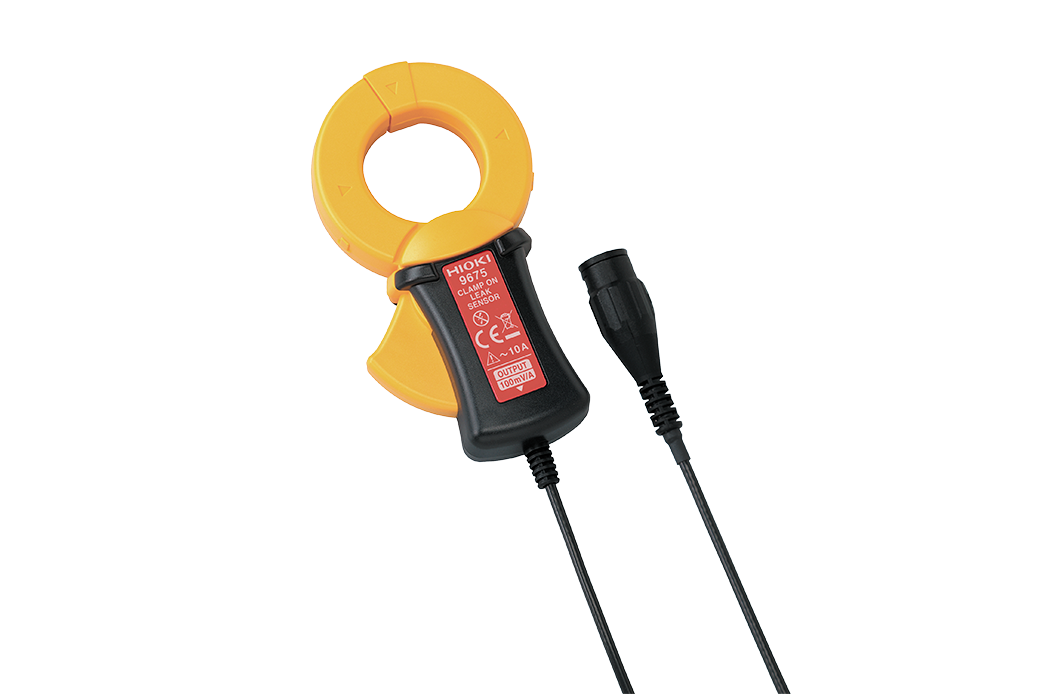

Hioki 9675 Clamp On Leak Sensor

At Mohammad Mahdi Electronics, we offer the Hioki 9675 Clamp On Leak Sensor, a reliable and accurate tool for measuring leak current in electrical systems. This device is designed to provide precise readings, making it an essential tool for electricians and technicians.

The Hioki 9675 features a max. allowable input of 10 A of continuous input, making it suitable for a wide range of applications. Its rated output current is AC 100 mV/A, ensuring accurate and reliable measurements.

Hioki 9675 Key Features

The Hioki 9675 Clamp On Leak Sensor offers several key features that make it an ideal choice for professionals.

• Rated primary current: AC 10 A (for leak current measurement, 50/60 Hz)
• Max. allowable input (45-66 Hz): Max. 10 A of continuous input
• Rated output current: AC 100 mV/A
• Amplitude accuracy (45-66 Hz): ±1.0 % rdg. ±0.005 % f.s.
• Phase accuracy: ±5 ° (at 50 Hz or 60 Hz)
• Frequency characteristics: 40 Hz to 5 kHz: ± 5% (Add to amplitude accuracy)
• Measurable conductor: Insulated conductor
• Core diameter: φ 30 mm (1.18 in)

Who Needs the Hioki 9675?

The Hioki 9675 Clamp On Leak Sensor is designed for professionals who need to measure leak current in electrical systems. This includes electricians, technicians, and engineers who work in industries such as construction, manufacturing, and maintenance.

The device is also suitable for use in a variety of applications, including current accessories and clamp meters for electricians.

Hioki 9675 Applications

The Hioki 9675 Clamp On Leak Sensor can be used in a variety of applications, including:

• Measuring leak current in electrical systems
• Testing and troubleshooting electrical circuits
• Measuring current in insulated conductors

Why Buy Hioki 9675 from MME?

At Mohammad Mahdi Electronics, we offer the Hioki 9675 Clamp On Leak Sensor at a competitive price, along with excellent customer service and support. We also offer a wide range of Hioki instruments and Hioki products for professionals.

Whether you’re looking for a reliable and accurate tool for measuring leak current or a wide range of current accessories, we have you covered. Contact us today to learn more about the Hioki 9675 Clamp On Leak Sensor and how it can benefit your business.

Hioki 9675 Specifications
