Description

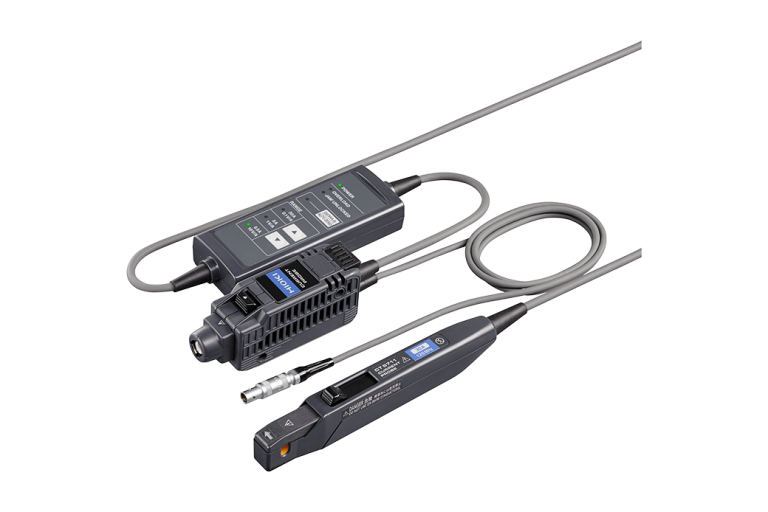

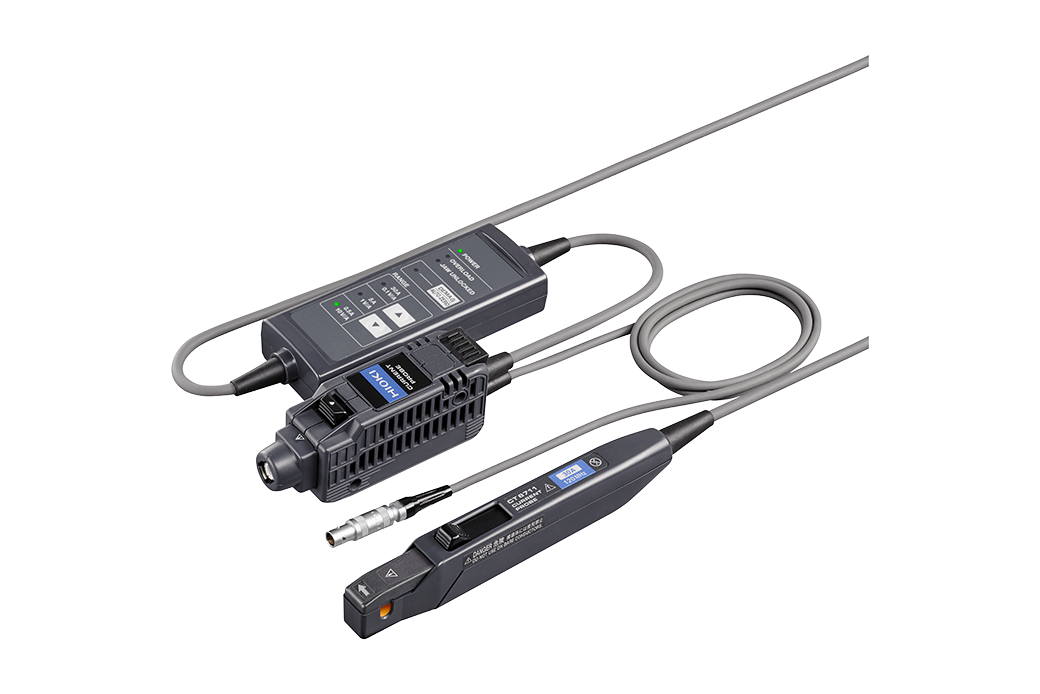

At Mohammad Mahdi Electronics, we offer the Hioki CT6711 CURRENT PROBE for precise current measurements. This probe is designed for use in a variety of applications, including electrical and electronics testing.

Whether you’re working with high-voltage or low-voltage systems, the Hioki CT6711 CURRENT PROBE provides accurate and reliable measurements. Its compact design and ease of use make it an ideal choice for professionals and hobbyists alike.

Hioki CT6711 CURRENT PROBE Key Features

The Hioki CT6711 CURRENT PROBE features a wide range of specifications, including:

Frequency bandwidth: DC to 120 MHz (-3 dB)
Rise time: 2.9 ns or shorter
Delay time (Typical): 30 A range: 12 ns, 5 A range: 12 ns, 0.5 A range: 13 ns
Noise level: 75 μA rms max (at 0.5 A range, using 20 MHz band measuring instrument)
Max. rated current: 30 A range: 30 A rms, 5 A range: 5 A rms, 0.5 A range: 0.5 A rms
Max. allowable peak current: 30 A range: ±50 A peak, 5 A range: ± 7.5 A peak, 0.5 A range: ± 0.75 A peak
Amplitude accuracy: 30 A range: ±3.0% rdg. ±1 mV, 5 A range: ±3.0% rdg. ±1 mV, 0.5 A range: ±3.0% rdg. ±10 mV
Output rate: 30 A range: 0.1 V/A, 5 A range: 1 V/A, 0.5 A range: 10 V/A

Who Needs the Hioki CT6711?

The Hioki CT6711 CURRENT PROBE is designed for use in a variety of applications, including:

Electrical and electronics testing

High-voltage and low-voltage system testing

Research and development

Quality control

Manufacturing

Hioki CT6711 CURRENT PROBE Applications

The Hioki CT6711 CURRENT PROBE is suitable for use in a variety of applications, including:

Electrical and electronics testing

High-voltage and low-voltage system testing

Research and development

Quality control

Manufacturing

Why Buy Hioki CT6711 CURRENT PROBE from mme-ae?

Browse our current accessories. Read more in our top clamp meters for electricians.

At mme-ae, we offer the Hioki CT6711 CURRENT PROBE at a competitive price. Our team of experts is available to provide technical support and assistance with any questions or concerns you may have.

We also offer a range of accessories and replacement parts for the Hioki CT6711 CURRENT PROBE, including:

Instruction manual

Carrying case

Hioki CT6711 CURRENT PROBE Specifications

Frequency bandwidth	DC to 120 MHz (-3 dB)
Rise time	2.9 ns or shorter
Delay time (Typical)	30 A range: 12 ns, 5 A range: 12 ns, 0.5 A range: 13 ns (Delay time relative to rising waveform of input signal 1 ns)
Noise level	75 μA rms max (at 0.5 A range, using 20 MHz band measuring instrument)
Max. rated current	30 A range: 30 A rms, 5 A range: 5 A rms, 0.5 A range: 0.5 A rms (DC, and sine wave, requires derating at frequency)
Max. allowable peak current	30 A range: ±50 A peak (within the input limit time 2 s) 5 A range: ± 7.5 A peak, 0.5 A range: ± 0.75 A peak (< 10 MHz), ±0.3 A peak (≥ 10 MHz)
Amplitude accuracy	30 A range: ±3.0% rdg. ±1 mV, (Typical) ±1.0% rdg. ±1 mV (≤ 10 Arms, DC, 45 to 66 Hz sine wave, within the maximum peak current of each range) 5 A range: ±3.0% rdg. ±1 mV, (Typical) ±1.0% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, within the maximum peak current of each range) 0.5 A range: ±3.0% rdg. ±10 mV, (Typical) ±1.0% rdg. ±10 mV (DC, 45 to 66 Hz sine wave, within the maximum peak current of each range)
Output rate	30 A range: 0.1 V/A, 5 A range: 1 V/A, 0.5 A range: 10 V/A, (The output of this probe is internally terminated)
Measurable conductors	φ 5 mm (0.20 in), Insulated conductor
Power supply	Supplied from Power Supply 3269, Probe Power Unit Z5021
Cable length	Sensor cable (between relay box and sensor): 1.5 m (4.92 ft) Power cable: 1.0 m (3.28 ft) (Power plug: FFA.0S.304.CLAC37Y / LEMO inc.)
Dimensions and mass	Sensor: 155 mm (6.10 in)W × 18 mm (0.71 in)H × 26 mm (1.02 in)D, Relay box section: 45 mm (1.77 in)W × 120 mm (4.72 in)H × 25 mm (0.98 in)D Terminator section: 29 mm (1.14 in)W × 83 mm (3.27 in)H × 40 mm (1.57 in)D mm, 370 g (13.1 oz)
Included accessories	Instruction manual ×1, Carrying case ×1
