Description

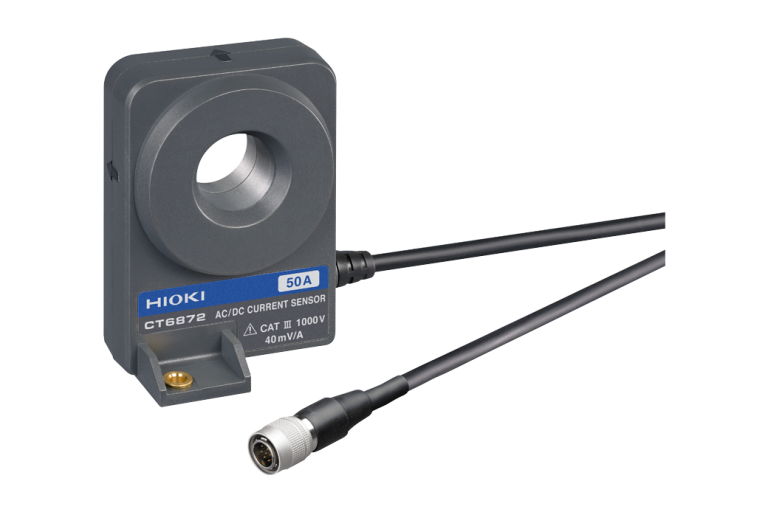

At Mohammad Mahdi Electronics, we offer the Hioki CT6872 AC/DC Current Sensor, a precision measurement tool designed for electricians and professionals in the electrical industry. This sensor is ideal for measuring AC and DC currents in a variety of applications, including power distribution systems, electrical panels, and more.

The Hioki CT6872 features a high accuracy rating, with a basic accuracy of ±0.03% rdg. ±0.002% f.s. for DC measurements. It also has a high frequency bandwidth, with an amplitude range of DC to 10 MHz and a phase range of DC to 1 MHz.

Hioki CT6872 Key Features

The Hioki CT6872 has several key features that make it an ideal choice for electricians and professionals in the electrical industry. Some of its key features include:

Rated current: 50 A AC/DC
Max. allowable input: ±150 A peak (design value) allowed at 40°C or less for 20 ms or less
Frequency bandwidth: DC to 10 MHz (amplitude), DC to 1 MHz (phase)
Basic accuracy: DC (±0.03% rdg. ±0.002% f.s., no phase specification)
Output voltage rate: 40 mV/A rated
Max. rated voltage to earth: 1000 V CAT III
Core diameter: φ 24 mm (0.94 in)

Who Needs the Hioki CT6872?

The Hioki CT6872 is designed for electricians and professionals in the electrical industry who need a precision measurement tool for measuring AC and DC currents. It is ideal for use in a variety of applications, including power distribution systems, electrical panels, and more.

The Hioki CT6872 is also suitable for use in a variety of industries, including electrical contracting, electrical engineering, and power generation.

At MME, we understand the importance of precision measurement in the electrical industry. That’s why we offer the Hioki CT6872 as part of our range of electrical measurement tools.

Hioki CT6872 Applications

The Hioki CT6872 has a wide range of applications in the electrical industry, including:

Power distribution systems
Electrical panels
Power generation
Electrical contracting
Electrical engineering

Why Buy Hioki CT6872 from Mohammad Mahdi Electronics?

Browse our current accessories. Read more in our top clamp meters for electricians.

At Mohammad Mahdi Electronics, we offer the Hioki CT6872 as part of our range of electrical measurement tools. We understand the importance of precision measurement in the electrical industry, and we are committed to providing our customers with the best possible products and service.

Our Hioki CT6872 is designed to meet the needs of electricians and professionals in the electrical industry, and we are confident that it will provide you with the precision measurement you need to get the job done.

Hioki CT6872 Specifications

Rated current	50 A AC/DC
Max. allowable input	Within the derating range, up to ±150 A peak (design value) allowed at 40°C or less for 20 ms or less
Frequency bandwidth	Amplitude: DC to 10 MHz Phase: DC to 1 MHz
Basic accuracy	DC (±0.03% rdg. ±0.002% f.s., no phase specification) 45 Hz ≤ f ≤ 66 Hz (±0.03% rdg. ±0.007% f.s., ±0.05°) Specified up to 1 MHz
Output voltage rate	40 mV/A rated (This device outputs AC+DC voltage via the Sensor Unit)
Max. rated voltage to earth	1000 V CAT III
Core diameter	φ 24 mm (0.94 in)
Operating temperature, humidity	-40°C to +85°C (-40°F to 185°F), 80% RH or less (with no condensation)
Power supply	Power suppled via the Power Analyzer PW8001, PW6001, PW3390, Sensor Unit CT9555, CT9556, CT9557, or 3CH CURRENT UNIT U8977
Max. rated power	4 VA max. (at 50 A/55 Hz, ±12 V power requirement)
Dimensions and mass	70 mm (2.76 in)W × 100 mm (3.94 in)H × 53 mm (2.09 in)D, CT6872: 370 g (13.1 oz), cable length: 3 m (9.84 ft), CT6872-01: 690g (24.3 oz), cable length 10 m (32.81 ft)
Included accessories	Instruction Manual ×1, Mark bands ×6, Operating Precautions ×1
