Description

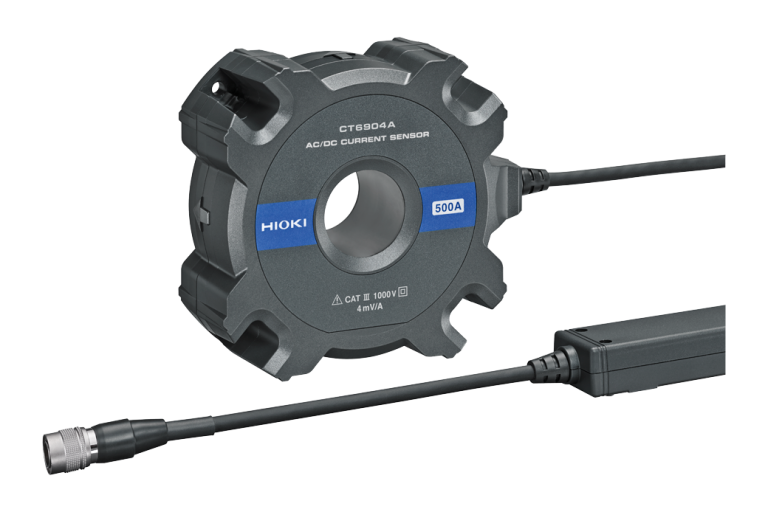

At Mohammad Mahdi Electronics, we offer the Hioki CT6904A AC/DC Current Sensor for precise and accurate measurements in various applications. This high-accuracy clamp meter accessory is designed to provide reliable results, even in challenging environments.

The CT6904A features a wide frequency bandwidth of DC to 4 MHz, making it suitable for a range of applications, including electrical engineering, research, and development. Its compact design and lightweight construction make it easy to handle and transport.

Hioki CT6904A Key Features

The Hioki CT6904A offers several key features that make it an ideal choice for professionals and hobbyists alike. Some of its key features include:

Rated current: 500 A AC/DC
Max. allowable input: Within the derating range, up to ±1000 A peak is allowable if within 20 ms.
Frequency bandwidth: DC to 4 MHz (CT6904A), DC to 2 MHz (CT6904A-1)
Linearity: ±5 ppm Typical (23°C (73°F))
Offset voltage: ±10 ppm Typical (23°C (73°F), no input)
Basic accuracy: DC (Amplitude: ±0.025 % rdg. ±0.007 % f.s., No phase specification)
Output voltage rate: 4 mV / A rated
Max. rated voltage to earth: 1000 V CAT III
Core diameter: φ 32 mm (1.26 in.)
Operating temperature, humidity: -10°C to 50°C (14°F to 122°F) 80% RH or less (with no condensation)
Power supply: Power supplied from compatible Hioki power analyzers, sensor units, or current units
Max. rated power: 7 VA Max. (500 A/55 Hz measurement, with a power supply of ±12 V)

Who Needs the Hioki CT6904A?

The Hioki CT6904A is designed for professionals and hobbyists who require accurate and reliable measurements in various applications. Some of the key industries and applications that can benefit from this product include:

Electrical engineering, research, and development

Power generation and distribution

Industrial automation and control

Electrical testing and measurement

Research and development

Hioki CT6904A Applications

The Hioki CT6904A can be used in a variety of applications, including:

Electrical engineering and research
Power generation and distribution
Industrial automation and control
Electrical testing and measurement
Research and development

Why Buy Hioki CT6904A from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Hioki CT6904A at competitive prices, along with excellent customer service and support. Our team of experts is always available to answer any questions you may have and provide guidance on the best products for your specific needs.

We also offer a range of current accessories and clamp meters from leading manufacturers, including Hioki.

Hioki CT6904A Specifications

Rated current	500 A AC/DC
Max. allowable input	Within the derating range, However, up to ±1000 A peak is allowable if within 20 ms. (design value)
Frequency bandwidth	Amplitude: DC to 4 MHz (CT6904A), DC to 2 MHz (CT6904A-1) Phase: DC to 1 MHz
Linearity	±5 ppm Typical (23°C (73°F))
Offset voltage	±10 ppm Typical (23°C (73°F), no input)
Basic accuracy	DC (Amplitude: ±0.025 % rdg. ±0.007 % f.s., No phase specification) 45 Hz ≤ f ≤ 65 Hz (Amplitude: ±0.02 % rdg. ±0.007 % f.s., Phase: ±0.08°)
Output voltage rate	4 mV / A rated (This device outputs AC+DC voltage via the Sensor Unit)
Max. rated voltage to earth	1000 V CAT III
Core diameter	φ 32 mm (1.26 in.)
Operating temperature, humidity	-10°C to 50°C (14°F to 122°F) 80% RH or less (with no condensation)
Power supply	Power supplied from compatible Hioki power analyzers, sensor units, or current units.
Max. rated power	7 VA Max. (500 A/55 Hz measurement, with a power supply of ±12 V)
Dimensions and mass	139 mm (5.47 in.) W × 120 mm (4.72 in.) H × 52 mm (2.05 in.) D CT6904A: 1.05 kg (37 oz.), cable length 3 m (9.84 ft.) CT6904A-1: 1.35 kg (47.6 oz.), cable length 10 m (32.81 ft.)
Included accessories	Instruction Manual ×1, Carrying case ×1, Color labels (for channel identification) ×1, Operating Precautions ×1
