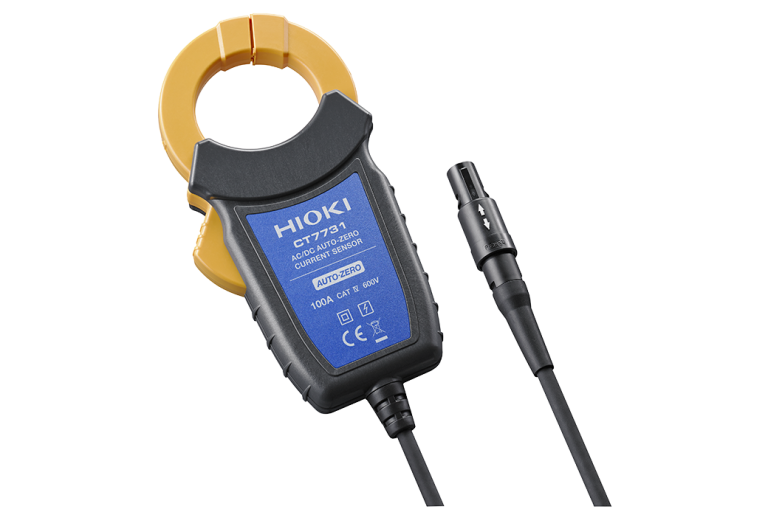

Hioki CT7731 AC/DC Auto-Zero Current Sensor

At Mohammad Mahdi Electronics, we offer the Hioki CT7731 AC/DC Auto-Zero Current Sensor, a cutting-edge solution for measuring current in various applications. This sensor is designed to provide accurate and reliable measurements, making it an essential tool for electricians, engineers, and researchers.

With its AC/DC auto-zero current sensor technology, the Hioki CT7731 offers a high level of precision and accuracy, ensuring that your measurements are reliable and trustworthy. Whether you’re working on a project that requires precise current measurement or simply need a reliable tool for your daily work, the Hioki CT7731 is an excellent choice.

Hioki CT7731 Key Features

The Hioki CT7731 AC/DC Auto-Zero Current Sensor features a range of specifications that make it an ideal choice for various applications. Some of its key features include:

• Rated measurement current: 100 A AC/DC
• Max. measurement current: 100 A (requires derating at frequency)
• Max. allowable peak input: 150 A peak
• Bandwidth: DC to 5 kHz (-3dB)
• Typical phase accuracy: ±1.8 deg. (DC < f ≤ 66 Hz)
• Output rate: 1 mV/A
• Max. rated voltage to earth: AC/DC 600 V (CAT IV)
• Core diameter: φ 33 mm (1.30 in) or less
• Output connectors: HIOKI PL 14

Who Needs the Hioki CT7731?

The Hioki CT7731 AC/DC Auto-Zero Current Sensor is designed for a wide range of applications, including:

Electricians, engineers, and researchers who require precise current measurement for their projects.

Manufacturers who need to measure current in their production processes.

Researchers who need to measure current in their experiments.

Hioki CT7731 Applications

The Hioki CT7731 AC/DC Auto-Zero Current Sensor has a wide range of applications, including:
