Description

At MME, we offer the AC Flexible Current Sensor CT9667 from Hioki, a leading manufacturer of electrical measurement instruments. This sensor is designed to measure AC currents with high accuracy and reliability.

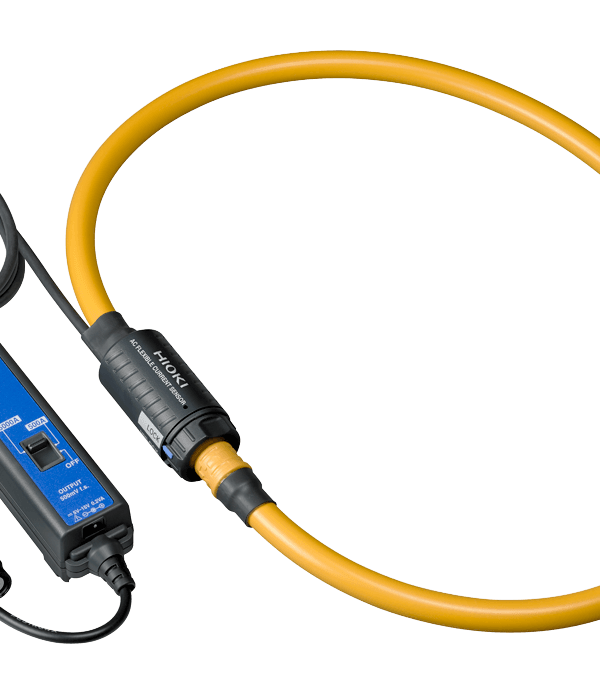

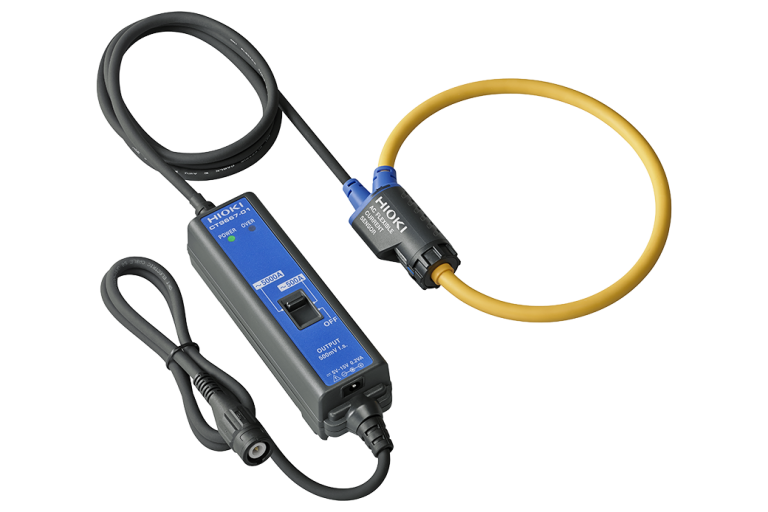

The CT9667 is a flexible current sensor that can be used in a variety of applications, including electrical panel testing, motor testing, and power quality analysis. Its flexible loop design allows for easy placement around conductors, making it ideal for use in tight spaces.

Hioki CT9667-01 Key Features

The Hioki CT9667-01 AC Flexible Current Sensor has several key features that make it an ideal choice for electrical measurement applications.

Rated input current: 5000 A AC/ 500 A AC Max.
Max. allowable input: 10000 A continuous (45 to 66 Hz, requires derating at frequency)
Bandwidth: 10 Hz to 20 kHz (±3dB)
Amplitude and phase accuracy: ±2 % rdg. ±0.3 % f.s. (45 to 66 Hz, at center of flexible loop)
Phase: ±1 deg (45 to 66 Hz)
Output voltage: 500 mV AC/f.s. (0.1 mV AC/A) at 5000 A range 500 mV AC/f.s. (1 mV AC/A) at 500 A range
Max. rated voltage to earth: 1000 V AC (CAT III), 600 V AC (CAT IV)
Core diameter: φ 100 mm (3.94 in)
Output terminal: BNC
Operating temperature: -25 °C to +65 °C (-13 °F to 149 °F)
Power supply: LR6 (AA) alkaline batteries ×2, Continuous use : 7 days (rated power 35 mVA), or AC adapter 9445-02/-03 (rated power 0.2 VA), or External power supply 5 to 15 V DC (rated power 0.2 VA)
Dust and water resistance: Flexible loop only: IP54 * Do not use when wet.
Dimensions and mass: Flexible loop cable diameter: φ7.4 mm (0.29 in), Cable length: Between flexible loop and battery box: 2 m (6.56 ft), Output cable: 1 m (3.28 ft), Battery box: 35 mm (1.38 in)W × 120.5 mm (4.74 in)H × 34 mm (1.34 in)D, 280 g (9.9 oz)
Included accessories: LR6 (AA) alkaline batteries ×2, Instruction manual ×1

Who Needs the Hioki CT9667-01?

The Hioki CT9667-01 AC Flexible Current Sensor is designed for use in a variety of applications, including electrical panel testing, motor testing, and power quality analysis.

It is ideal for use in industries such as manufacturing, construction, and utilities, where accurate measurement of AC currents is critical.

The Hioki CT9667-01 is also suitable for use in research and development applications, where high accuracy and reliability are required.

Hioki CT9667-01 Applications

The Hioki CT9667-01 AC Flexible Current Sensor has a wide range of applications, including:

Electrical panel testing
Motor testing
Power quality analysis
Research and development

Why Buy Hioki CT9667-01 from mme-ae?

At mme-ae, we offer the AC Flexible Current Sensor CT9667 from Hioki, a leading manufacturer of electrical measurement instruments.

Our Hioki products are known for their high accuracy and reliability, and the CT9667 is no exception.

Hioki CT9667-01 Specifications

	CT9667-01	CT9667-02	CT9667-03
Rated input current	5000 A AC/ 500 A AC
Max. allowable input	10000 A continuous (45 to 66 Hz, requires derating at frequency)
Bandwidth	10 Hz to 20 kHz (±3dB)
Amplitude and phase accuracy	±2 % rdg. ±0.3 % f.s. (45 to 66 Hz, at center of flexible loop) Phase: ±1 deg (45 to 66 Hz)
Output voltage	500 mV AC/f.s. (0.1 mV AC/A) at 5000 A range 500 mV AC/f.s. (1 mV AC/A) at 500 A range
Max. rated voltage to earth	1000 V AC (CAT III), 600 V AC (CAT IV)
Core diameter	φ 100 mm (3.94 in)	φ 180 mm (7.09 in)	φ 254 mm (10.00 in)
Output terminal	BNC
Operating temperature	-25 °C to +65 °C (-13 °F to 149 °F)	-25 °C to +65 °C (-13 °F to 149 °F)	-10 °C to +50 °C (14 °F to 122 °F)
Power supply	LR6 (AA) alkaline batteries ×2, Continuous use : 7 days (rated power 35 mVA), or AC adapter 9445-02/-03 (rated power 0.2 VA), or External power supply 5 to 15 V DC (rated power 0.2 VA)
Dust and water resistance	Flexible loop only: IP54 * Do not use when wet.		N/A
Dimensions and mass	Flexible loop cable diameter: φ7.4 mm (0.29 in), Cable length: Between flexible loop and battery box: 2 m (6.56 ft), Output cable: 1 m (3.28 ft), Battery box: 35 mm (1.38 in)W × 120.5 mm (4.74 in)H × 34 mm (1.34 in)D, 280 g (9.9 oz)		Flexible loop cable diameter: φ13 mm (0.51 in), Cable length: Between flexible loop and battery box: 2 m (6.56 ft), Output cable: 1 m (3.28 ft) Battery box: 35 mm (1.38 in)W × 120.5 mm (4.74 in)H × 34 mm (1.34 in)D, 470 g (16.6 oz)
Included accessories	LR6 (AA) alkaline batteries ×2, Instruction manual ×1
