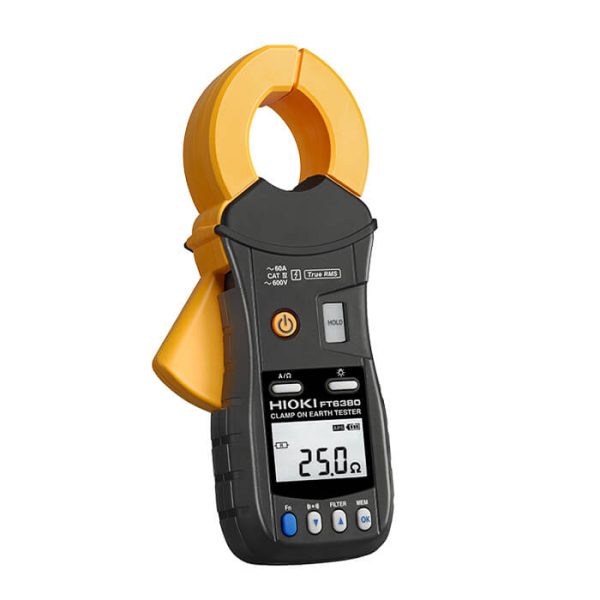

HIOKI FT6380 CLAMP ON EARTH TESTER

HIOKI FT6380 CLAMP ON EARTH TESTER

The Hioki CLAMP ON EARTH TESTER FT6380 is a strong instrument for testing the grounding system and earth connection resistance. It is intended to work in a variety of settings, making it excellent for usage in a variety of industries such as telecommunications, electrical equipment, utilities, and others.

Hioki ft 6380 benefits

The Hioki CLAMP ON EARTH TESTER FT6380’s simplicity of use is one of its primary advantages. The gadget is meant to be user-friendly, allowing users to collect measurements fast and precisely without substantial training or technical knowledge. Its digital display gives clear feedback on measurement findings, and its compact form allows it to be utilized in small locations.

By clamping to multiple-grounded ground wires, the FT6380 monitors grounding resistance. There is no need for an auxiliary grounding rod, nor is it necessary to detach the ground wire from the grounding rod. The tiny, low-profile sensor can easily clamp ground wires and also provide AC current measurement capability, measuring currents ranging from leakage currents of a few mA to load currents of up to 60 A.

Buy HIOKI FT6380 CLAMP ON EARTH

Hioki FT 6380 Manual

Hioki ft 6380 manual, It won’t matter much to those who know how to use a CLAMP ON EARTH TESTER, but new users can have a hard time. However, most of it is self-explanatory and you also have the online manual to refer to if you get stuck.

To view other similar models such as the Hioki FT6381, click on the link.

Hioki FT 6380 Features

• Earth resistance measurement for multi-grounded systems
• Measure leak current with absolute certainty with highly sensitive 0.01 mA resolution (at 20.00 mA range)
• Clamp at the narrowest point
• Store up to 2,000 data points onboard
• Measure load current up to 60.0 A range
• Easy to use, easy to grip

HIOKI FT6380 CLAMP ON EARTH2 price

HIOKI- FT6380 CLAMP ON EARTH TESTER Specifications :

• Earthing resistance range: 0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution), 10 ranges, Zero suppression: Less than 0.02 Ω
• Accuracy: ±1.5 % rdg. ±0.02 Ω
• AC Current range 20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges, Zero suppression: Less than 0.05 mA
• Accuracy: ±2.0 % rdg. ±0.05 mA (30 Hz to 400 Hz, True RMS), Crest factor 5.0 or less (for the 60 A range, 1.7 or less)
• Max. allowable input: 100 A AC continuous, AC 200 A for 2 minutes or shorter (at 50/60 Hz, requires derating at the frequency)
• Max. rated voltage to earth: 600 V AC CAT IV
• Memory function: 2000 data
• Alarm function: For resistance measurement and current measurement, Beeps when the measured value is less than or greater than the threshold
• Other functions: Data hold, Backlight, Filter, Auto power save
• Display: Digital LCD, max. 2000 dgt., Display refresh rate: 500 ms (2 times/s)
• Waterproof and dustproof :IP40 (EN60529) with clamp sensor closed
• Communication interface: N/A
• Power supply: LR6 (AA) alkaline battery ×2, Max. rated power: 450 mVA, Continuous use: 35 hr (in-house testing conditions)
• Core jaw dia.: φ 32 mm (1.26 in)
• Dimensions and mass:73 mm (2.87 in) W × 218 mm (8.58 in) H × 43 mm (1.69 in) D, 620 g (21.9 oz)
• Included accessories: Carrying case ×1, Resistance check loop (1 Ω, 25 Ω) ×1, Strap ×1, LR06 (AA) alkaline battery ×2, Instruction manual ×1
