Description

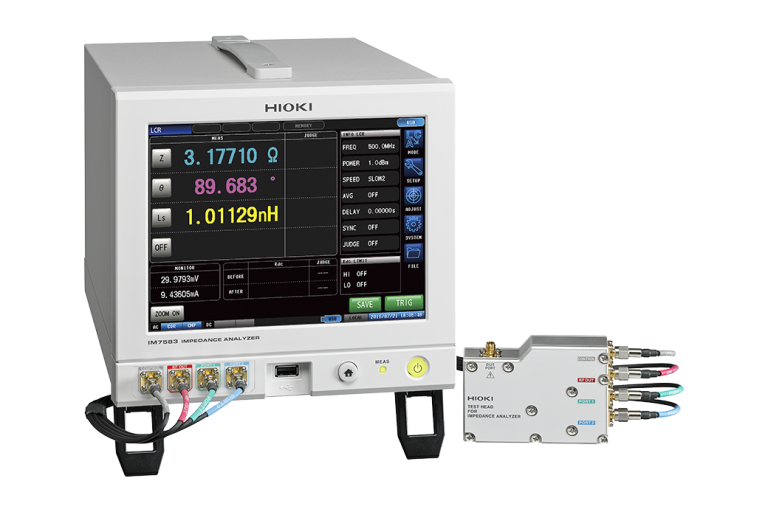

At Mohammad Mahdi Electronics, we offer the Hioki IM7583-01 Impedance Analyzer, a powerful tool for measuring impedance in various applications. With its LCR mode and Analyzer mode, this analyzer provides accurate measurements of impedance, inductance, and capacitance.

Whether you’re working in LCR meters or need to choose the right meter for your project, the Hioki IM7583-01 is an excellent choice. Its continuous measurement mode allows for real-time monitoring, making it ideal for applications where impedance needs to be measured in real-time.

Hioki IM7583-01 Key Features

The Hioki IM7583-01 impedance analyzer features a range of key specifications, including:

Measurement modes: LCR mode, Analyzer mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode
Measurement parameters: Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurable range: 100 mΩ to 5 kΩ
Display range: Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ) Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99) θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF) D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS) G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %)
Basic accuracy: Z: ±0.65 % rdg. θ: ±0.38°
Measurement frequency: 1 MHz to 600 MHz (100 kHz setting resolution)
Measurement signal level: Power: -40.0 dBm to +1.0 dBm Voltage: 4 mV to 502 mVrms Current: 0.09 mA to 10.04 mArms

Who Needs the Hioki IM7583-01?

The Hioki IM7583-01 impedance analyzer is designed for a range of applications, including:

Whether you’re working in Hioki instruments or need to measure impedance in your daily work, the Hioki IM7583-01 is an excellent choice.

Hioki IM7583-01 Applications

The Hioki IM7583-01 impedance analyzer has a range of applications, including:

Impedance measurement in electronic circuits

Inductance and capacitance measurement

Real-time monitoring of impedance

Equivalent circuit analysis

Correlation compensation

Why Buy Hioki IM7583-01 from mme-ae?

At mme-ae, we offer the Hioki IM7583-01 impedance analyzer, a powerful tool for measuring impedance in various applications. With its LCR mode and Analyzer mode, this analyzer provides accurate measurements of impedance, inductance, and capacitance.

Hioki IM7583-01 Specifications

Measurement modes	LCR mode, Analyzer mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode
Measurement parameters	Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurable range	100 mΩ to 5 kΩ
Display range	Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ) Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99) θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF) D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS) G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %)
Basic accuracy	Z: ±0.65 % rdg. θ: ±0.38°
Measurement frequency	1 MHz to 600 MHz (100 kHz setting resolution)
Measurement signal level	Power: -40.0 dBm to +1.0 dBm Voltage: 4 mV to 502 mVrms Current: 0.09 mA to 10.04 mArms
Output impedance	50 Ω (at 10 MHz)
Display	8.4-inch color TFT with touch screen
Measurement speeds	FAST: 0.5 ms (Analog measurement time, typical value)
Functions	Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation
Interfaces	EXT I/O (Handler), USB communication, USB memory, LAN, RS-232C (optional), GP-IB (optional)
Power supply	100 to 240 V AC, 50/60 Hz, 70 VA max.
Dimensions and mass	Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 348 mm (13.70 in) D, 8.0 kg (282.2 oz) Test head: 90 mm (3.54 in) W × 64 mm (2.52 in) H × 24 mm (0.94 in) D, 300 g (10.58 oz)
Included accessories	Test head ×1, Connection cable ×1, Instruction manual ×1, Power cord ×1
