Description

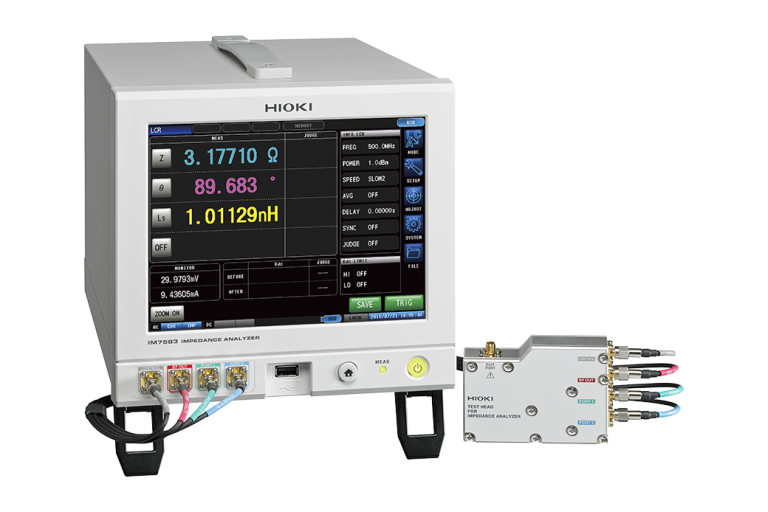

At MME, we offer the Hioki IM7583-02 Impedance Analyzer, a cutting-edge tool for precise measurements in various applications. With its advanced features and user-friendly interface, this analyzer is ideal for professionals and researchers in the field of electronics.

The Hioki IM7583-02 is designed to provide accurate measurements of impedance, capacitance, and inductance. Its LCR mode allows for precise measurements, while its Analyzer mode enables sweeps with measurement frequency and level. The Continuous measurement mode provides real-time data, making it an essential tool for research and development.

Hioki IM7583-02 Key Features

The Hioki IM7583-02 boasts a range of advanced features, including:

Measurement modes: LCR mode, Analyzer mode, and Continuous measurement mode
Measures Z, Y, θ, Rs, Rp, X, G, B, Cs, Cp, Ls, Lp, D, and Q
Measurable range: 100 mΩ to 5 kΩ
Display range: 0.00 m to 9.99999 GΩ
Basic accuracy: Z: ±0.65 % rdg., θ: ±0.38°
Measurement frequency: 1 MHz to 600 MHz
Measurement signal level: Power: -40.0 dBm to +1.0 dBm, Voltage: 4 mV to 502 mVrms, Current: 0.09 mA to 10.04 mArms

Who Needs the Hioki IM7583-02?

The Hioki IM7583-02 is designed for professionals and researchers in the field of electronics, including:

Engineers and technicians working on circuit design and development

Researchers in academia and industry

Quality control specialists in manufacturing

The Hioki IM7583-02 is an essential tool for anyone who needs to measure impedance, capacitance, and inductance accurately and efficiently.

Hioki IM7583-02 Applications

The Hioki IM7583-02 has a wide range of applications, including:

Impedance measurement in circuit design and development
Capacitance and inductance measurement in research and development
Quality control in manufacturing

Why Buy Hioki IM7583-02 from MME?

Browse our LCR meters. Read more in our how to choose the right meter. See other Hioki instruments.

At mme-ae, we offer the Hioki IM7583-02 Impedance Analyzer at a competitive price, along with excellent customer service and support. Our team of experts is always available to assist you with any questions or concerns you may have.

Whether you are a professional engineer or a researcher, the Hioki IM7583-02 is an essential tool for anyone who needs to measure impedance, capacitance, and inductance accurately and efficiently. Buy the Hioki IM7583-02 from Mohammad Mahdi Electronics today and take your work to the next level.

Hioki IM7583-02 Specifications

Measurement modes	LCR mode, Analyzer mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode
Measurement parameters	Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurable range	100 mΩ to 5 kΩ
Display range	Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ) Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99) θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF) D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS) G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %)
Basic accuracy	Z: ±0.65 % rdg. θ: ±0.38°
Measurement frequency	1 MHz to 600 MHz (100 kHz setting resolution)
Measurement signal level	Power: -40.0 dBm to +1.0 dBm Voltage: 4 mV to 502 mVrms Current: 0.09 mA to 10.04 mArms
Output impedance	50 Ω (at 10 MHz)
Display	8.4-inch color TFT with touch screen
Measurement speeds	FAST: 0.5 ms (Analog measurement time, typical value)
Functions	Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation
Interfaces	EXT I/O (Handler), USB communication, USB memory, LAN, RS-232C (optional), GP-IB (optional)
Power supply	100 to 240 V AC, 50/60 Hz, 70 VA max.
Dimensions and mass	Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 348 mm (13.70 in) D, 8.0 kg (282.2 oz) Test head: 90 mm (3.54 in) W × 64 mm (2.52 in) H × 24 mm (0.94 in) D, 300 g (10.58 oz)
Included accessories	Test head ×1, Connection cable ×1, Instruction manual ×1, Power cord ×1
