Description

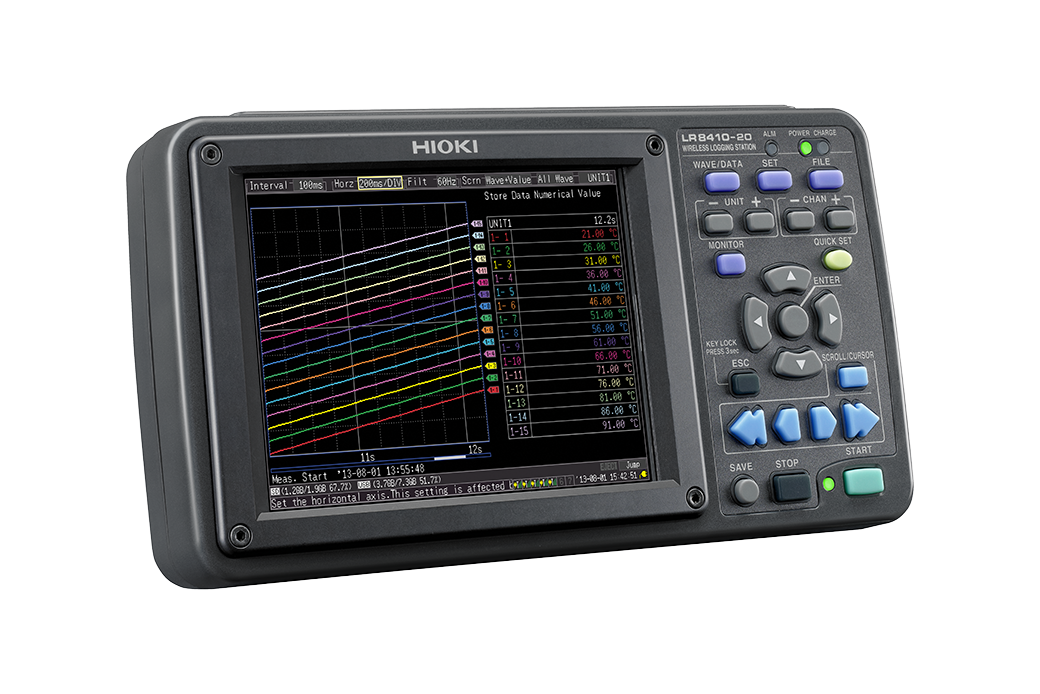

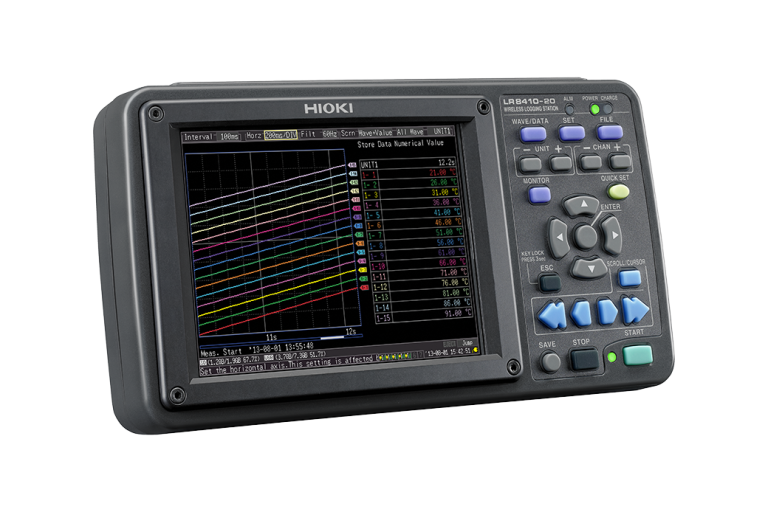

At mme-ae, we offer the Hioki LR8410-30 Wireless Logging Station, a cutting-edge solution for electrical measurements and data logging. This innovative device allows for up to 105 measurement channels, making it an ideal choice for a wide range of applications.

With its advanced Bluetooth wireless technology, the LR8410-30 enables seamless control and data transfer, eliminating the need for cables and reducing setup time. The device also features internal memory and SD/USB data storage options, providing flexibility and convenience.

Hioki LR8410-30 Key Features

The LR8410-30 Wireless Logging Station boasts a range of impressive features, including:

Pulse, digital input: Pulse totalization and rotation count capabilities.
Recording intervals: 100 ms to 1 hour, with 16 selections available.
Data storage: Internal memory and SD/USB data storage options.
Interface: LAN and USB connectivity for data transfer and control.
Display device: 5.7-inch TFT color liquid crystal display for real-time data visualization.
Power supply: AC adapter, internal battery, and external power options available.

Who Needs the Hioki LR8410-30?

The Hioki LR8410-30 Wireless Logging Station is designed for a wide range of applications, including:

Electrical measurements and data logging

Research and development

Quality control and assurance

Manufacturing and production

The LR8410-30 is an ideal choice for anyone who requires accurate and reliable data logging and measurement capabilities.

Hioki LR8410-30 Applications

The LR8410-30 Wireless Logging Station has a wide range of applications, including:

Electrical measurements and data logging

Research and development

Quality control and assurance

Manufacturing and production

Why Buy Hioki LR8410-30 from Mohammad Mahdi Electronics?

Browse our electrical instruments. Read more in our electrical safety standards guide. See other Hioki instruments.

At Mohammad Mahdi Electronics, we offer the Hioki LR8410-30 Wireless Logging Station at competitive prices, along with exceptional customer service and support. Our team of experts is dedicated to helping you find the right solution for your measurement and data logging needs.

Whether you’re looking for a reliable and accurate data logging solution or a cutting-edge measurement device, we’ve got you covered. Contact us today to learn more about the Hioki LR8410-30 Wireless Logging Station and how it can benefit your business.

Hioki LR8410-30 Specifications

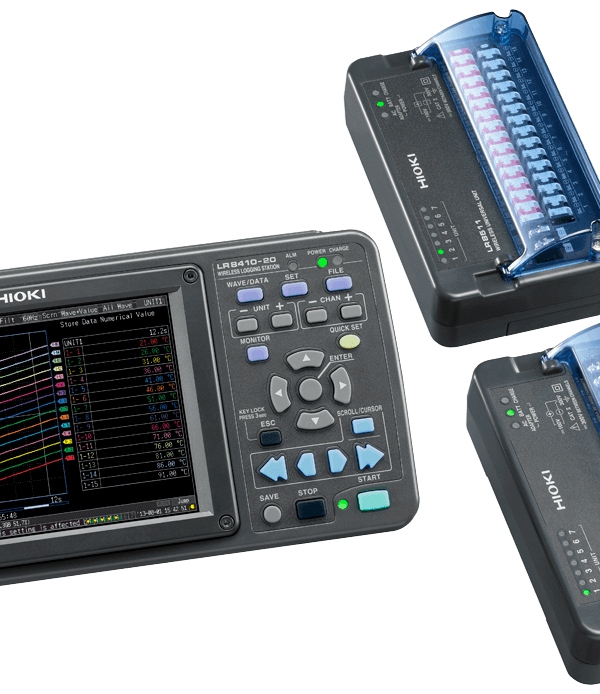

No. of measurement channels	Max. 105 ch (use 7 units of LR8510 or LR8511) One or more LR8510 or LR8511 measurement modules are required. Main unit can control up to 7 modules with Bluetooth® wireless technology, mix and match modules as needed
Pulse, digital input	[Pulse totalization] [Rotation count] Not available
Recording intervals	100 ms(2), 200 ms to 1 hour, 16 selections (All input channels are scanned within each recording interval.) (2) Setting not available when the thermocouple burnout detection setting is on
Data storage	Internal memory: 8 M-words, Data storage media: SD memory card or USB memory stick (Only data recorded to a genuine HIOKI SD memory card is guaranteed)
Interface	LAN: 100BASE-TX, Functions: Data acquisition using bundled software or PC commands, FTP server, FTP client, HTTP server function, or E-mail system USB: USB 2.0 series mini-B receptacle ×1, Functions: Data acquisition using bundled software or PC commands, Transfer data from the SD memory card to a PC via USB drive mode
Display device	5.7 inch TFT color liquid crystal display (640 × 480 pixel)
Functions	Save waveform data in real time to the SD memory card or USB memory stick, Numerical value calculations, Waveform calculations, 4ch alarm output (not isolated, common ground), and others
Power supply	[AC adapter] Using the AC adapter Z1008 (100 to 240 V AC, 50/60 Hz), 45 VA Max. (including AC adapter), 15 VA Max. (exclusive of AC adapter) [Internal battery] Using the Battery pack Z1007 (optional accessory), 3 hours of continuous use (at 23 ˚C reference data), 7 VA Max. [External power] 10 to 28 V DC, 15 VA Max. (Please contact your HIOKI distributor for connection cord)
Dimensions and mass	230 mm (9.06 in) W × 125 mm (4.92 in) H × 36 mm (1.42 in) D, 700 g (24.7 oz) (excluding Battery pack)
Included accessories	Instruction manual × 1, Measurement guide × 1, SD memory card (2GB) Z4001 × 1, CD-R (data collection software “Logger Utility”) × 1, USB cable × 1, AC Adapter Z1008 × 1
