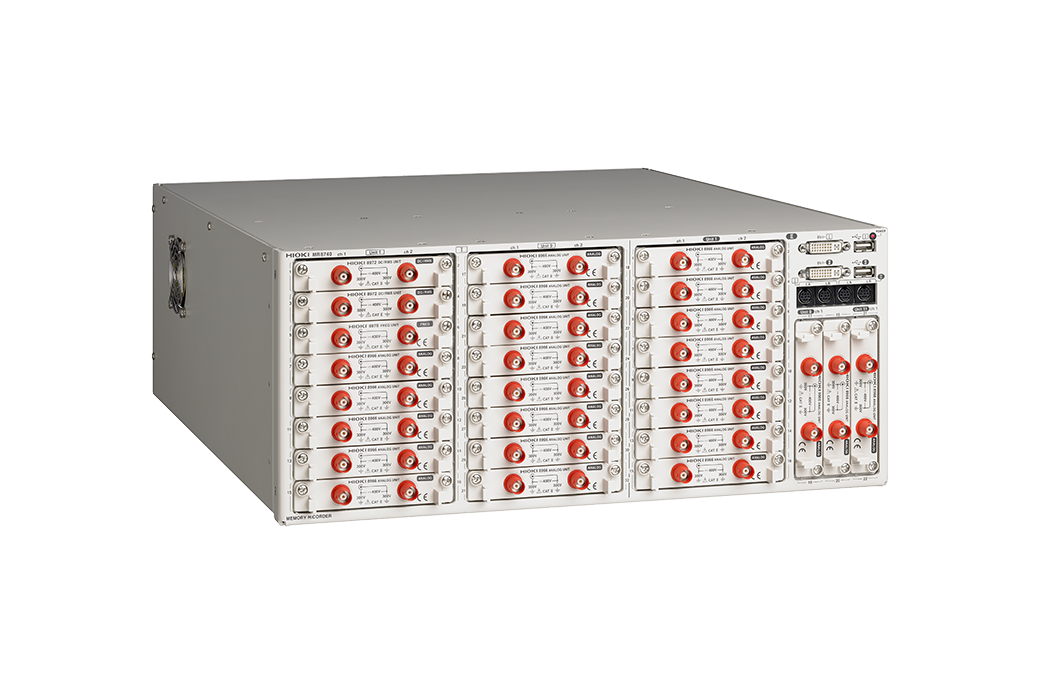

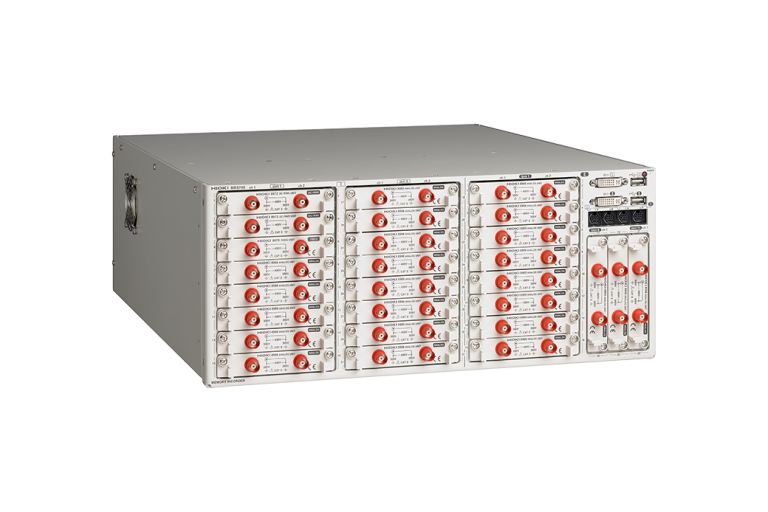

At mme-ae, we offer the MEMORY HiCORDER MR8740-50, a high-performance memory recorder and datalogger designed for a wide range of applications. With its high-speed recording capabilities and large memory capacity, this instrument is ideal for capturing and analyzing complex data in real-time.

Whether you’re working in the field of electrical engineering, research, or manufacturing, the MEMORY HiCORDER MR8740-50 is a valuable tool for your team. Its compact and lightweight design makes it easy to transport and set up, while its powerful power supply ensures reliable operation even in demanding environments.

Hioki MEMORY HiCORDER MR8740-50 Key Features

The MEMORY HiCORDER MR8740-50 offers a range of advanced features, including:

High-speed recording with up to 32 channels of analog and 8 channels of logic data
Large memory capacity of 16 MW/ch, total of 864 MW installed
Removable storage via USB memory stick (USB 2.0)
LAN and USB interfaces for easy connectivity
Wide range of measurement functions, including FFT and memory operation

Who Needs the Hioki MR8740-50?

The MEMORY HiCORDER MR8740-50 is designed for a wide range of applications, including:

Electrical engineering and research

Manufacturing and quality control

Field testing and data acquisition

Scientific research and development

Any application where high-speed recording and large memory capacity are required

Hioki MEMORY HiCORDER MR8740-50 Applications

The MEMORY HiCORDER MR8740-50 is suitable for a wide range of applications, including:

Electrical power systems
Electrical machines and drives
Power electronics and motor control
Electrical safety and testing
Any application where high-speed recording and large memory capacity are required

Why Buy Hioki MEMORY HiCORDER MR8740-50 from Mohammad Mahdi Electronics?

Browse our recorders and dataloggers. Read more in our measurement guides.

At Mohammad Mahdi Electronics, we offer the MEMORY HiCORDER MR8740-50 at a competitive price, with fast shipping and excellent customer service. Our team of experts is available to answer any questions you may have and provide support throughout the purchasing process.

Whether you’re looking for a high-performance memory recorder and datalogger for your next project or simply want to upgrade your existing equipment, the MEMORY HiCORDER MR8740-50 is an excellent choice. Contact us today to learn more and place your order.

Hioki MEMORY HiCORDER MR8740-50 Specifications

Max. Number of channels	[Block I] 32 ch analog + 8 ch logic, or 29 ch analog + 56 ch logic (when used with built-in logic input + plug-in logic unit 8973 × 3) [Block II] 22 ch analog + 8 ch logic, or 19 ch analog + 56 ch logic (when used with built-in logic input + plug-in logic unit 8973 × 3)

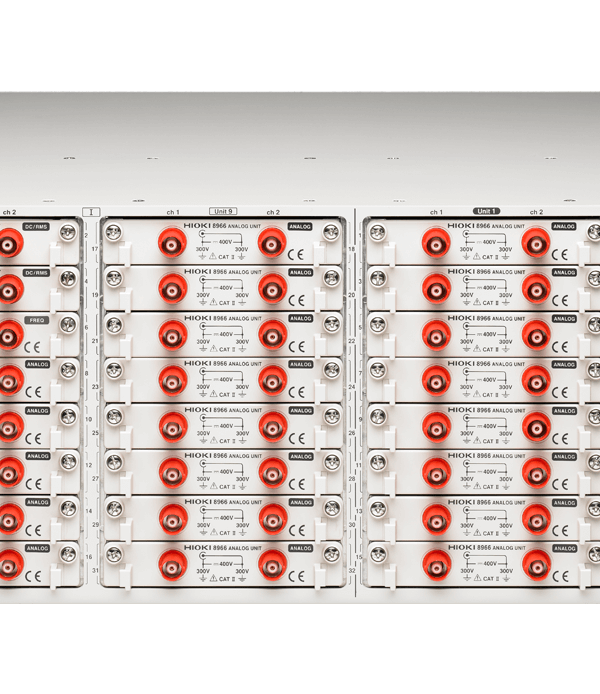

Number of slots	[Block I] 16 slots (Max. 16) [Block II] 11 slots (Max. 11) [Limitation on number of slots] when using the Current Unit 8971: Max. 4, When using the Logic Unit 8973: [Block I] Max. 3; cannot use slots 9 to 16 [Block II] Max. 3; cannot use slots 9 to 11
Number of logic channels	[Block I] 8 ch logic (Logic probe terminal GND share a common GND with chassis. ) [Block II] 8 ch logic (Logic probe terminal GND share a common GND with chassis. ) [Limitation on using built-in logic input] applies to both Block I and Block II (with logic measurement ON) – Measurement resolution on slots 1 and 2 is limited up to 12 bits – Cannot use Frequency Unit 8970 on slots 1 and 2 – When using the DVM Unit MR8990 on slots 1 or 2: cannot use built-in logic input
Measurement ranges (20 div full scale)	5 mV to 20 V/div, 12 ranges, resolution : 1/100 of range (when using 8966) 5 mV to 50 V/div, 5 ranges, resolution : 1/50,000 of range (when using MR8990)
Max. allowable input	400 V DC (when using 8966; upper limit voltage that can be applied between input terminals without damage)
Max. rated voltage to earth	300 V AC/DC (input and instrument are isolated; between input channels and chassis; upper limit voltage that can be applied between input channels without damage)
Frequency characteristics	DC to 5 MHz (-3 dB, when using 8966)
Time axis (MEMORY operation)	5 µs to 5 min/div; 26 ranges; time axis resolution: 100 points/div; time axis expansion: 3 stages from ×2 to ×10; compression: 13 stages from 1/2 to 1/20,000
Measurement functions	Memory (high-speed recording), FFT
Memory capacity	16 MW/ch (fixed), total of 864 MW installed
Removable storage	USB memory stick (USB 2.0)
Display	None (1 digital DVI terminal per block, 800 × 600 dots)

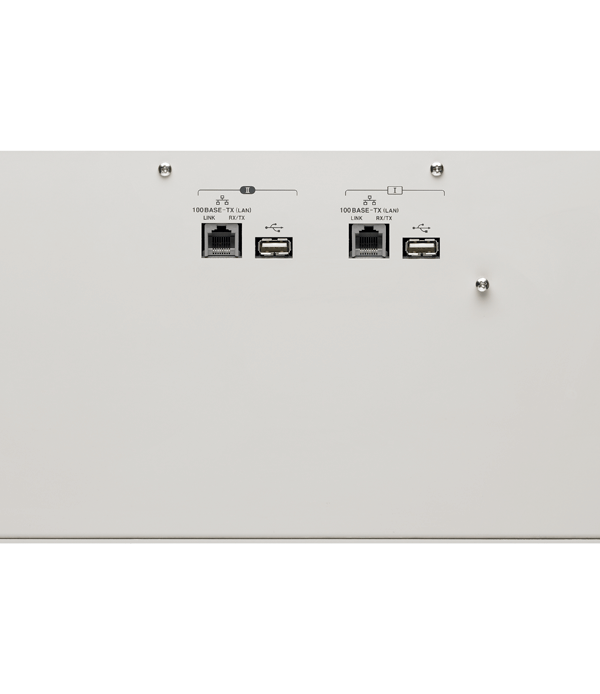

External interfaces	[LAN] 100Base-TX (DHCP and DNS support, FTP server, HTTP server) [USB] USB 2.0 Series A receptacle × 2 (mouse operation)
Power supply	100 to 240 V AC, 50/60 Hz (250 VA max.)
Dimensions and mass	426 mm (16.77 in) W × 177 mm (6.97 in) H × 505 mm (19.88 in) D, 10.8 kg (381.0 oz) (main unit only)
Included accessories	Instruction manual × 1, Application disk (Wave viewer Wv, Communication commands table) × 1, Power cord × 1
