Description

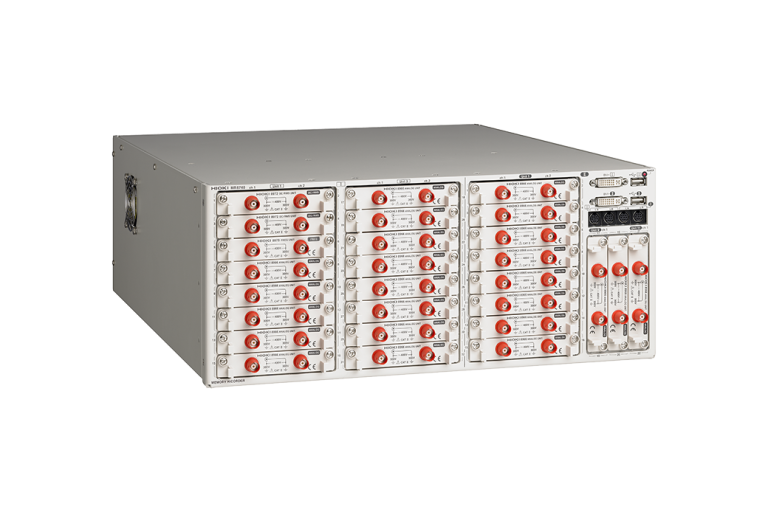

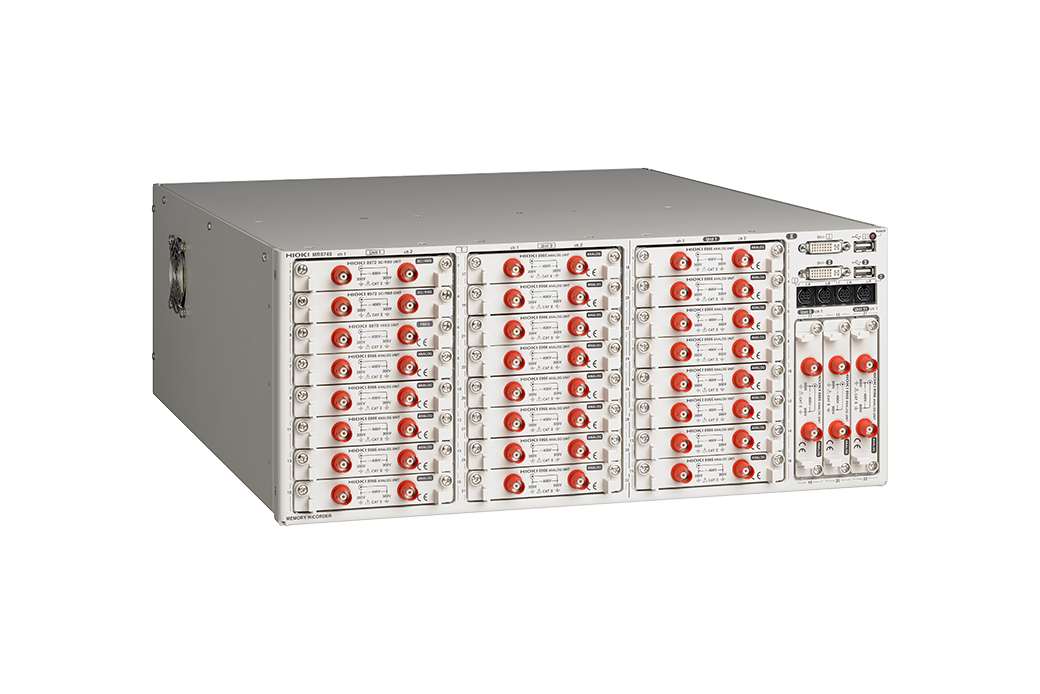

At Mohammad Mahdi Electronics, we offer the MEMORY HiCORDER MR8740 from Hioki, a leading manufacturer of electrical measurement instruments. This high-performance memory hicorder is designed for a wide range of applications, including electrical safety testing, power quality analysis, and data acquisition.

With its advanced features and high-capacity memory, the MEMORY HiCORDER MR8740 is an ideal choice for professionals who require accurate and reliable measurements. Whether you’re working in a laboratory, factory, or field environment, this instrument is sure to meet your needs.

Hioki MR8740 Key Features

The MEMORY HiCORDER MR8740 offers a range of key features that make it an ideal choice for electrical measurement applications. These include:

High-speed recording with up to 32 ch analog + 8 ch logic, or 29 ch analog + 56 ch logic recording capability
16 MW/ch memory capacity for storing large amounts of data
USB 2.0 connectivity for easy data transfer
100Base-TX LAN interface for network connectivity
100 to 240 V AC power supply for flexibility in different environments

Who Needs the Hioki MR8740?

The MEMORY HiCORDER MR8740 is designed for professionals who require accurate and reliable measurements in a wide range of applications. These include:

Electrical safety testing and certification

Power quality analysis and monitoring

Data acquisition and logging

Research and development

Manufacturing and quality control

Hioki MR8740 Applications

The MEMORY HiCORDER MR8740 is suitable for a wide range of applications, including:

Electrical safety testing and certification

Power quality analysis and monitoring

Data acquisition and logging

Research and development

Manufacturing and quality control

Why Buy Hioki MR8740 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the MEMORY HiCORDER MR8740 from Hioki at competitive prices. Our team of experts is always available to provide technical support and guidance to ensure that you get the most out of your instrument.

We also offer a range of accessories and services, including:

Recorders and dataloggers

Measurement guides

Hioki instruments

Hioki MR8740 Specifications

Max. Number of channels	[Block I] 32 ch analog + 8 ch logic, or 29 ch analog + 56 ch logic (when used with built-in logic input + plug-in logic unit 8973 × 3) [Block II] 22 ch analog + 8 ch logic, or 19 ch analog + 56 ch logic (when used with built-in logic input + plug-in logic unit 8973 × 3)

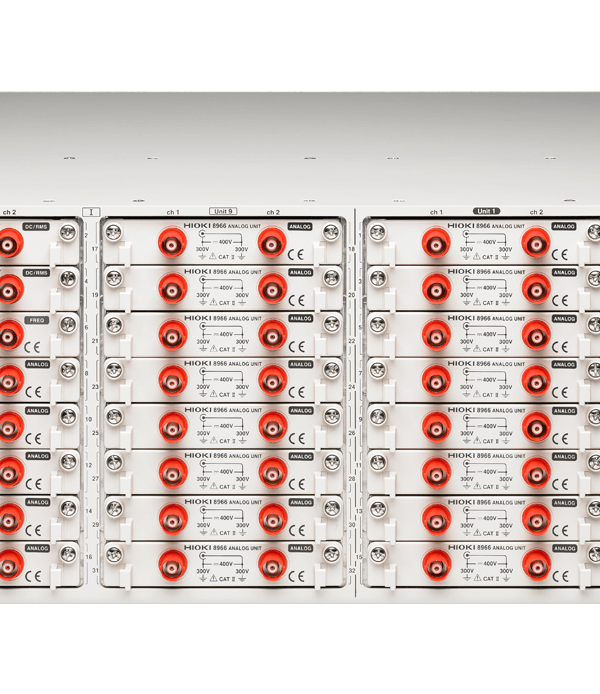

Number of slots	[Block I] 16 slots (Max. 16) [Block II] 11 slots (Max. 11) [Limitation on number of slots] when using the Current Unit 8971: Max. 4, When using the Logic Unit 8973: [Block I] Max. 3; cannot use slots 9 to 16 [Block II] Max. 3; cannot use slots 9 to 11
Number of logic channels	[Block I] 8 ch logic (Logic probe terminal GND share a common GND with chassis. ) [Block II] 8 ch logic (Logic probe terminal GND share a common GND with chassis. ) [Limitation on using built-in logic input] applies to both Block I and Block II (with logic measurement ON) – Measurement resolution on slots 1 and 2 is limited up to 12 bits – Cannot use Frequency Unit 8970 on slots 1 and 2 – When using the DVM Unit MR8990 on slots 1 or 2: cannot use built-in logic input
Measurement ranges (20 div full scale)	5 mV to 20 V/div, 12 ranges, resolution : 1/100 of range (when using 8966) 5 mV to 50 V/div, 5 ranges, resolution : 1/50,000 of range (when using MR8990)
Max. allowable input	400 V DC (when using 8966; upper limit voltage that can be applied between input terminals without damage)
Max. rated voltage to earth	300 V AC/DC (input and instrument are isolated; between input channels and chassis; upper limit voltage that can be applied between input channels without damage)
Frequency characteristics	DC to 5 MHz (-3 dB, when using 8966)
Time axis (MEMORY operation)	5 µs to 5 min/div; 26 ranges; time axis resolution: 100 points/div; time axis expansion: 3 stages from ×2 to ×10; compression: 13 stages from 1/2 to 1/20,000
Measurement functions	Memory (high-speed recording), FFT
Memory capacity	16 MW/ch (fixed), total of 864 MW installed
Removable storage	USB memory stick (USB 2.0)
Display	None (1 digital DVI terminal per block, 800 × 600 dots)

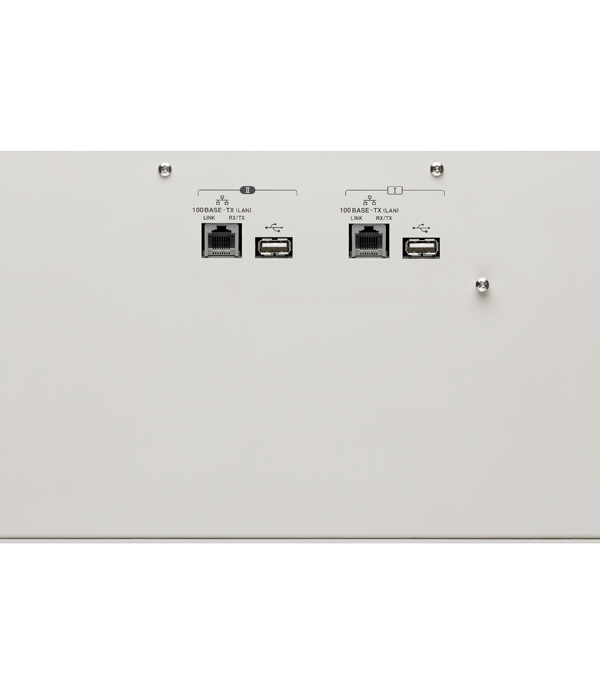

External interfaces	[LAN] 100Base-TX (DHCP and DNS support, FTP server, HTTP server) [USB] USB 2.0 Series A receptacle × 2 (mouse operation)
Power supply	100 to 240 V AC, 50/60 Hz (250 VA max.)
Dimensions and mass	426 mm (16.77 in) W × 177 mm (6.97 in) H × 505 mm (19.88 in) D, 10.8 kg (381.0 oz) (main unit only)
Included accessories	Instruction manual × 1, Application disk (Wave viewer Wv, Communication commands table) × 1, Power cord × 1
