Description

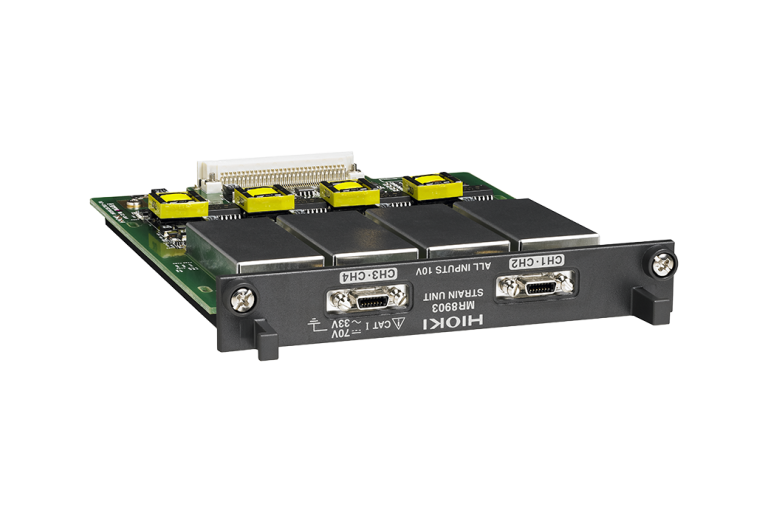

At MME, we offer the Hioki MR8903 Strain Unit, a cutting-edge electrical measurement and data recording device designed for a wide range of applications. This 4-channel strain unit is ideal for voltage/strain measurements, featuring electronic auto-balancing for improved accuracy and a ±10000 μV, ±10000 με balance adjustment range.

With its 30 V ACrms or 60 V DC max. rated voltage to earth, the Hioki MR8903 is suitable for use in various environments. The device is also compatible with strain gauge converters, making it an excellent choice for applications that require high-resolution measurements.

Hioki MR8903 Key Features

The Hioki MR8903 Strain Unit boasts a range of impressive features, including:

4 channels for simultaneous voltage/strain measurements
Electronic auto-balancing for improved accuracy
±10000 μV, ±10000 με balance adjustment range
30 V ACrms or 60 V DC max. rated voltage to earth
Strain gauge converter compatible
High-resolution measurements with 16-bit A/D converter
200 kS/s sampling rate for fast data capture
Low-pass filter options: 5/10/100 Hz, 1 kHz, OFF
Resolution: 1/1250 of measurement range

Who Needs the Hioki MR8903?

The Hioki MR8903 Strain Unit is designed for a wide range of applications, including:

Electrical measurement and data recording

Strain gauge measurements

Voltage/strain measurements

High-resolution measurements

Fast data capture

The Hioki MR8903 is an excellent choice for anyone who requires a reliable and accurate electrical measurement and data recording device.

Hioki MR8903 Applications

The Hioki MR8903 Strain Unit has a wide range of applications, including:

Electrical measurement and data recording

Strain gauge measurements

Voltage/strain measurements

High-resolution measurements

Fast data capture

Why Buy Hioki MR8903 from mme-ae?

Browse our recorders and dataloggers. Read more in our measurement guides.

At mme-ae, we offer the Hioki MR8903 Strain Unit at a competitive price, along with excellent customer service and support. We also offer a range of accessories and upgrades to ensure that you get the most out of your device.

Whether you’re looking for a reliable electrical measurement and data recording device or a high-resolution strain gauge converter, the Hioki MR8903 is an excellent choice. Contact us today to learn more about this amazing device and how it can benefit your business.

Hioki MR8903 Specifications

Functions	No. of channels: 4, for voltage/strain measurements (selectable for each channel, electronic auto-balancing, balance adjustment range within ±10000 μV, ±10000 με)
Input connectors	Unit side: “HDR-EC14LFDTG2-SLE+” made by Honda Tsushin Kogyo Co., Ltd. Japan Via conversion cable, “PRC03-12A10-7M10.5” made by Tajimi Electronics Co., Ltd. Japan Max. rated voltage to earth: 30 V ACrms or 60 V DC (with input isolated from the main unit, the max. voltage that can be applied between input channel and chassis and between input channels without damage)
Suitable transducer	Strain gauge converter, Bridge resistance: 120 Ω to 1 kΩ, Bridge voltage: 2 V ±0.05 V, Gauge rate: 2.0
Input resistance	More than 1 MΩ
Voltage measurement ranges	50 μV to 1000 μV/div, 5 ranges, full scale: 20 division Accuracy: ±0.5 % f.s. + 4 μV (at 50 μV/div only), other ranges ±0.5 % f.s. (after auto-balance, with filter 5 Hz, zero position accuracy included)
Strain measurement ranges	20 με to 1000 με/div, 6 ranges, full scale: 20 division Accuracy: ±0.5 % f.s. + 4 με (at 20, 50 με/div), other ranges ±0.5 % f.s. (after auto-balance, with filter 5 Hz, zero position accuracy included)
Low-pass filter	Low-pass filter: 5/10/100 Hz, 1 kHz, OFF
Resolution	1/1250 of measurement range (using 16-bit A/D converter)
Highest sampling rate	200 kS/s (simultaneous sampling across 4 channels)
Frequency characteristics	DC to 20 kHz +1/-3 dB
Max. allowable input	10 V DC (the max. voltage that can be applied across input pins without damage)
Dimensions and mass	119.5 mm (4.70 in)W × 18.8 mm (0.74 in)H × 151.5mm (5.96 in)D, 173 g (6.1 oz)Conversion cable ×2 (Connector: TAJIMI PRC03-12A10-7M10.5)
Included accessories	Conversion cable ×2 (Connector: TAJIMI PRC03-12A10-7M10.5)
