Description

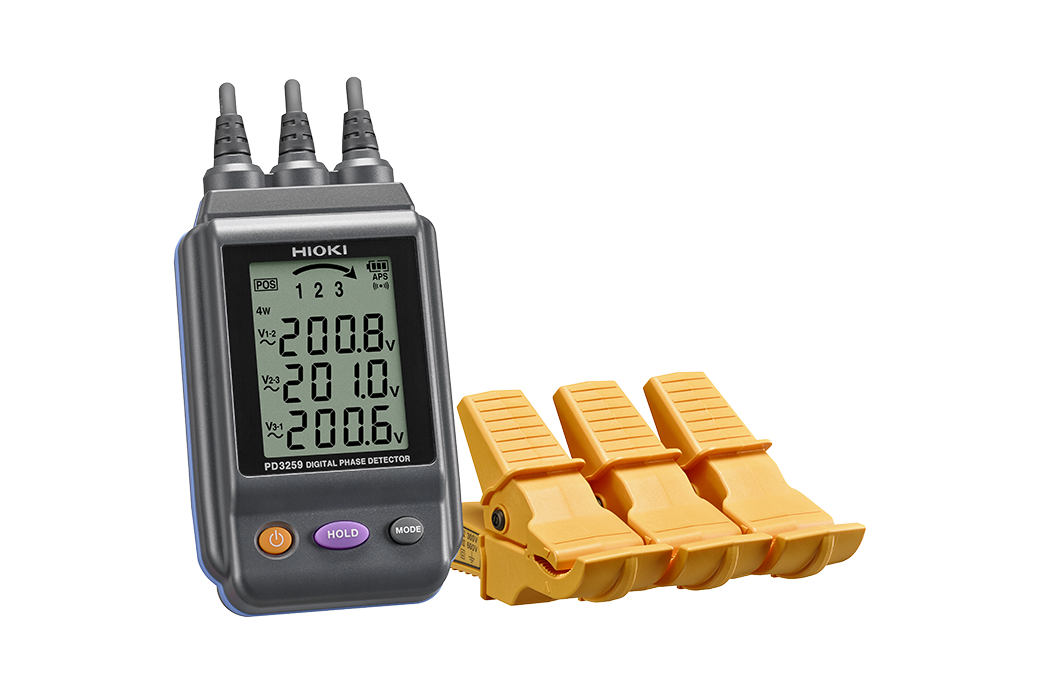

At Mohammad Mahdi Electronics, we offer the Hioki PD3259-90 Digital Phase Detector, a reliable and accurate tool for electrical safety and efficiency. This device is designed to detect phase in three-phase AC systems, ensuring safe and efficient operation.

The Hioki PD3259-90 features a wide measurement range, allowing it to be used in various applications, from electrical safety inspections to maintenance and troubleshooting. Its compact and durable design makes it easy to handle and transport, while its long battery life ensures extended use in the field.

Hioki PD3259-90 Key Features

The Hioki PD3259-90 offers a range of features that enhance its usability and accuracy. These include:

Positive phase, negative phase, open phase, and ground phase detection for accurate phase measurement.
Three-phase AC voltage and frequency measurement for comprehensive analysis.
Hold function, backlight, and buzzer for enhanced usability.
Auto power-off and low battery warning for extended battery life.
Drop proof design for rugged handling.

Who Needs the Hioki PD3259-90?

The Hioki PD3259-90 is designed for professionals and technicians who require accurate phase detection in electrical systems. This includes:

Electrical safety inspectors

Maintenance and troubleshooting technicians

Electrical engineers and designers

Anyone who needs to measure phase in three-phase AC systems

Hioki PD3259-90 Applications

The Hioki PD3259-90 has a wide range of applications, including:

Electrical safety inspections
Maintenance and troubleshooting
Electrical system design and testing
Research and development

Why Buy Hioki PD3259-90 from Mohammad Mahdi Electronics?

Browse our electrical instruments. Read more in our electrical safety standards guide.

At Mohammad Mahdi Electronics, we offer the Hioki PD3259-90 at competitive prices, along with excellent customer service and support. Our team of experts can help you choose the right device for your needs and provide training and technical support to ensure you get the most out of your purchase.

Whether you’re looking for a reliable and accurate phase detector or a comprehensive solution for electrical safety and efficiency, the Hioki PD3259-90 is the perfect choice. Order now and experience the difference for yourself!

Hioki PD3259-90 Specifications

Detection functions	Positive phase, negative phase (Three-phase 3-wire, Three-phase 4-wire), open phase, prediction of ground phase (Three-phase 3-wire)
Measurement parameters	Three-phase AC voltage (line-to-line voltage and voltage to ground), Frequency • Voltage measurement accuracy: ±2.0% rdg. ±8 dgt., • Frequency measurement accuracy: ±0.5% rdg. ±1 dgt., • Response time: 3 s or less, Display update rate: 500 ms
Measurement targets	Covered cables, Metal portions *Use on shielded cables not supported Three-phase 90.0 to 520.0 V AC (45 to 66 Hz)
Diameter of measurable conductors	Finished outer diameter: 6 to 30 mm (0.24 to 1.18 in)
Maximum rated voltage to earth	600 V AC (CAT IV)
Environmental protection	Main unit (excluding voltage sensors): IP54 (EN60529) dustproof and waterproof
Other functions	Hold function, Backlight, Buzzer, Auto power-off, Low battery warning, Drop proof (on concrete, 1 m/ 1 time)
Power supply	AA alkaline batteries (LR6) ×4, Maximum rated power: 3 VA, Continuous operating time: 5 hours (Backlight off, standby state)
Dimensions and mass	84 mm (3.31 in)W × 146 mm (5.75 in)H × 46 mm (1.81 in)D, 590 g (20.8 oz, including batteries), cord length: 0.5 m (1.64 ft)
Accessories	AA alkaline batteries (LR6) ×4, Instruction manual ×1, Carrying case C0203 ×1, Spiral tubes (black ×1, red ×2, blue ×2, yellow ×2)
