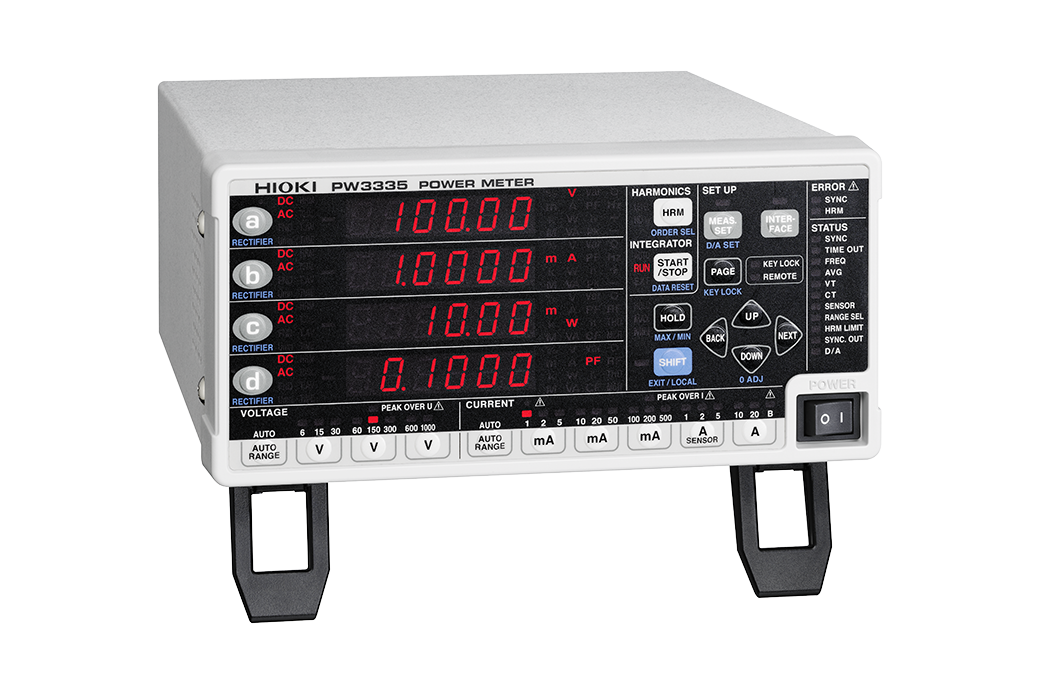

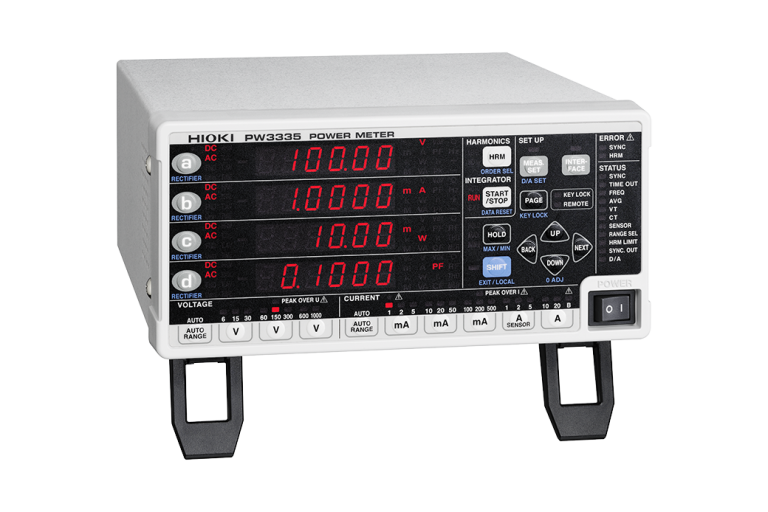

Hioki PW3335-03 POWER METER — Power Quality Analyzer

At Mohammad Mahdi Electronics, we offer the Hioki PW3335-03 POWER METER, a high-precision power quality analyzer designed to meet the demands of modern power measurement applications. With its wide measurement ranges and high accuracy, this power meter is ideal for a variety of industries, including electrical engineering, power distribution, and renewable energy.

Whether you’re measuring voltage, current, or power, the Hioki PW3335-03 delivers accurate and reliable results. Its integration measurement feature allows for up to 10,000 hours of data collection, making it an ideal tool for long-term power quality analysis.

Hioki PW3335-03 Key Features

The Hioki PW3335-03 power meter features a range of key specifications, including:

• Measurement lines: Single-phase/two-wires
• Measurement items: Voltage, current, active power, apparent power, reactive power, power factor, phase angle, frequency, maximum current ratio, current integration, active power integration, integration time, voltage waveform peak value, current waveform peak value, voltage crest factor, current crest factor, time average current, time average active power, voltage ripple rate, current ripple rate
• Harmonic parameters: Synchronization frequency range: 10 Hz to 640 Hz, Maximum analysis order: 50th Harmonic voltage RMS value, harmonic current RMS value, harmonic active power, total harmonic voltage distortion, total harmonic current distortion, fundamental wave voltage, fundamental wave current, fundamental wave active power, fundamental wave apparent power, fundamental wave reactive power, fundamental wave power factor (displacement power factor), fundamental wave voltage current phase difference, harmonic voltage content percentage, harmonic current content percentage, harmonic active power content percentage
• Measurement ranges: [Voltage] AC/DC 6 V to 1000 V, 8 ranges, [Current] AC/DC 1 mA to 20 A, 14 ranges, [Power] 6.0000 mW to 20.000 kW (Depends on combination of voltage and current range)
• Effect of power factor: ±0.1% f.s. or less (45 to 66 Hz, at power factor = 0)
• Integration measurement: Switchable between fixed-range integration and auto-range integration
• Input resistance: [Voltage input terminal] 2 MΩ, [Current input terminal] 520 mΩ or less (at 1 mA to 100 mA range), 15 mΩ or less (at 200 mA to 20 A range)
• Basic accuracy (Active power): ±0.1% rdg. ±0.1% f.s. (DC) ±0.1% rdg. ±0.05% f.s. (45 Hz to 66 Hz, at input ±0.15% rdg. (45 Hz to 66 Hz, at 50% f.s. ≤ input)
• Display refresh rate: 5 times/s to 20 seconds (depend on average times settings)
• Frequency characteristics: DC, 0.1 Hz to 100 kHz
• D/A output: 7 channels (selectable from the following items): level output DC ±2 V f.s. or 5 V f.s., waveform output 1 V f.s., level output, instan

Who Needs the Hioki PW3335-03?

The Hioki PW3335-03 power meter is designed for a variety of applications, including:

Electrical engineering

Power distribution

Renewable energy

Power quality analysis

Harmonic analysis

Power measurement

Hioki PW3335-03 Applications

The Hioki PW3335-03 power meter is suitable for a range of applications, including:

• Power quality analysis
• Harmonic analysis
• Power measurement
• Electrical engineering
• Power distribution
• Renewable energy

Why Buy Hioki PW3335-03 from mme-ae?

At mme-ae, we offer the Hioki PW3335-03 power meter as part of our range of power quality analyzers. With its high accuracy and wide measurement ranges, this power meter is ideal for a variety of applications. Whether you’re measuring voltage, current, or power, the Hioki PW3335-03 delivers reliable and accurate results.

For more information on the Hioki PW3335-03 power meter, please visit our power quality analyzer category or our best power quality analyzers blog. You can also learn more about the Hioki brand and its range of instruments by visiting our Hioki instruments page.

Hioki PW3335-03 Specifications
