Description

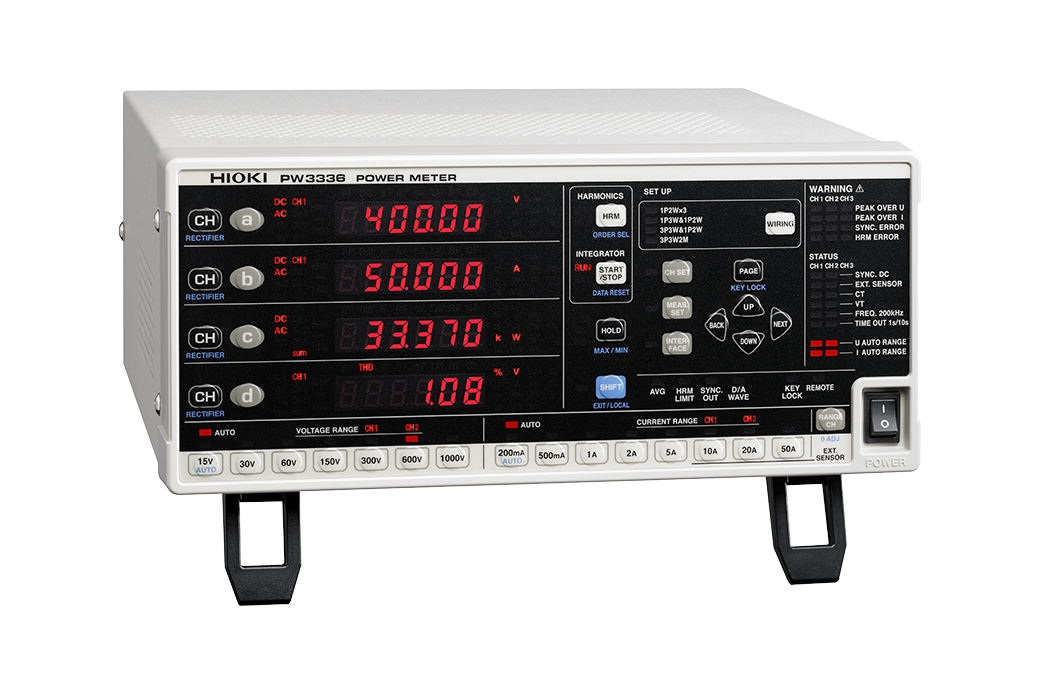

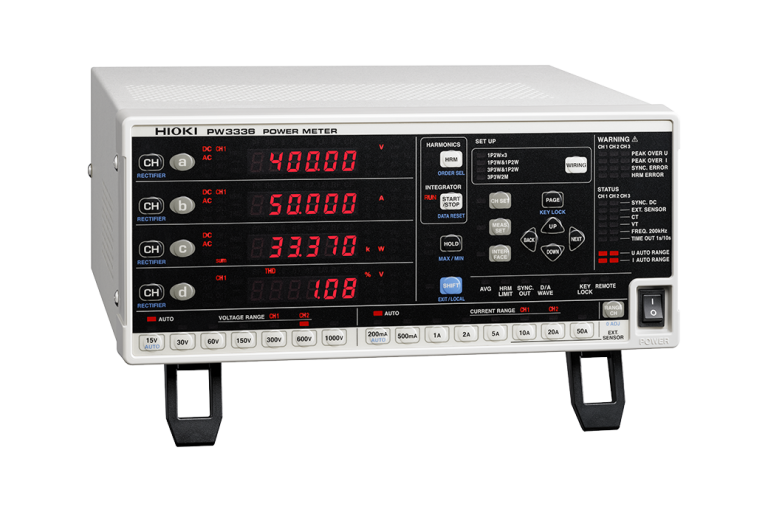

The Hioki PW3336-03 POWER METER is a versatile and accurate power measurement instrument designed for a wide range of applications. With its single-phase and three-phase capabilities, it can measure voltage and current in various wiring modes, including single-phase 2-wires, single-phase 3-wires, and 3-phase 3-wires.

Its wide measurement range allows for accurate measurement of voltage and current, making it suitable for various applications such as power quality analysis, energy management, and electrical testing. The PW3336-03 also features harmonic analysis for up to 50th harmonic, allowing for detailed analysis of power quality issues.

Hioki PW3336-03 Key Features

The Hioki PW3336-03 POWER METER offers a range of key features that make it an ideal choice for power measurement applications. These include:

Measurement lines: Single-phase 2-wires, single-phase 3-wires, 3-phase 3-wires.
Measurement items: Voltage, Current, Active power, Apparent power, Reactive power, Power factor, Phase angle, Frequency, Efficiency, Current integration, Active power integration, Integrated time, Voltage waveform peak value, Current waveform peak value, Voltage crest factor, Current crest factor, Time average current, Time average active power, Voltage ripple factor, Current ripple factor.
Harmonic parameters: Synchronization frequency range: 10 Hz to 640 Hz, Analysis order up to 50th Harmonic voltage RMS value, Harmonic current RMS value, Harmonic active power, Total harmonic voltage distortion, Total harmonic current distortion, Voltage fundamental waveform, Current fundamental waveform, Active power fundamental waveform, Apparent power fundamental waveform, Reactive power fundamental waveform, Power factor fundamental waveform (displacement power factor), Voltage current phase difference fundamental waveform, Interchannel voltage fundamental wave phase difference, Interchannel current fundamental wave phase difference, Harmonic voltage content %, Harmonic current content %, Harmonic active power content %.
Measurement range: [Voltage] 0.15 V to 1000 V AC/DC, [Current] Direct input: 2 mA to 65 A AC/DC, For AC/DC measurement using the CT6877A as an example: 4 A to 2000 A AC/DC (typical accuracy ±0.348%), For AC measurement using the CT9667-01 as an example: 10 A to 5000 A AC (typical accuracy ±2.6%).
Integration measurement: [Current] No.of displayed digits: 6 digits (from 0.00000 mAh, Polarity-independent integration and Sum value), [Active power] No.of displayed digits: 6 digits (from 0.00000 mWh, Polarity-independent integration and Sum value).
Input resistance: [Voltage] 2 MΩ, [Current] 1 mΩ or less (direct input).
Basic accuracy: ±0.1% rdg. ±0.1% f.s. (DC) ±0.1% rdg. ±0.05% f.s. (45 Hz to 66 Hz, at Input ±0.15% rdg. (45 Hz to 66 Hz, at 50% f.s. ≤ Input).
Display refresh rate: 5 times/s to 20 seconds (depend on average times settings).
Frequency characteristics: DC, 0.1 Hz to 100 kHz.
D/A output: 16 channels (selectable from following it).

Who Needs the Hioki PW3336-03?

The Hioki PW3336-03 POWER METER is designed for a wide range of applications, including power quality analysis, energy management, and electrical testing. It is ideal for use in various industries such as power generation, transmission, and distribution, as well as in research and development laboratories.

The PW3336-03 is also suitable for use in industrial settings where accurate power measurement is critical, such as in manufacturing, processing, and other high-energy applications.

Additionally, the PW3336-03 is a valuable tool for electrical engineers, researchers, and technicians who need to measure and analyze power quality issues in various systems and equipment.

Hioki PW3336-03 Applications

The Hioki PW3336-03 POWER METER has a wide range of applications, including:

Power quality analysis
Energy management
Electrical testing
Power generation
Power transmission
Power distribution
Research and development
Industrial settings

Why Buy Hioki PW3336-03 from MME?

Browse our power quality analyzers. Read more in our best power quality analyzers.

The Hioki PW3336-03 POWER METER is a high-quality instrument designed for accurate power measurement. When you buy from MME, you can be confident that you are getting a reliable and durable product that meets your needs.

MME is a trusted supplier of Hioki instruments, and we offer a range of benefits, including:

Competitive pricing
Fast shipping
Excellent customer service
Warranty and support

Whether you are looking for a power meter for power quality analysis, energy management, or electrical testing, the Hioki PW3336-03 is an excellent choice. Contact MME today to learn more about this instrument and how it can meet your needs.

Hioki PW3336-03 Specifications

Measurement lines	Single-phase 2-wires, single-phase 3-wires, 3-phase 3-wires, (voltage / current measurement range set for each wiring mode)
Measurement items	Voltage, Current, Active power, Apparent power, Reactive power, Power factor, Phase angle, Frequency, Efficiency, Current integration, Active power integration, Integrated time, Voltage waveform peak value, Current waveform peak value, Voltage crest factor, Current crest factor, Time average current, Time average active power, Voltage ripple factor, Current ripple factor
Harmonic parameters	Synchronization frequency range: 10 Hz to 640 Hz, Analysis order up to 50th Harmonic voltage RMS value, Harmonic current RMS value, Harmonic active power, Total harmonic voltage distortion, Total harmonic current distortion, Voltage fundamental waveform, Current fundamental waveform, Active power fundamental waveform, Apparent power fundamental waveform, Reactive power fundamental waveform, Power factor fundamental waveform (displacement power factor), Voltage current phase difference fundamental waveform, Interchannel voltage fundamental wave phase difference, Interchannel current fundamental wave phase difference, Harmonic voltage content % , Harmonic current content % , Harmonic active power content % (The following parameters can be downloaded as data during PC communication but not displayed: Harmonic voltage phase angle, Harmonic current phase angle, Harmonic voltage current phase difference)
Measurement range (*1)	[Voltage] 0.15 V to 1000 V AC/DC [Current] Direct input: 2 mA to 65 A AC/DC For AC/DC measurement using the CT6877A as an example: 4 A to 2000 A AC/DC (typical accuracy ±0.348%) For AC measurement using the CT9667-01 as an example: 10 A to 5000 A AC (typical accuracy ±2.6%)
Integration measurement (Integration time up to 10,000 hours)	[Current] No.of displayed digits: 6 digits (from 0.00000 mAh, Polarity-independent integration and Sum value) [Active power] No.of displayed digits: 6 digits (from 0.00000 mWh, Polarity-independent integration and Sum value)
Input resistance (50/60 Hz)	[Voltage] 2 MΩ, [Current] 1 mΩ or less (direct input)
Basic accuracy (Active power)	±0.1% rdg. ±0.1% f.s. (DC) ±0.1% rdg. ±0.05% f.s. (45 Hz to 66 Hz, at Input < 50% f.s.) ±0.15% rdg. (45 Hz to 66 Hz, at 50% f.s. ≤ Input)
Display refresh rate	5 times/s to 20 seconds (depend on average times settings)
Frequency characteristics	DC, 0.1 Hz to 100 kHz
D/A output (-02/-03 model only)	16 channels (selectable from following items), Level output DC ±2 V, Waveform output 1 V f.s. Level output, instantaneous waveform output (voltage, current, active power) Level output (apparent power, reactive power, power factor, or other) High-speed active power level output
Functions	[Rectification method] AC+DC, AC+DC Umn, AC, DC, FND, Auto-range, Average, VT or CT ratio settings, Synchronized control, MAX/MIN, or other functions

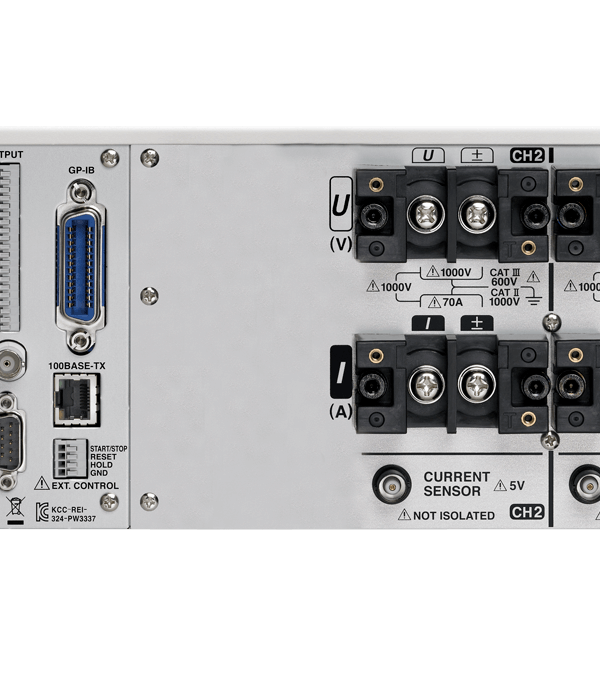

Interfaces	RS-232C / LAN standard, (-01/-03 model also includes GP-IB)
Power supply	100 to 240 V AC, 50/60 Hz, 40 VA max.
Dimensions and mass	305 mm (12.01 in) W × 132 mm (5.20 in) H × 256 mm (10.08 in) D, 5.2 kg (183.4 oz)
Included accessories	Instruction manual ×1, Measurement guide ×1, Power cord ×1
