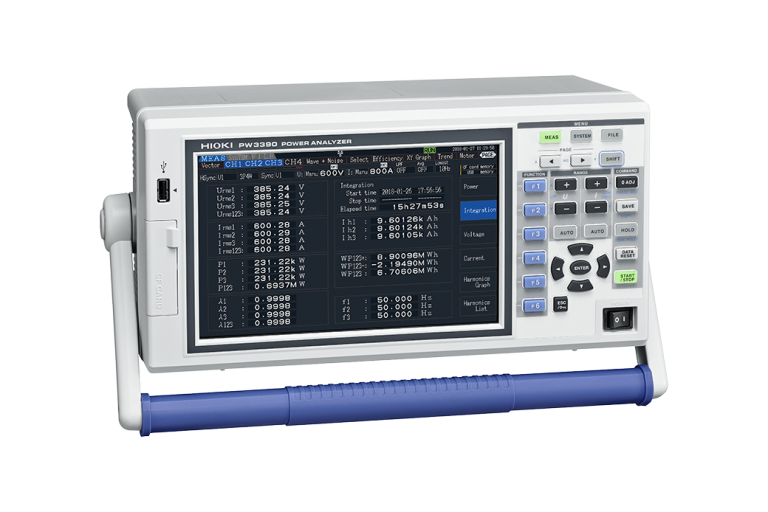

Description

Welcome to the Hioki PW3390-01 POWER ANALYZER, a cutting-edge tool designed to meet the demands of power quality analysis. At Mohammad Mahdi Electronics, we understand the importance of accurate measurements in various industries, and this analyzer is specifically crafted to deliver precise results.

With its advanced features, the Hioki PW3390-01 POWER ANALYZER is an ideal solution for a wide range of applications, including power quality analysis, harmonic measurement, and noise analysis. Its robust design and user-friendly interface make it easy to operate, even for those with limited technical expertise.

Hioki PW3390-01 Key Features

The Hioki PW3390-01 POWER ANALYZER boasts an impressive array of features, including:

Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire measurement line types
4 channels for voltage and current measurement
100th order harmonic measurement
200 kHz frequency band
50 ms data update rate
Auto-Save Functions

Who Needs the Hioki PW3390-01?

The Hioki PW3390-01 POWER ANALYZER is designed for professionals and technicians working in various industries, including:

Power generation and distribution

Industrial automation

Building management

Research and development

And more

Whether you’re working on a new project or troubleshooting existing systems, this analyzer is an essential tool for anyone who needs accurate and reliable measurements.

Hioki PW3390-01 Applications

The Hioki PW3390-01 POWER ANALYZER has a wide range of applications, including:

Power quality analysis
Harmonic measurement
Noise analysis
Motor analysis
And more

Why Buy Hioki PW3390-01 from Mohammad Mahdi Electronics?

Browse our power quality analyzers. Read more in our best power quality analyzers.

At Mohammad Mahdi Electronics, we’re committed to providing our customers with the best possible products and services. That’s why we’re proud to offer the Hioki PW3390-01 POWER ANALYZER, a tool that’s designed to meet the demands of power quality analysis.

With its advanced features and user-friendly interface, this analyzer is an ideal solution for professionals and technicians working in various industries. And with our expert support and competitive pricing, you can trust that you’re getting the best possible value for your money.

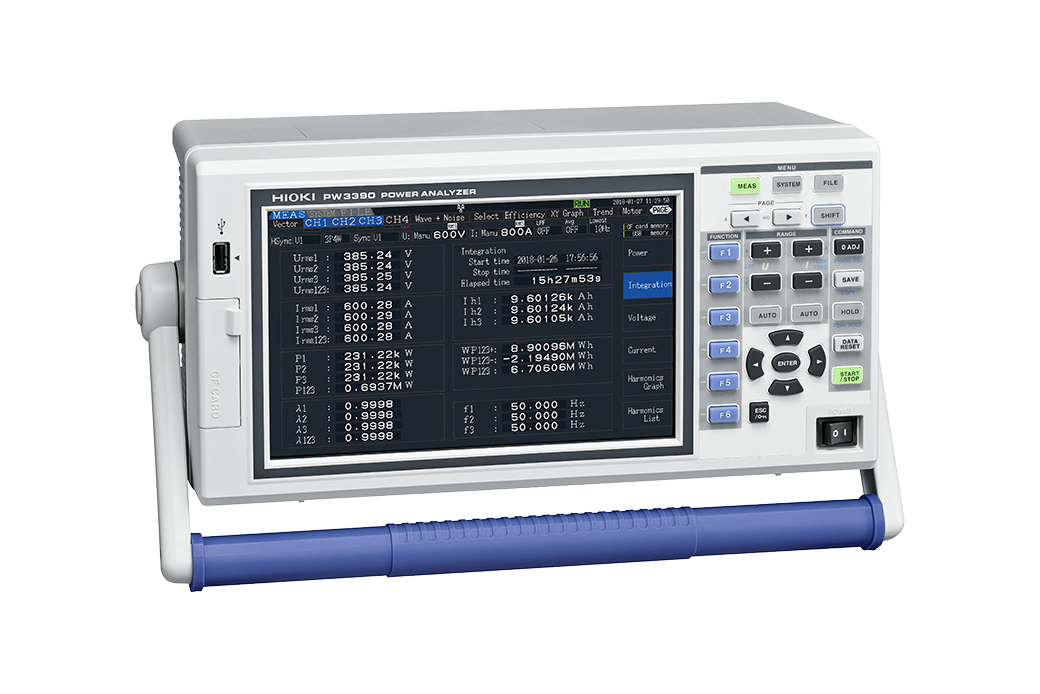

Hioki PW3390-01 Specifications

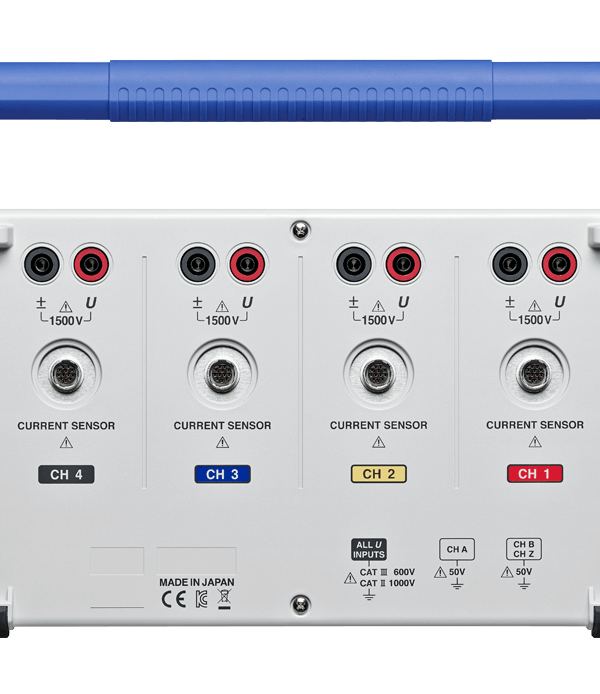

Measurement line type	Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire, Voltage 4 channels, Current 4 channels, Isolated between each channel
Measurement items	Frequency, RMS voltage, voltage mean value rectification RMS equivalent, voltage AC component, voltage simple average, voltage fundamental wave component, voltage waveform peak +, voltage waveform peak -, voltage total harmonic distortion, voltage ripple factor, voltage unbalance factor, RMS current, current mean value rectification RMS equivalent, current AC component, current simple average, current fundamental wave component, current waveform peak +, current waveform peak -, current total harmonic distortion, current ripple factor, current unbalance factor, active power, apparent power, reactive power, power factor, voltage phase angle current phase angle, power phase angle, positive-direction current magnitude, negative-direction current magnitude, sum of positive- and negative-direction current magnitude, positive-direction power magnitude, negative-direction power magnitude, sum of positive- and negative-direction power magnitude, efficiency, loss Current integration, active power integration
	PW3390-03 only: Torque, Rotation, Frequency, Slip, or Motor power
Harmonic measurement	Input: 4 ch, Synchronization frequency range: 0.5 Hz to 5 kHz, Number of harmonic orders: Max. 100th order
Noise measurement	Number of channels: 1 ch (select one channel from CH1 to CH4), Maximum analysis frequency: 200 k/ 50 k/ 20 k/ 10 k/ 5 k/ 2 kHz
Motor Analysis (PW3390-03 only)	Input: 3 ch (CH A, CH B, CH Z), Measurement parameters: Voltage, torque, rotation rate, frequency, slip, and motor power
Measurement range	Voltage range: 15 to 1500 V, 7 ranges Current range: 0.1 A to 20 kA (depends on current sensor)
Effective measuring power range	0.0150 W to 39.600 MW (determined automatically by the combination of voltage range, current range, and measurement line)
Basic accuracy (45 to 66 Hz)	Voltage: ±0.04 % rdg. ±0.05 % f.s. Current: ±0.04 % rdg. ±0.05 % f.s. Active power: ±0.04 % rdg. ±0.05 % f.s.
Synchronization frequency range	0.5 Hz to 5 kHz
Frequency band	DC, 0.5 Hz to 200 kHz
Data update rate	50 ms (For harmonic/frequency measurement, depends on the synchronization frequency when less than 45 Hz)
Display refresh rate	200 ms (Independent of internal data update rate; waveform and FFT depend on the screen)
Auto-Save Functions	Each value is stored to CF card during every measurement interval (not available for USB storage), OFF, 50 msec to 500 msec, 1 sec to 30 sec, 1 minute to 60 minutes, 15 settings

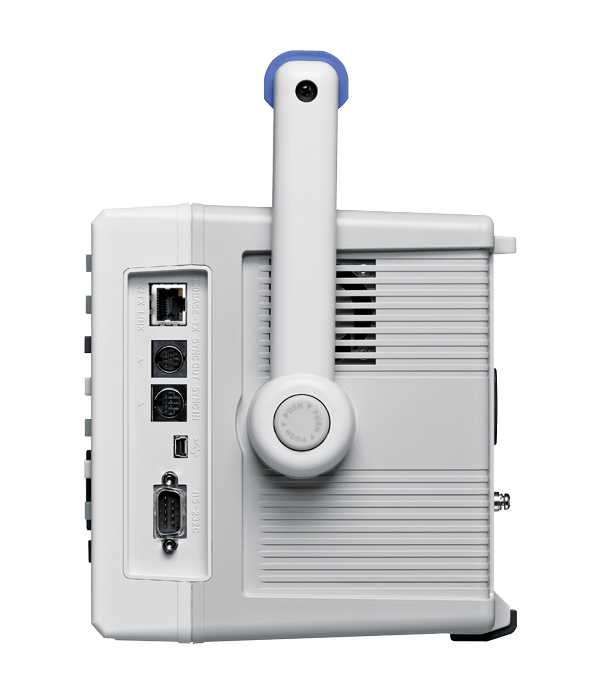

External interfaces	LAN, USB (for communication/ memory), RS-232C (for communication/LR8410 link), CF card, Synchronization control, External Control
Logger connectivity	Sends measured values wirelessly to logger by using a BluetoothⓇ wireless technology serial conversion adapter. (Supported devices: Hioki LR8410 Link-compatible loggers)
Power supply	100 to 240 V AC, 50/60 Hz, 140 VA max.
Dimensions and mass	340 mm (13.39 in.)W × 170 mm (6.69 in.)H × 156 mm (6.14 in.)D, 4.6 kg (162.3 oz.)
Included accessories	Instruction Manual ×1, Power cord ×1, Measurement Guide ×1, USB cable L1003 ×1, Input cord label ×2, D-sub connector × 1 (PW3390-02, PW3390-03)
