Description

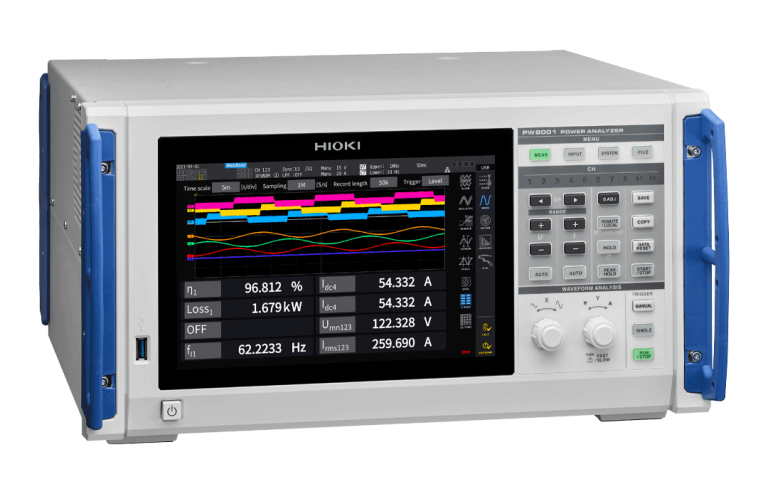

Welcome to the Hioki PW8001-05 POWER ANALYZER, a cutting-edge instrument designed for power quality analysis in various industries. At mme-ae, we understand the importance of accurate power measurements, which is why we offer this high-performance analyzer.

The Hioki PW8001-05 is a versatile instrument that can measure up to 8 units, making it ideal for complex power quality analysis applications. Its wideband mode allows for harmonic measurements up to 500th order, ensuring accurate results. Additionally, the instrument is IEC-compliant for harmonic and flicker measurements, making it a reliable choice for industries that require strict compliance.

Hioki PW8001-05 Key Features

The Hioki PW8001-05 offers a range of key features that make it an ideal choice for power quality analysis. These include:

Multi-channel measurement for up to 8 units
Wideband mode for harmonic measurements up to 500th order
IEC-compliant harmonic and flicker measurements
Motor analysis for voltage, torque, RPM, frequency, slip, and motor power
FFT analysis for power spectrum analysis
High-accuracy current sensor interface for automatic identification and phase shift correction
Recording capacity for up to 5M words × ( [voltage/current] ) × No. of channels + motor waveforms

Who Needs the Hioki PW8001-05?

The Hioki PW8001-05 is designed for industries that require accurate power quality analysis, including:

Power generation and distribution companies

Industrial facilities

Commercial buildings

Research institutions

The Hioki PW8001-05 is also ideal for applications such as:

Harmonic measurements

Flicker measurements

Motor analysis

Power spectrum analysis

Hioki PW8001-05 Applications

The Hioki PW8001-05 has a wide range of applications, including:

Harmonic measurements

Flicker measurements

Motor analysis

Power spectrum analysis

Why Buy Hioki PW8001-05 from Mohammad Mahdi Electronics?

Read more in our best power quality analyzers.

At Mohammad Mahdi Electronics, we offer the Hioki PW8001-05 at competitive prices, along with excellent customer support and service. Our team of experts can help you choose the right instrument for your power quality analysis needs.

We also offer a range of power quality analyzers from leading manufacturers, including the Hioki PW8001-05. Whether you’re looking for a single instrument or a complete system, we can help you find the right solution for your needs.

Hioki PW8001-05 Specifications

Measurement lines	1-phase-2-wire, 1-phase-3-wire, 3-phase-3-wire, 3-phase-4-wire
No. of PW8001 input units	Max. 8 units (mix and match)

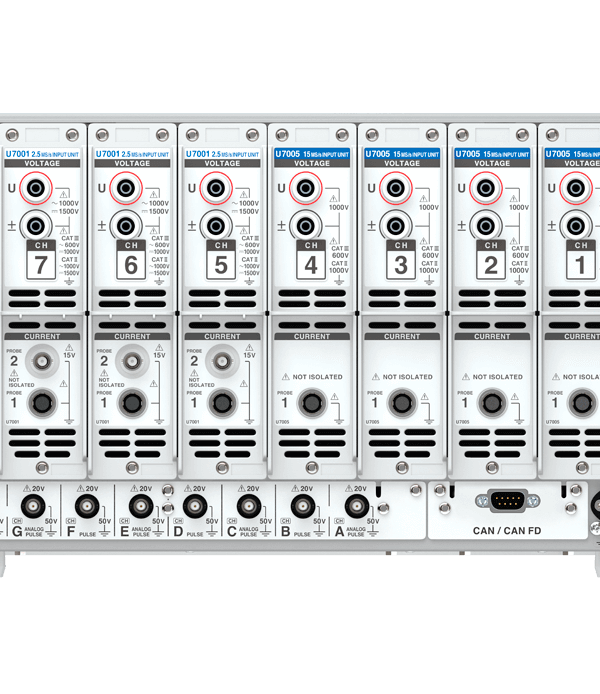

Type of input unit	U7001 2.5 MS/s INPUT UNIT U7005 15 MS/s INPUT UNIT
Measurement frequency band	U7001: DC, 0.1 Hz to 1 MHz U7005: DC, 0.1 Hz to 5 MHz
Sampling	U7001: 2.5 MHz, 16-bit U7005: 15 MHz, 18-bit
Data update rate	1 ms, 10 ms, 50 ms, 200 ms
Accuracy for power (U7001)	50/60 Hz: 0.02% of reading + 0.05% of range DC: 0.02% of reading + 0.05% of range 50 kHz : 0.4% of reading + 0.1% of range
Accuracy for power (U7005)	50/60 Hz : 0.01% of reading + 0.02% of range DC : 0.02% + 0.03% of reading of range 50 kHz: 0.15% of reading + 0.05% of range
Measurement range	Voltage: 6 V, 15 V, 30 V, 60 V, 150 V, 300 V, 600 V, 1500 V Current: (Probe1) 40 mA to 2 kA, (Probe2) 100 mA to 50 kA (Probe1 : Hioki’s high-accuracy current sensor interface supports automatic identification and phase shift correction. Probe 2: BNC I/F only for U7001)
Measurement parameters	voltage (U), current (I), active power (P), apparent power (S), reactive power(Q), power factor (λ), phase angle (φ), voltage frequency（fU）, current frequency（fI）, efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk) – Harmonics measurement : (Wideband mode: Maximum analysis order 500th, IEC measurement mode) – Waveform recording: recording capacity 5M words × ( [voltage/current] ) × – No. of channels + motor waveforms) – Motor analysis (option): voltage, torque, RPM, frequency, slip, motor power – FFT analysis (Power spectrum analysis) – Flicker measurement
IEC measurement mode	When the measurement line has a frequency of 50 Hz or 60 Hz, the instrument can perform harmonic measurements according to IEC61000-4-7 and voltage fluctuation/flicker measurements according to IEC61000-4-15
IEC-compliant harmonic measurement	Compliant with IEC 61000-4-7:2002 Analysis order: Harmonics: 0th to 200th orders, Inter-harmonic: 0.5th to 200.5th orders
IEC-compliant flicker measurement	Compliant with IEC 61000-4-15:2010 Ed 2.0 Flickermeter Class F2 Measurement items: Short-term flicker (Pst), Maximum short-term flicker value (PstMax), Long-term flicker value (Plt), Maximum instantaneous flicker value (PinstMax), Minimum instantaneous flicker value (PinstMin), Relative steady-state voltage change (dc), Maximum relative voltage change (dmax), Period while the relative voltage change exceeds the threshold (Tmax)
Calculation function	Efficiency and loss calculations, User-defined calculations, Delta conversion, Current sensor automatic phase shift calculation
Synchronization measurement	Optical link: Up to two units, 16 channels maximum BNC Synchronization: Up to four units, 32 channels maximum
External interface	USB flash drive, LAN, GP-IB, RS-232C, external control, optical link, BNC sync., CAN or CAN FD
Power supply	100 V to 240 V AC, 50/60 Hz, 230 VA
Dimensions and mass	Approx. 430 mm (16.93 in) W × 221 mm (8.70 in) H × 361mm (14.21 in) D, Approx. 14kg (493.84 oz)
Included accessories	– Power cord ×1 – Instruction Manual ×1 – D-sub 25-pin connector ×1 (PW8001-02, -05, -12, -15 only)
