Description

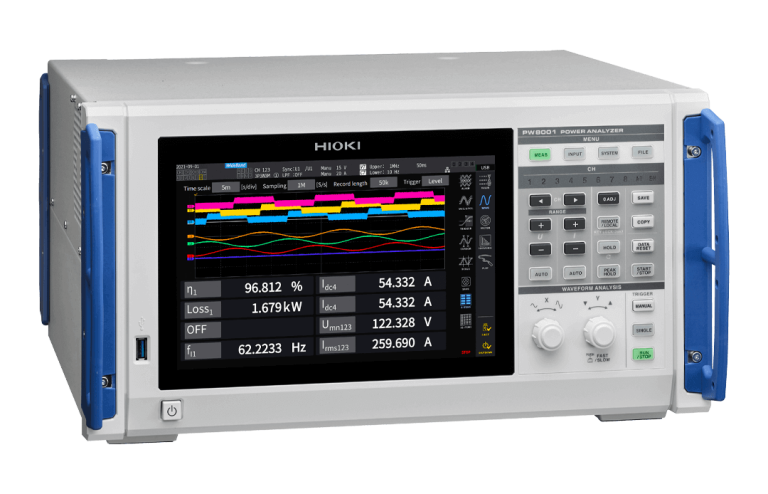

At MME, we offer the Hioki PW8001-06 POWER ANALYZER for precise power quality analysis. This instrument is designed to measure various parameters such as voltage, current, active power, apparent power, reactive power, power factor, phase angle, voltage frequency, current frequency, efficiency, loss, voltage ripple factor, current ripple factor, current integration, power integration, voltage peak, current peak, and harmonics.

The Hioki PW8001-06 is equipped with advanced features such as IEC-compliant harmonic measurement and flicker analysis, wideband mode for maximum analysis order 500th, and waveform recording with 5M words capacity. Additionally, it supports motor analysis option for voltage, torque, RPM, frequency, slip, motor power, and FFT analysis for power spectrum analysis.

Hioki PW8001-06 Key Features

The Hioki PW8001-06 POWER ANALYZER offers the following key features:

Measurement lines: 1-phase-2-wire, 1-phase-3-wire, 3-phase-3-wire, 3-phase-4-wire
No. of PW8001 input units: Max. 8 units (mix and match)
Type of input unit: U7001 2.5 MS/s INPUT UNIT, U7005 15 MS/s INPUT UNIT
Measurement frequency band: U7001: DC, 0.1 Hz to 1 MHz, U7005: DC, 0.1 Hz to 5 MHz
Sampling: U7001: 2.5 MHz, 16-bit, U7005: 15 MHz, 18-bit
Data update rate: 1 ms, 10 ms, 50 ms, 200 ms
Accuracy for power: U7001: 50/60 Hz: 0.02% of reading + 0.05% of range, DC: 0.02% of reading + 0.05% of range, 50 kHz: 0.4% of reading + 0.1% of range, U7005: 50/60 Hz: 0.01% of reading + 0.02% of range, DC: 0.02% + 0.03% of reading of range, 50 kHz: 0.15% of reading + 0.05% of range

Who Needs the Hioki PW8001-06?

The Hioki PW8001-06 POWER ANALYZER is designed for various applications such as power quality analysis, harmonic measurement, and flicker analysis. It is suitable for use in industries such as power generation, transmission, and distribution, as well as in research and development.

At mme-ae, we understand the importance of precise power quality analysis and offer the Hioki PW8001-06 POWER ANALYZER to meet the needs of our customers.

Hioki PW8001-06 Applications

The Hioki PW8001-06 POWER ANALYZER has various applications such as:

Power quality analysis
Harmonic measurement
Flicker analysis
Motor analysis
FFT analysis

Why Buy Hioki PW8001-06 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Hioki PW8001-06 POWER ANALYZER for precise power quality analysis. This instrument is designed to meet the needs of our customers and is suitable for various applications such as power quality analysis, harmonic measurement, and flicker analysis.

We also offer power quality analyzers and best power quality analyzers from various brands, including Hioki instruments.

Hioki PW8001-06 Specifications

Measurement lines	1-phase-2-wire, 1-phase-3-wire, 3-phase-3-wire, 3-phase-4-wire
No. of PW8001 input units	Max. 8 units (mix and match)

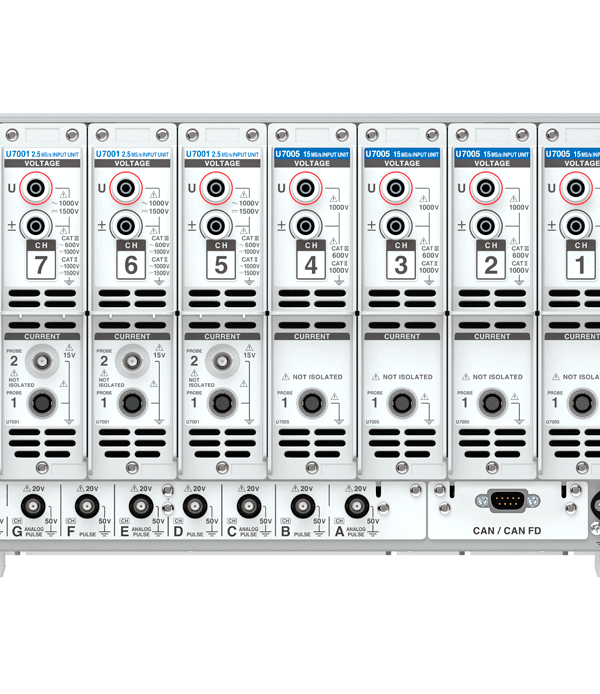

Type of input unit	U7001 2.5 MS/s INPUT UNIT U7005 15 MS/s INPUT UNIT
Measurement frequency band	U7001: DC, 0.1 Hz to 1 MHz U7005: DC, 0.1 Hz to 5 MHz
Sampling	U7001: 2.5 MHz, 16-bit U7005: 15 MHz, 18-bit
Data update rate	1 ms, 10 ms, 50 ms, 200 ms
Accuracy for power (U7001)	50/60 Hz: 0.02% of reading + 0.05% of range DC: 0.02% of reading + 0.05% of range 50 kHz : 0.4% of reading + 0.1% of range
Accuracy for power (U7005)	50/60 Hz : 0.01% of reading + 0.02% of range DC : 0.02% + 0.03% of reading of range 50 kHz: 0.15% of reading + 0.05% of range
Measurement range	Voltage: 6 V, 15 V, 30 V, 60 V, 150 V, 300 V, 600 V, 1500 V Current: (Probe1) 40 mA to 2 kA, (Probe2) 100 mA to 50 kA (Probe1 : Hioki’s high-accuracy current sensor interface supports automatic identification and phase shift correction. Probe 2: BNC I/F only for U7001)
Measurement parameters	voltage (U), current (I), active power (P), apparent power (S), reactive power(Q), power factor (λ), phase angle (φ), voltage frequency（fU）, current frequency（fI）, efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk) – Harmonics measurement : (Wideband mode: Maximum analysis order 500th, IEC measurement mode) – Waveform recording: recording capacity 5M words × ( [voltage/current] ) × – No. of channels + motor waveforms) – Motor analysis (option): voltage, torque, RPM, frequency, slip, motor power – FFT analysis (Power spectrum analysis) – Flicker measurement
IEC measurement mode	When the measurement line has a frequency of 50 Hz or 60 Hz, the instrument can perform harmonic measurements according to IEC61000-4-7 and voltage fluctuation/flicker measurements according to IEC61000-4-15
IEC-compliant harmonic measurement	Compliant with IEC 61000-4-7:2002 Analysis order: Harmonics: 0th to 200th orders, Inter-harmonic: 0.5th to 200.5th orders
IEC-compliant flicker measurement	Compliant with IEC 61000-4-15:2010 Ed 2.0 Flickermeter Class F2 Measurement items: Short-term flicker (Pst), Maximum short-term flicker value (PstMax), Long-term flicker value (Plt), Maximum instantaneous flicker value (PinstMax), Minimum instantaneous flicker value (PinstMin), Relative steady-state voltage change (dc), Maximum relative voltage change (dmax), Period while the relative voltage change exceeds the threshold (Tmax)
Calculation function	Efficiency and loss calculations, User-defined calculations, Delta conversion, Current sensor automatic phase shift calculation
Synchronization measurement	Optical link: Up to two units, 16 channels maximum BNC Synchronization: Up to four units, 32 channels maximum
External interface	USB flash drive, LAN, GP-IB, RS-232C, external control, optical link, BNC sync., CAN or CAN FD
Power supply	100 V to 240 V AC, 50/60 Hz, 230 VA
Dimensions and mass	Approx. 430 mm (16.93 in) W × 221 mm (8.70 in) H × 361mm (14.21 in) D, Approx. 14kg (493.84 oz)
Included accessories	– Power cord ×1 – Instruction Manual ×1 – D-sub 25-pin connector ×1 (PW8001-02, -05, -12, -15 only)
