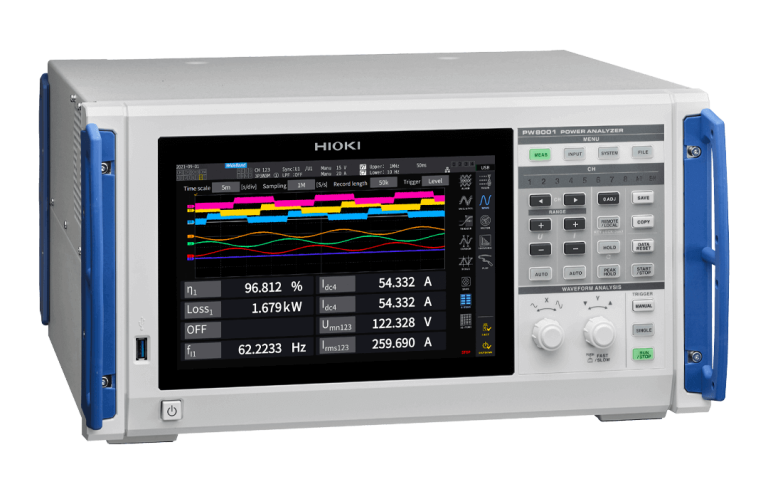

Description

At mme-ae, we offer the Hioki PW8001-14 POWER ANALYZER, a cutting-edge instrument designed for precise power measurement in various applications. With its high-accuracy measurement capabilities and multi-channel functionality, this analyzer is ideal for industries such as electrical engineering, power distribution, and research and development.

Whether you’re measuring voltage, current, or power, the Hioki PW8001-14 delivers accurate results with its wide measurement range and advanced data analysis capabilities. Its compact and rugged design makes it easy to install and integrate into your existing setup.

Hioki PW8001-14 Key Features

The Hioki PW8001-14 POWER ANALYZER boasts a range of key features that make it an essential tool for any power measurement application. Some of its notable features include:

Measurement lines: 1-phase-2-wire, 1-phase-3-wire, 3-phase-3-wire, 3-phase-4-wire
No. of PW8001 input units: Max. 8 units (mix and match)

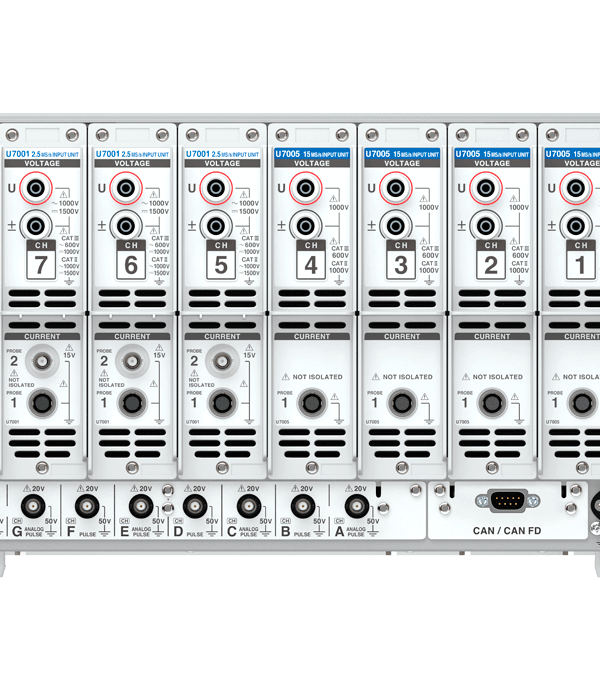

Type of input unit: U7001 2.5 MS/s INPUT UNIT, U7005 15 MS/s INPUT UNIT
Measurement frequency band: U7001: DC, 0.1 Hz to 1 MHz, U7005: DC, 0.1 Hz to 5 MHz
Sampling: U7001: 2.5 MHz, 16-bit, U7005: 15 MHz, 18-bit
Data update rate: 1 ms, 10 ms, 50 ms, 200 ms
Accuracy for power (U7001): 50/60 Hz: 0.02% of reading + 0.05% of range, DC: 0.02% of reading + 0.05% of range, 50 kHz: 0.4% of reading + 0.1% of range
Accuracy for power (U7005): 50/60 Hz: 0.01% of reading + 0.02% of range, DC: 0.02% + 0.03% of reading of range, 50 kHz: 0.15% of reading + 0.05% of range

Who Needs the Hioki PW8001-14?

The Hioki PW8001-14 POWER ANALYZER is designed for a wide range of applications, including:

Electrical engineering and power distribution

Research and development

Industrial automation and control

Power quality analysis and monitoring

Harmonic measurement and analysis

Flicker measurement and analysis

Motor analysis and torque measurement

Power spectrum analysis and FFT analysis

Hioki PW8001-14 Applications

The Hioki PW8001-14 POWER ANALYZER is suitable for a variety of applications, including:

Power quality analysis and monitoring
Harmonic measurement and analysis
Flicker measurement and analysis
Motor analysis and torque measurement
Power spectrum analysis and FFT analysis
Research and development
Industrial automation and control

Why Buy Hioki PW8001-14 from mme-ae?

Browse our power quality analyzers. Read more in our best power quality analyzers.

At mme-ae, we offer the Hioki PW8001-14 POWER ANALYZER at competitive prices, along with excellent customer support and service. Our team of experts is always available to assist you with any questions or concerns you may have.

Whether you’re looking for a reliable power analyzer for your research and development projects or a high-accuracy instrument for industrial applications, the Hioki PW8001-14 is an excellent choice. Contact us today to learn more about this powerful instrument and how it can benefit your business.

Hioki PW8001-14 Specifications

Measurement lines	1-phase-2-wire, 1-phase-3-wire, 3-phase-3-wire, 3-phase-4-wire
No. of PW8001 input units	Max. 8 units (mix and match)
Type of input unit	U7001 2.5 MS/s INPUT UNIT U7005 15 MS/s INPUT UNIT
Measurement frequency band	U7001: DC, 0.1 Hz to 1 MHz U7005: DC, 0.1 Hz to 5 MHz
Sampling	U7001: 2.5 MHz, 16-bit U7005: 15 MHz, 18-bit
Data update rate	1 ms, 10 ms, 50 ms, 200 ms
Accuracy for power (U7001)	50/60 Hz: 0.02% of reading + 0.05% of range DC: 0.02% of reading + 0.05% of range 50 kHz : 0.4% of reading + 0.1% of range
Accuracy for power (U7005)	50/60 Hz : 0.01% of reading + 0.02% of range DC : 0.02% + 0.03% of reading of range 50 kHz: 0.15% of reading + 0.05% of range
Measurement range	Voltage: 6 V, 15 V, 30 V, 60 V, 150 V, 300 V, 600 V, 1500 V Current: (Probe1) 40 mA to 2 kA, (Probe2) 100 mA to 50 kA (Probe1 : Hioki’s high-accuracy current sensor interface supports automatic identification and phase shift correction. Probe 2: BNC I/F only for U7001)
Measurement parameters	voltage (U), current (I), active power (P), apparent power (S), reactive power(Q), power factor (λ), phase angle (φ), voltage frequency（fU）, current frequency（fI）, efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk) – Harmonics measurement : (Wideband mode: Maximum analysis order 500th, IEC measurement mode) – Waveform recording: recording capacity 5M words × ( [voltage/current] ) × – No. of channels + motor waveforms) – Motor analysis (option): voltage, torque, RPM, frequency, slip, motor power – FFT analysis (Power spectrum analysis) – Flicker measurement
IEC measurement mode	When the measurement line has a frequency of 50 Hz or 60 Hz, the instrument can perform harmonic measurements according to IEC61000-4-7 and voltage fluctuation/flicker measurements according to IEC61000-4-15
IEC-compliant harmonic measurement	Compliant with IEC 61000-4-7:2002 Analysis order: Harmonics: 0th to 200th orders, Inter-harmonic: 0.5th to 200.5th orders
IEC-compliant flicker measurement	Compliant with IEC 61000-4-15:2010 Ed 2.0 Flickermeter Class F2 Measurement items: Short-term flicker (Pst), Maximum short-term flicker value (PstMax), Long-term flicker value (Plt), Maximum instantaneous flicker value (PinstMax), Minimum instantaneous flicker value (PinstMin), Relative steady-state voltage change (dc), Maximum relative voltage change (dmax), Period while the relative voltage change exceeds the threshold (Tmax)
Calculation function	Efficiency and loss calculations, User-defined calculations, Delta conversion, Current sensor automatic phase shift calculation
Synchronization measurement	Optical link: Up to two units, 16 channels maximum BNC Synchronization: Up to four units, 32 channels maximum
External interface	USB flash drive, LAN, GP-IB, RS-232C, external control, optical link, BNC sync., CAN or CAN FD
Power supply	100 V to 240 V AC, 50/60 Hz, 230 VA
Dimensions and mass	Approx. 430 mm (16.93 in) W × 221 mm (8.70 in) H × 361mm (14.21 in) D, Approx. 14kg (493.84 oz)
Included accessories	– Power cord ×1 – Instruction Manual ×1 – D-sub 25-pin connector ×1 (PW8001-02, -05, -12, -15 only)
