Description

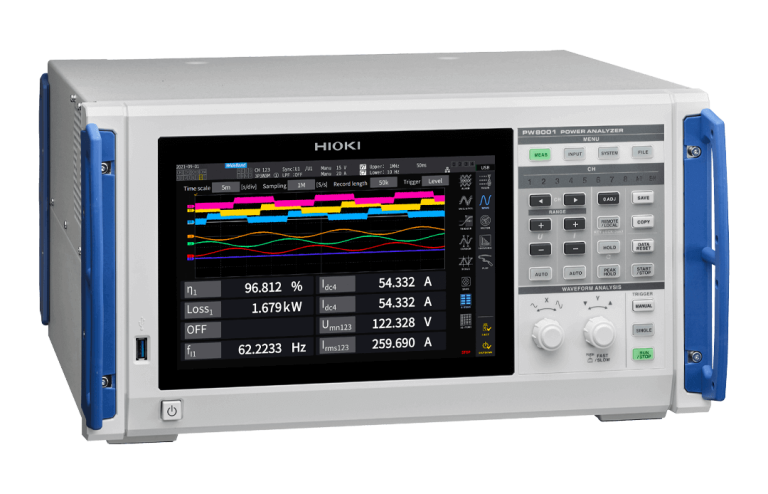

Welcome to the Hioki PW8001-16 Power Analyzer, a cutting-edge instrument designed to meet the demands of modern power measurement applications. As a leading supplier of Hioki instruments, mme-ae is proud to offer this high-performance power analyzer to our customers.

The PW8001-16 is a versatile instrument that can be used in a wide range of applications, from power quality analysis to motor testing and efficiency measurement. Its high-accuracy measurement capabilities and fast data update rate make it an ideal choice for researchers, engineers, and technicians who require precise and reliable data.

Hioki PW8001-16 Key Features

The PW8001-16 power analyzer features a range of advanced measurement capabilities, including:

Measurement lines: 1-phase-2-wire, 1-phase-3-wire, 3-phase-3-wire, 3-phase-4-wire
No. of PW8001 input units: Max. 8 units (mix and match)

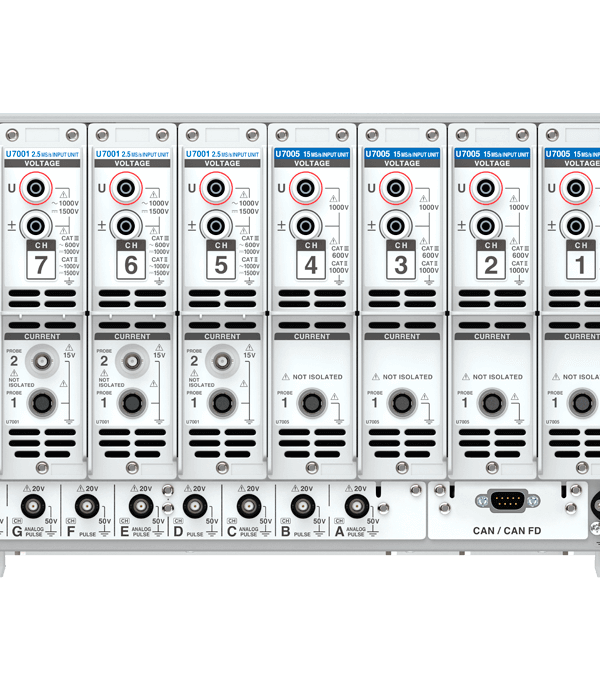

Type of input unit: U7001 2.5 MS/s INPUT UNIT, U7005 15 MS/s INPUT UNIT
Measurement frequency band: U7001: DC, 0.1 Hz to 1 MHz, U7005: DC, 0.1 Hz to 5 MHz
Sampling: U7001: 2.5 MHz, 16-bit, U7005: 15 MHz, 18-bit
Data update rate: 1 ms, 10 ms, 50 ms, 200 ms
Accuracy for power (U7001): 50/60 Hz: 0.02% of reading + 0.05% of range, DC: 0.02% of reading + 0.05% of range, 50 kHz: 0.4% of reading + 0.1% of range
Accuracy for power (U7005): 50/60 Hz: 0.01% of reading + 0.02% of range, DC: 0.02% + 0.03% of reading of range, 50 kHz: 0.15% of reading + 0.05% of range

Who Needs the Hioki PW8001-16?

The Hioki PW8001-16 power analyzer is designed for a wide range of applications, including:

Power quality analysis

Motor testing and efficiency measurement

Harmonic measurement and flicker analysis

Power system analysis and monitoring

The PW8001-16 is ideal for researchers, engineers, and technicians who require precise and reliable data in these fields.

Hioki PW8001-16 Applications

The Hioki PW8001-16 power analyzer has a wide range of applications, including:

Power quality analysis

Motor testing and efficiency measurement

Harmonic measurement and flicker analysis

Power system analysis and monitoring

Research and development

Testing and validation

Why Buy Hioki PW8001-16 from mme-ae?

Read more in our best power quality analyzers.

At mme-ae, we are proud to offer the Hioki PW8001-16 power analyzer to our customers. Our team of experts is dedicated to providing the highest level of service and support to ensure that our customers receive the best possible experience.

We offer a range of benefits, including:

Competitive pricing

Fast shipping and delivery

Expert technical support

Warranty and maintenance services

Our goal is to provide our customers with the best possible experience and to help them achieve their goals.

Hioki PW8001-16 Specifications

Measurement lines	1-phase-2-wire, 1-phase-3-wire, 3-phase-3-wire, 3-phase-4-wire
No. of PW8001 input units	Max. 8 units (mix and match)
Type of input unit	U7001 2.5 MS/s INPUT UNIT U7005 15 MS/s INPUT UNIT
Measurement frequency band	U7001: DC, 0.1 Hz to 1 MHz U7005: DC, 0.1 Hz to 5 MHz
Sampling	U7001: 2.5 MHz, 16-bit U7005: 15 MHz, 18-bit
Data update rate	1 ms, 10 ms, 50 ms, 200 ms
Accuracy for power (U7001)	50/60 Hz: 0.02% of reading + 0.05% of range DC: 0.02% of reading + 0.05% of range 50 kHz : 0.4% of reading + 0.1% of range
Accuracy for power (U7005)	50/60 Hz : 0.01% of reading + 0.02% of range DC : 0.02% + 0.03% of reading of range 50 kHz: 0.15% of reading + 0.05% of range
Measurement range	Voltage: 6 V, 15 V, 30 V, 60 V, 150 V, 300 V, 600 V, 1500 V Current: (Probe1) 40 mA to 2 kA, (Probe2) 100 mA to 50 kA (Probe1 : Hioki’s high-accuracy current sensor interface supports automatic identification and phase shift correction. Probe 2: BNC I/F only for U7001)
Measurement parameters	voltage (U), current (I), active power (P), apparent power (S), reactive power(Q), power factor (λ), phase angle (φ), voltage frequency（fU）, current frequency（fI）, efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk) – Harmonics measurement : (Wideband mode: Maximum analysis order 500th, IEC measurement mode) – Waveform recording: recording capacity 5M words × ( [voltage/current] ) × – No. of channels + motor waveforms) – Motor analysis (option): voltage, torque, RPM, frequency, slip, motor power – FFT analysis (Power spectrum analysis) – Flicker measurement
IEC measurement mode	When the measurement line has a frequency of 50 Hz or 60 Hz, the instrument can perform harmonic measurements according to IEC61000-4-7 and voltage fluctuation/flicker measurements according to IEC61000-4-15
IEC-compliant harmonic measurement	Compliant with IEC 61000-4-7:2002 Analysis order: Harmonics: 0th to 200th orders, Inter-harmonic: 0.5th to 200.5th orders
IEC-compliant flicker measurement	Compliant with IEC 61000-4-15:2010 Ed 2.0 Flickermeter Class F2 Measurement items: Short-term flicker (Pst), Maximum short-term flicker value (PstMax), Long-term flicker value (Plt), Maximum instantaneous flicker value (PinstMax), Minimum instantaneous flicker value (PinstMin), Relative steady-state voltage change (dc), Maximum relative voltage change (dmax), Period while the relative voltage change exceeds the threshold (Tmax)
Calculation function	Efficiency and loss calculations, User-defined calculations, Delta conversion, Current sensor automatic phase shift calculation
Synchronization measurement	Optical link: Up to two units, 16 channels maximum BNC Synchronization: Up to four units, 32 channels maximum
External interface	USB flash drive, LAN, GP-IB, RS-232C, external control, optical link, BNC sync., CAN or CAN FD
Power supply	100 V to 240 V AC, 50/60 Hz, 230 VA
Dimensions and mass	Approx. 430 mm (16.93 in) W × 221 mm (8.70 in) H × 361mm (14.21 in) D, Approx. 14kg (493.84 oz)
Included accessories	– Power cord ×1 – Instruction Manual ×1 – D-sub 25-pin connector ×1 (PW8001-02, -05, -12, -15 only)
