Description

At MME, we offer the Hioki RM3542-50 RESISTANCE HiTESTER for precise electrical measurements. This instrument is designed to meet the needs of professionals in various industries, including electrical engineering and research.

With its wide range of resistance measurement capabilities, from 100 mΩ to 100 MΩ, the Hioki RM3542-50 is an ideal tool for testing and verifying electrical circuits. Its high measurement accuracy of ±0.015 % rdg. ±0.002 % f.s. ensures reliable results.

Hioki RM3542-50 Key Features

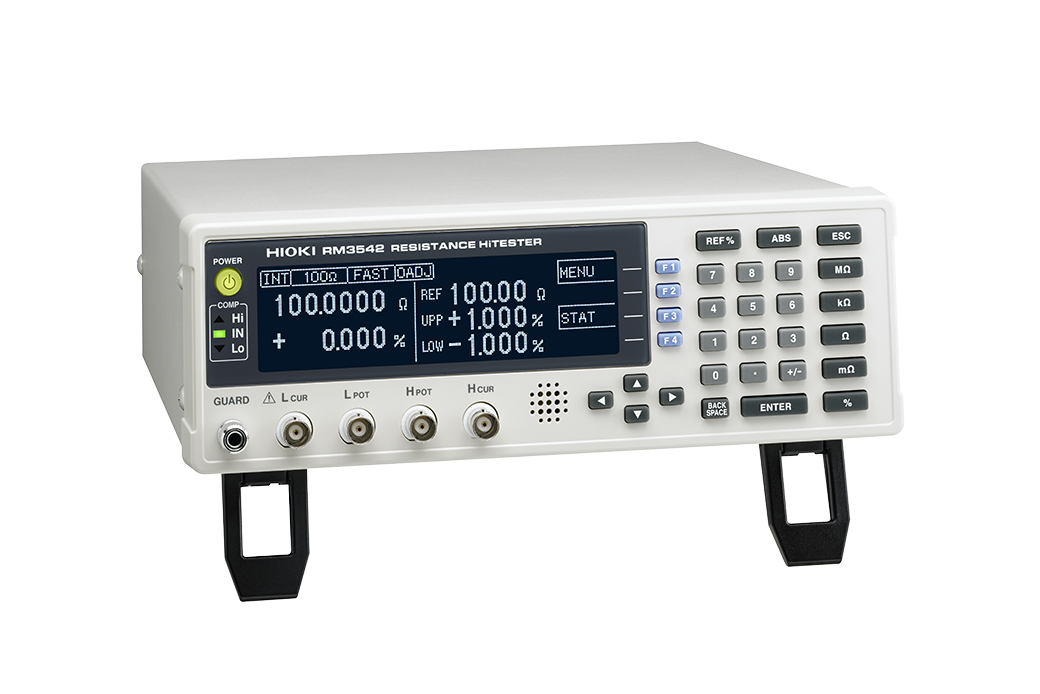

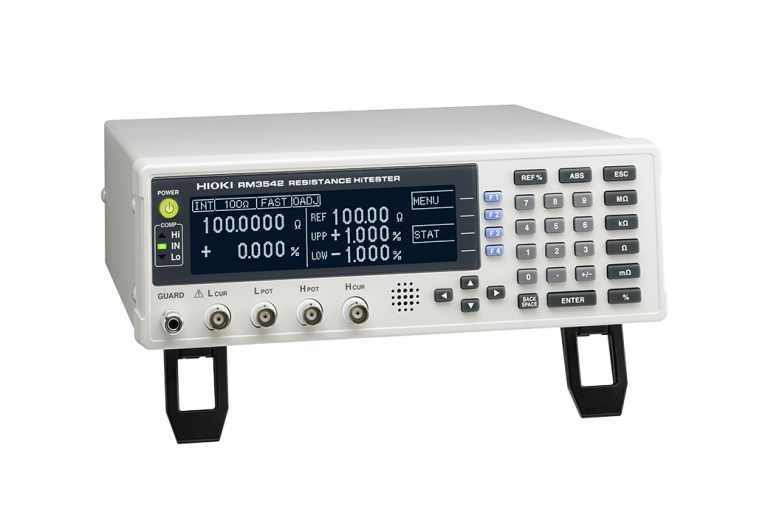

The Hioki RM3542-50 features a monochrome graphic LCD display with a white LED backlight, providing clear and easy-to-read measurements. It also includes a range of advanced functions, such as comparator, delay, and OVC, to enhance measurement accuracy and efficiency.

Resistance range: 100 mΩ to 100 MΩ, 10 steps
Measurement accuracy: ±0.015 % rdg. ±0.002 % f.s.
Testing current: 100 mA DC to 100 nA DC
Display: Monochrome graphic LCD 240 × 64 dot, white LED backlight
Power supply: 100 to 240 V AC, 50/60 Hz, 30 VA max.
Dimensions: 260 mm W × 88 mm H × 300 mm D, 2.9 kg

Who Needs the Hioki RM3542-50?

The Hioki RM3542-50 is designed for professionals who require precise electrical measurements, including electrical engineers, researchers, and technicians. Its advanced features and high measurement accuracy make it an ideal tool for a variety of applications, from testing and verifying electrical circuits to measuring electrical properties of materials.

Whether you’re working in a laboratory, factory, or field, the Hioki RM3542-50 is a reliable and efficient instrument that can help you achieve accurate and reliable results.

Hioki RM3542-50 Applications

The Hioki RM3542-50 has a wide range of applications, including:

Testing and verifying electrical circuits
Measuring electrical properties of materials
Electrical engineering and research
Quality control and testing

Why Buy Hioki RM3542-50 from MME?

Browse our electrical instruments. Read more in our electrical safety standards guide.

At MME, we offer the Hioki RM3542-50 RESISTANCE HiTESTER at competitive prices, along with excellent customer service and support. Our team of experts is always available to help you with any questions or concerns you may have.

Whether you’re looking for a reliable instrument for your laboratory, factory, or field, the Hioki RM3542-50 is an excellent choice. Order now and experience the difference that MME can make.

Hioki RM3542-50 Specifications

Resistance range	[at Low Power OFF] 100 mΩ range (Max. 120.0000 mΩ, 0.1 μΩ resolution) to 100 MΩ range (Max. 120.0000 MΩ, 100 Ω resolution), 10 steps [at Low Power ON] 1000 mΩ range (Max. 1200.000 mΩ, 1 μΩ resolution) to 1000 Ω range (Max. 1200.000 Ω, 1 mΩ resolution), 4 steps
Display	Monochrome graphic LCD 240 × 64 dot, white LED backlight
Measurement accuracy	[with SLOW mode, at 100 mΩ range] ±0.015 % rdg. ±0.002 % f.s. [with SLOW mode, at 1000 Ω range] ±0.006 % rdg. ±0.001 % f.s. (the best case)
Testing current	[at 100 mΩ range] 100 mA DC to [at 100 MΩ range] 100 nA DC
Open-terminal voltage	20 V DC max.
Sampling rate	FAST, MEDIUM, SLOW, 3 settings
Measurement times	[at 100 Ω /1000 Ω ranges, with Low Power OFF] FAST: 0.9 ms, MED: 3.6 ms, SLOW: 17 ms (minimum time)
Integration time	0.1 ms to 100.0 ms, or 1 to 5 PLC at 50 Hz, 1 to 6 PLC at 60 Hz Note: PLC = one power line cycle (mains wave-form period)
Other functions	Comparator (compare setting value with measurement value), Delay (set to allow for mechanical delay of trigger input and probing, or set to allow for measurement object response), OVC (offset voltage compensation), Measurement fault detection, Probe short-circuit detection, Improve contact, Auto-memory, Statistical calculations, Settings monitor (when using two instruments, a difference in settings causes warning notification), Retry, Trigger function. etc,.

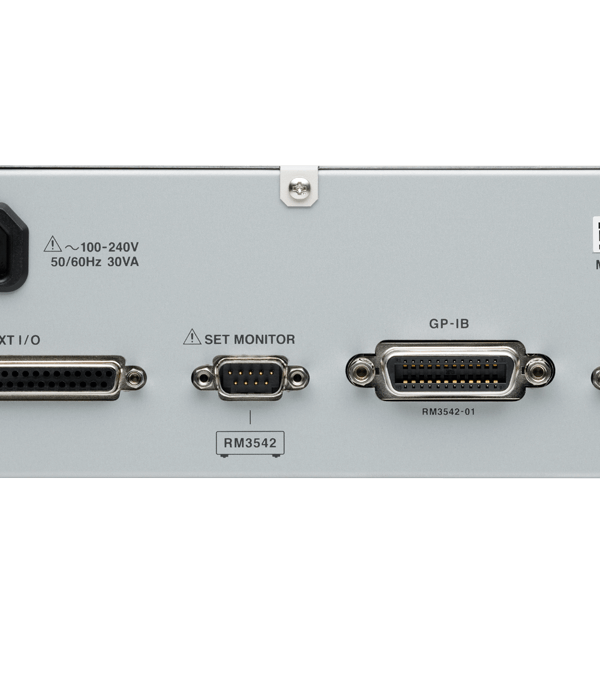

Interfaces	RS-232C, Printer, GP-IB (Model RM3542-01)
External I/O	Trigger, Hold input, Comparator output, Settings monitor terminal
Power supply	100 to 240 V AC, 50/60 Hz, 30 VA max.
Dimensions and mass	260 mm (10.24 in) W × 88 mm (3.46 in) H × 300 mm (11.81 in) D, 2.9 kg (102.3 oz)
Included accessories	Power cord ×1, EXT. I/O male connector ×1, Instruction manual ×1, Operation guide ×1
