Description

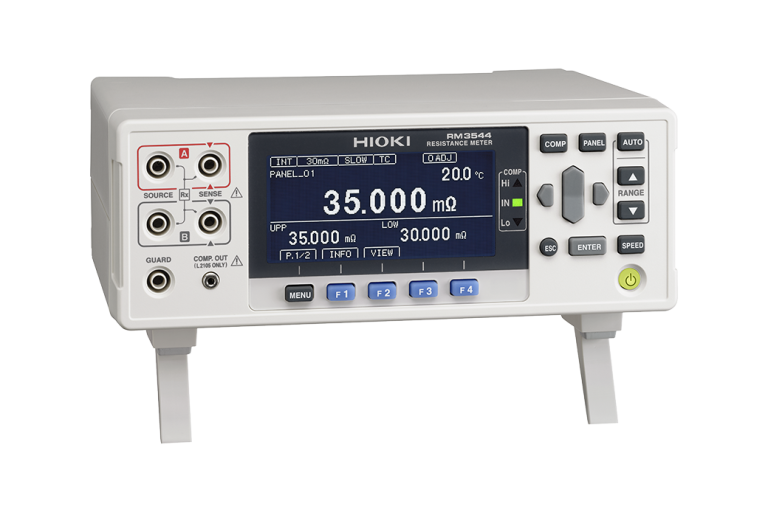

At Mohammad Mahdi Electronics, we understand the importance of precision measurement in electrical applications. That’s why we’re proud to offer the Hioki RM3544-01 Resistance Meter, a cutting-edge tool designed to meet the demands of professionals and hobbyists alike.

With its impressive 30 mΩ to 3 MΩ resistance range and ±0.020 % rdg. ±0.007 % f.s. measurement accuracy, this meter is perfect for a wide range of applications, from battery testers to Hioki instruments. The RM3544-01 also features a FAST, MED, SLOW measurement speed and temperature measurement capabilities, making it an indispensable tool for any electrical engineer or technician.

Hioki RM3544-01 Key Features

The Hioki RM3544-01 Resistance Meter boasts a range of advanced features, including:

Resistance range: 30 mΩ to 3 MΩ
Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.
Testing current: 300 mA DC to 500 nA DC
Open-terminal voltage: 5.5 V DC max.
Temperature measurement: -10.0 °C to 99.9°C
Measurement speed: FAST, MED, SLOW
Display refresh rate: N/A
Functions: Temperature correction, comparator, key-lock, display digit count selection

Who Needs the Hioki RM3544-01?

The Hioki RM3544-01 Resistance Meter is designed for professionals and hobbyists who require precision measurement in electrical applications. Whether you’re working on electrical safety standards or simply need a reliable tool for your projects, this meter is an excellent choice.

With its compact design and user-friendly interface, the RM3544-01 is perfect for use in a variety of settings, from laboratories to fieldwork. Its FAST, MED, SLOW measurement speed and temperature measurement capabilities make it an indispensable tool for any electrical engineer or technician.

Hioki RM3544-01 Applications

The Hioki RM3544-01 Resistance Meter has a wide range of applications, including:

Resistance measurement
Temperature measurement
Testing current measurement
Open-terminal voltage measurement

Why Buy Hioki RM3544-01 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we’re committed to providing our customers with the best possible products and services. That’s why we’re proud to offer the Hioki RM3544-01 Resistance Meter, a cutting-edge tool designed to meet the demands of professionals and hobbyists alike.

With its impressive 30 mΩ to 3 MΩ resistance range and ±0.020 % rdg. ±0.007 % f.s. measurement accuracy, this meter is perfect for a wide range of applications. And with our competitive pricing and excellent customer service, you can trust that you’re getting the best possible value for your money.

Hioki RM3544-01 Specifications

Resistance range	30 mΩ (35.000 mΩ display max., 1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display max., 100 Ω resolution), 9 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.
Testing current	[at 30 mΩ range] 300 mA DC to [at 3 MΩ range] 500 nA DC
Open-terminal voltage	5.5 V DC max.
Temperature measurement	-10.0 °Cto 99.9°C, accuracy: ±0.5 °C (Temperature Sensor Z2001 and RM3544 combined accuracy)
Measurement speed	FAST (50Hz: 21ms, 60Hz: 18ms) / MED (101ms) / SLOW (401ms)
Display refresh rate	N/A
Functions	Temperature correction, comparator (ABS/REF%), key-lock (OFF, menu lock, all lock), display digit count selection function (5 digits/ 4 digits), automatic power supply frequency settings (AUTO/50Hz/60Hz), scaling, judgment sound setting, auto hold, averaging, panel store/panel load
Memory storage	N/A

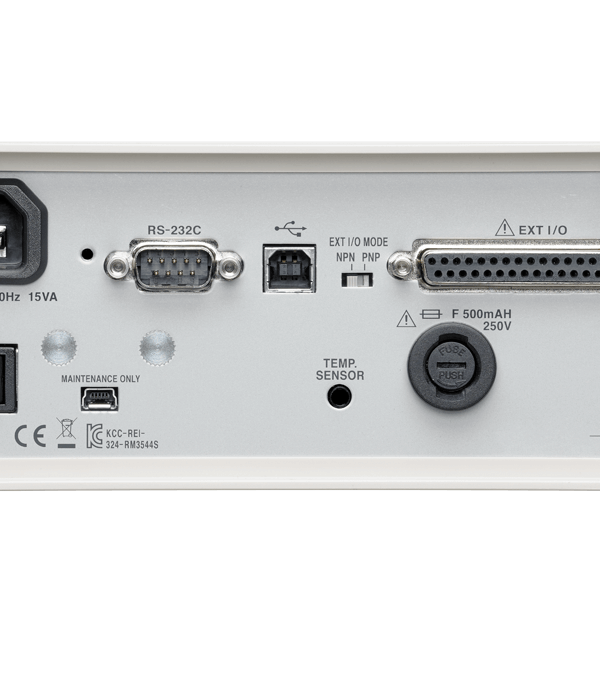

Communication interfaces	[Only RM3544-01] Select from RS-232C, Printer (RS-232C), or USB Remote function, communications monitor function, data output function
Power supply	100 to 240 V AC, 50/60 Hz, Rated power consumption: 15 VA
Dimensions and mass	215 mm (8.46 in) W × 80 mm (3.15 in) H × 166 mm (6.54 in) D [RM3544] 0.9 kg (31.7 oz), [RM3544-01] 1.0 kg (35.3 oz)
Included accessories	[RM3544] Power cord ×1, Clip type lead L2101 ×1, Instruction manual ×1, Spare fuse ×1 [RM3544-01] Power cord ×1, Clip type lead L2101 ×1, Male EXT. I/O connector ×1, Instruction manual ×1, USB cable (A-to-B type) ×1, Spare fuse ×1
