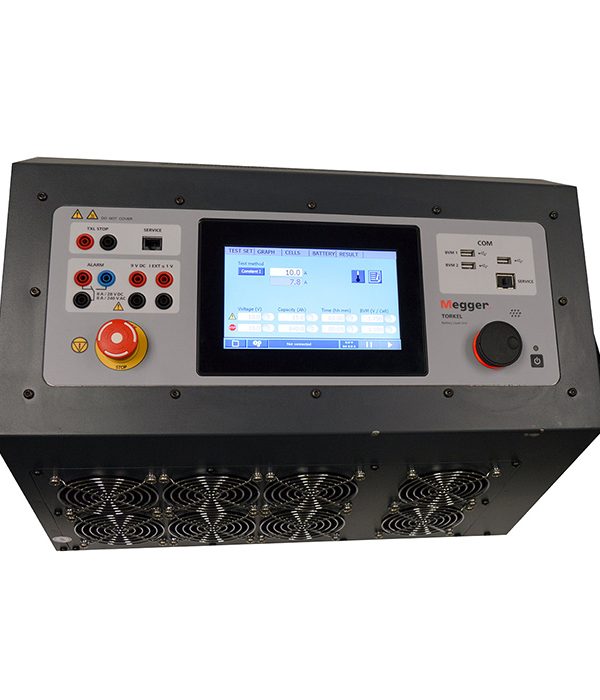

Megger TORKEL 900 Battery Discharge Test System
Brand:
Megger
SKU:
3634
The Megger TORKEL 900 series are portable battery load units for discharge and capacity testing of stationary battery banks in service, offering constant-current, constant-power, constant-resistance and profile modes, with current up to 220 A, system voltages to 500 V and expansion via TXL extra loads.
- Safe Buy
- Fast Delivery
- Original Guarantee
- Online Payment
Description
Overview
The Megger TORKEL 900 series are portable battery load units used to verify the true capacity and condition of stationary battery banks in substations, telecom sites, data centres, power plants and other installations where standby power must be dependable. A battery bank can be tested while it remains in service, and TORKEL controls the discharge so the battery is loaded exactly as required — making it easy to determine whether the bank still meets its rated capacity or has degraded and needs attention.
The series comprises three models. The TORKEL 910 handles currents up to 110 A at system voltages to 300 V; the TORKEL 930 doubles the current capability to 220 A at 300 V and adds battery voltage monitoring (BVM), charging measurement and full report functionality; and the TORKEL 950 offers the same 220 A capability for higher-voltage systems up to 500 V. All models discharge in constant-current, constant-power, constant-resistance or profile modes, and the 930 and 950 can be expanded with TXL extra load units when a single unit’s current is not enough. Results are stored and can be edited, analysed and reported in the included TORKEL Viewer PC software.
Key Features
- Tests stationary battery banks in service to confirm real capacity and condition.
- Discharge current up to 220 A, system voltage up to 500 V and up to 15 kW load, depending on model.
- Constant-current, constant-power, constant-resistance and current/power profile discharge modes.
- Expandable with TXL830/850/865/870/890 extra load units for higher current (930/950).
- Battery voltage monitoring (BVM), charging measurement and full reporting on 930 and 950.
- 7-inch capacitive colour touchscreen and TORKEL Viewer PC software for analysis and reporting.
- Portable, rugged construction with wide 100–240 V AC mains input.
Applications
- Capacity and discharge testing of stationary lead-acid and Ni-Cd battery banks.
- Commissioning and periodic maintenance testing in substations, power plants and telecom/UPS installations.
- Verifying battery bank performance against rated capacity before it is relied upon in an outage.
- Load-profile testing to simulate real discharge conditions.
What’s in the Box
- TORKEL 900-series battery load unit (910, 930 or 950 as ordered).
- TORKEL Viewer PC software (930/950).
- Current and voltage measurement cables and connectors.
- Mains lead, transport case and user documentation.
Exact contents depend on the model and accessories ordered; contact MME to confirm your configuration.
Why buy from MME in UAE
MOHAMMAD MAHDI Electronics Trading LLC (MME) is a trusted supplier of Megger test and measurement equipment across the UAE and the wider Gulf region. We offer genuine Megger products, competitive pricing, expert application support and reliable after-sales service to keep your battery testing programme running smoothly.
Download the Megger TORKEL 900-series datasheetVideos
02 - Megger TORKEL 900- Hardware Description and Overview
TORKEL 900 Sales Training Webinar - 4th Nov 201
Megger Torkel900_ Discharge Test Set Up
Specifications
Specifications
| SPECIFICATIONS – TORKEL 900 Series | |
|---|---|
| Specifications are valid at nominal input voltage and an ambient temperature of +25°C (77°F). Specifications are subject to change without notice. | |
| Environment | |
| Application Field | The instrument is intended for use in high-voltage substations and industrial environments. |
| Operating Temperature | 0°C to +50°C (32°F to +122°F) Power derating above +35°C (+95°F) |
| Storage & Transport | −40°C to +70°C (−40°F to +158°F) |
| Humidity | 5% – 95% RH, non-condensing |
| Shock/Vibration/Fall (Instrument only) | ETSI EN 300 019-2-7 class 7M2 |
| Shock/Vibration/Fall (In transport case) | ISTA 2A |
| Altitude (Operating) | 3000 m (10,000 ft) |
| Altitude (Storage) | 10,000 m (33,000 ft) |
| Encapsulation Class | IP20 |
| CE Marking | |
| LVD | 2014/35/EU |
| EMC | 2014/30/EU |
| RoHS | 2011/65/EU |
| General | |
| Mains Voltage | 100 – 240 V AC, 50/60 Hz |
| Power Consumption | 200 W (max) |
| Power Interruption | 40 ms (max) |
| Protection | Thermal cut-outs, Automatic overload protection, Emergency stop button |
| Dimensions | 519 × 315 × 375 mm (20.5” × 12.4” × 14.7”) |
| Weight | 19.5 kg (43.0 lbs) instrument 31.9 kg (70.3 lbs) with standard transport case 39.2 kg (86.4 lbs) with large transport case and cables |
| Display | 7″ LCD capacitive touch screen |
| Available Languages | Czech, English, French, German, Romanian, Russian, Spanish, Swedish |
| Number of Test Files | 30 (max) |
| Test Time | 240 h (max) |
| Measurement Section | |
| Current Measurement | |
| Display Range | 0.0 to 2999.0 A |
| Basic Inaccuracy | ±(0.5% of reading + 0.1 A) |
| Resolution | 0.1 A |
| Internal Current Measurement | |
| TORKEL 910 | 0 to 110 A |
| TORKEL 930/950 | 0 to 220 A |
| Input for Clamp-on Probe | |
| Range | 0 to 1000 mV DC |
| mV/A Ratio | 0.30 mV/A to 100.00 mV/A |
| Input Impedance | >1 MΩ |
| Voltage Measurement | |
| Voltage | 0 to 500 V DC |
| Inaccuracy | ±(0.5% of reading + 0.1 V DC) |
| Resolution | 0.1 V |
| Sample Rate | 10 Hz (values saved when change >10 mV) |
| Time Measurement | |
| Inaccuracy | ±0.1% of reading ±1 digit |
| Load Section | |
| Battery Voltage | 7.5 V³ to 300 V¹ / 500 V² |
| Power | 15 kW (max) |
| Load Patterns | Constant current, constant power, constant resistance, current or power profile |
| Constant I (Current) | |
| TORKEL 910 | 0 to 110.0 A |
| TORKEL 930/950 | 0 to 220.0 A |
| Inaccuracy | ±(0.5% + 0.2 A) |
| Resolution | 0.1 A |
| Ripple (max) | 0.5 A peak |
| Constant R (Resistance) | |
| Range | 300 mΩ to 3 kΩ |
| Inaccuracy | ±1% typical |
| Resolution | 100 mΩ |
| Constant P (Power) | |
| Range | 0 to 15 kW |
| Inaccuracy | ±1% typical |
| Resolution | 10 W |
| Inputs | |
| + Terminal | 7.5 to 300 V¹ / 7.5 to 500 V² |
| − Terminal | 0 V |
| I EXT ≤ 1 V | 1 V DC, 300 V DC to ground |
| Voltage Sense | Impedance to current terminals >1 MΩ |
| Outputs | |
| ALARM | Relay contact: 28 V DC 8 A, 240 V AC 8 A (Devices above Cat II not to be attached) |
| TXL STOP | Relay contact: 250 V DC 0.28 A, 28 V DC 8 A, 250 V AC 8 A |
| 9 V DC Output | 9 V DC ±7%, max 100 mA |
| Communication Ports | |
| BVM1 / BVM2 | USB connection for BVM units |
| USB | Connection for USB memory, report export, or PC connectivity |
| Notes | |
| ¹ TORKEL 910 and 930 ² TORKEL 950 ³ On SW from R02G (Min voltage 2V) | |
