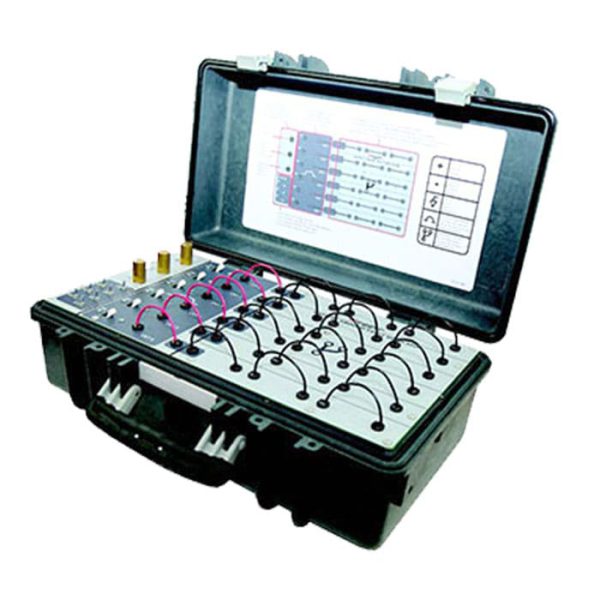

Megger BGFS Battery Ground Fault Simulator

Megger BGFS Battery Ground Fault Simulator

The Megger BGFS (Battery Ground Fault Simulator) is a demonstration and training tool for the Megger Ground Fault Tracer (BGFT) and Megger Battery Ground Locator (BGL). It provides a simple, repeatable way to simulate a range of characteristic earth faults on battery systems, so technicians can learn and practise ground-fault location safely before working on live installations. The BGFS can simulate positive or negative grounding, resistive and phantom (capacitive) grounding, and single or multiple grounds, making it the ideal platform for training and equipment demonstration.

Who the Megger BGFS is for

The Megger BGFS (cat. no. BGFS) is for utility, power-plant and telecom battery teams, and for training centres, that use the Megger BGFT tracer or BGL locator to find ground faults on DC battery systems. Instead of waiting for a real fault on a live string, an instructor can set repeatable positive, negative, resistive and capacitive (phantom) faults and let technicians practise characterising and tracing them, including use of the Wheatstone bridge on the BGFT.

From Megger’s BGFS datasheet (BGFS_DS_US_V01) and user guide (BGFS-UG-EN Rev 4, July 2022):

• Seven switchable faults on six circuits: positive 2 kΩ, 50 Ω and 1 kΩ; negative 10 kΩ and 330 kΩ; plus one positive and one negative phantom fault of about 4.5 µF
• No mains or battery needed: the test current comes from the connected BGFT or BGL
• Operating 0 to 40 °C, storage -20 to +55 °C, 20–90% RH non-condensing, up to 2000 m
• Case 55 × 30 × 21 cm closed (14 cm high with the lid off); weight 6.3 kg (13.9 lb)

MME is an authorized Megger representative in the UAE. Browse our battery testers and the Megger range. Train on the BGFS with the Megger BGFT battery ground fault tracer (locates faults to 399 kΩ) or the Megger BGL battery ground fault locator (to 100 kΩ). For cell impedance checks on the same battery banks, see the Megger BITE5.

Key features of the Megger BGFS ground fault simulator

What the Megger BGFS lets an instructor set up:

• Positive or negative grounding – simulate earth faults on either pole of a battery system.
• Resistive faults 50 Ω to 330 kΩ – five resistive ground faults (50 Ω, 1 kΩ, 2 kΩ, 10 kΩ and 330 kΩ) for realistic training scenarios (±5% on the US datasheet).
• Capacitive (phantom) faults – about 4.5 µF capacitive grounds on one positive and one negative circuit (Megger user guide fault table) to reproduce virtual grounding.
• Single or multiple grounds – simulate one or several simultaneous faults.
• Ideal training platform – purpose-built to demonstrate and practise with the Megger BGFT tracer and BGL locator.
• Portable – self-contained case for classroom and field training.

Megger BGFS applications

Where training teams use the Megger BGFS:

• Training technicians in battery ground-fault location.
• Demonstrating the Megger BGFT tracer and BGL locator.
• Validating fault-location procedures on simulated resistive and capacitive faults.

What’s in the box – Megger BGFS

What ships with the Megger BGFS (cat. no. BGFS):

• Megger BGFS battery ground fault simulator (in case)
• Connection leads
• Documentation

Exact supplied accessories can vary by order; confirm with MME when purchasing.

Megger BGFS FAQ

What trainers ask before ordering a BGFS:

• Does the BGFS need power? No. Megger lists the input power rating as none; the BGFT or BGL supplies the test current.
• BGFT or BGL for training? The BGFT is a two-part transmitter and receiver with an on-board Wheatstone bridge, locating faults to 399 kΩ. The BGL is one piece, locates to 100 kΩ and measures capacitance and resistance directly.
• What is a phantom fault? Megger defines it as a perceived short from one side of the string to earth caused by high capacitance. The BGFS teaches crews to tell it apart from a real resistive fault.
• Can it simulate more than one fault at once? Yes. Switches can be combined for single or multiple grounds, including a circuit that carries both a resistive and a capacitive fault.
