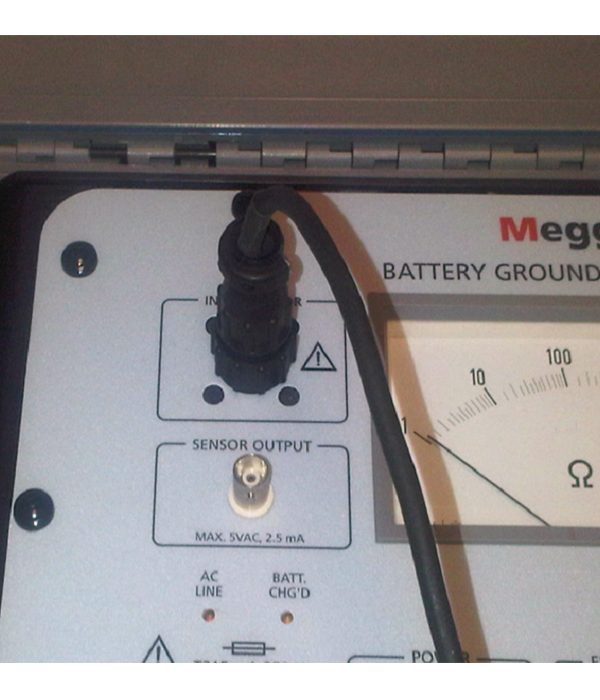

Megger BGL Battery Ground Fault Locator

Megger BGL Battery Ground Fault Locator

The Megger BGL was developed to detect, monitor and locate grounding faults on battery systems without segmenting the battery. It works on active or dead battery systems up to 260 V DC and reads grounding resistance directly. To save hours of unnecessary troubleshooting, the BGL easily distinguishes resistive fault current from capacitive load current — by measuring the 25 Hz power dissipated in the grounding resistance it eliminates the effects of charging current from voltage-spike suppression capacitors, so it can detect and monitor genuine leakage paths and even track two or more ground faults simultaneously.

Key features of the Megger BGL ground fault locator

• No battery segmenting – detects, monitors and locates ground faults on active or dead battery systems up to 260 V DC.
• Direct resistance reading – reads grounding-fault resistance directly from 1 Ω to 100 kΩ.
• Resistive vs. capacitive discrimination – measures 25 Hz power in the grounding resistance to ignore capacitive charging current.
• Multiple-fault tracking – can simultaneously track two or more ground faults.
• Flexible clamps – standard 50 mm (2 in) clamp to 20 A DC, with optional 5 A mini clamp and 50 A busbar clamp.
• Continuous monitoring – mains powered with lead-acid rechargeable battery backup.

Megger BGL applications

• Locating and monitoring ground faults on station and UPS battery systems.
• DC control-system leakage detection in substations and plants.
• Distinguishing real faults from capacitive load current on filtered systems.

What’s in the box – Megger BGL

• Megger BGL battery ground fault locator
• Standard clamp-on current sensor (50 mm)
• Connection leads and documentation

Optional mini and busbar clamps are available; confirm the configuration with MME when purchasing.

Why buy the Megger BGL from MME in UAE

MOHAMMAD MAHDI Electronics Trading LLC (MME) supplies genuine Megger battery and DC test equipment across the UAE and the GCC, with application support and after-sales service. Contact MME for pricing and availability of the BGL battery ground fault locator.
