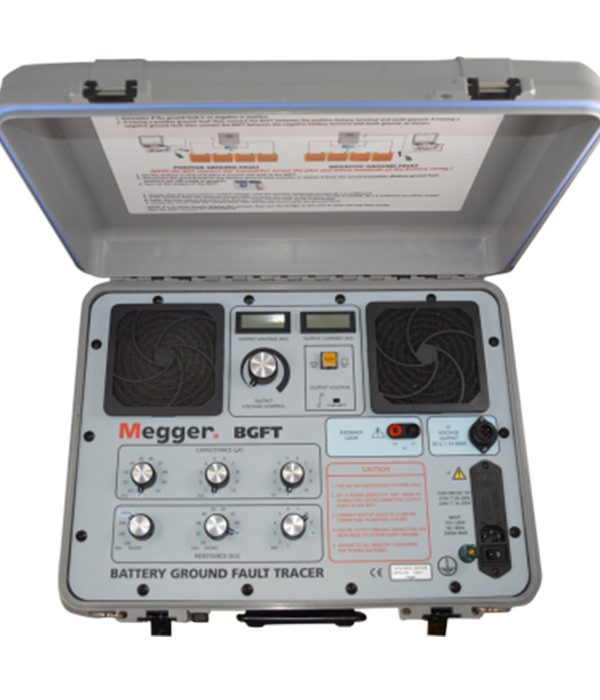

Megger BGFT-Battery Ground Fault Tracer
The battery ground fault tracer is a dual range economical, easy-to-use instrument that identifies, traces, and locates ground faults in ungrounded dc systems. It is particularly effective in high electrical noise environments, as the strength of the test signal can be adjusted.
The Battery Ground Fault Tracer’s dual range provides added safety in the low range, while the high range offers the ability to locate high impedance faults.
Megger BGFT Key Features
- Easily locates ground faults in ungrounded dc systems
- Operates in high electrical noise environment
- High/low switch provides the needed safety and power to locate high impedance faults
- Locates faults on systems with high capacitance
Megger BGFT Specifications
| Category | Specification |
| Transmitter | 246100C: 115 V AC ±10% @ 50/60Hz, 200 VA max |
| 246100C-47: 230 V AC ±10% @ 50/60Hz, 200 VA max | |
| Receiver | One 9-volt alkaline battery supplies up to 40 hours continuous use at 20°C (estimated). |
| Source Voltage | Variable from 0 to 15 V rms in low range |
| Variable from 0 to 50 V rms in high range | |
| Source Current | Load dependent from 0 to 1.7 A rms |
| Source Frequency | 20 Hz, ±2% |
| Fault Resistance | 1 kΩ to 399 kΩ at 50 V; bridge accuracy ±10% |
| Line Capacitance | 0.01 to 11.1 µF; bridge accuracy ±20% |
| Display | Transmitter: Separate 3-digit LCD meters for volts and current |
| Accuracy | ±5% |
| Receiver: Digital meter display up to 1.999 (three gain selections) | |
| Temperature Range | Operating: 32°F to 105°F (0°C to 40°C) |
| Storage: -5°F to +130°F (-20°C to +55°C) | |
| Dimensions | Transmitter: 7.5 H x 18.5 W x 14.6 D in. (19 H x 47 W x 37 D cm) |
| Receiver: 1.5 H x 3.5 W x 7.5 D in. (4 H x 9 W x 19 D cm) | |
| Weight | Transmitter: 35 lb (15.9 kg) |
| Receiver: 0.66 lb (0.3 kg) |
