Description

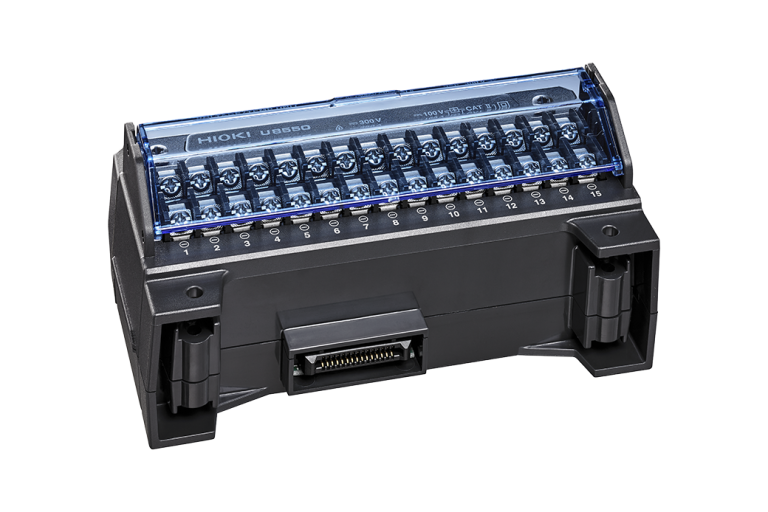

At Mohammad Mahdi Electronics, we offer the Hioki U8550 Voltage/Temp Unit, a precision measurement instrument designed for electrical applications. This unit is perfect for recorders and dataloggers and provides accurate measurements of voltage, temperature, and humidity.

The Hioki U8550 features 15 channels for simultaneous measurement, with a voltage measurement resolution of 10 mV to 100 V. It also supports thermocouple temperature measurement from -100.00℃ to 2000.0℃. Additionally, it is connectable to instruments such as the Memory HiLogger LR8450 and LR8450-01.

Hioki U8550 Key Features

The Hioki U8550 offers a range of key features, including:

15 channels for voltage, temperature, and humidity measurement
10 mV to 100 V voltage measurement resolution
Thermocouple temperature measurement from -100.00℃ to 2000.0℃
Connectable instruments including Memory HiLogger LR8450 and LR8450-01
Compact design with M3 screw-type terminal block
Operating temperature from -10°C to 50°C
Storage temperature from -20°C to 60°C

Who Needs the Hioki U8550?

The Hioki U8550 is designed for electrical applications and is perfect for measurement guides and Hioki instruments. It is ideal for use in a variety of industries, including electrical engineering, electronics, and manufacturing.

The Hioki U8550 is also suitable for use in a range of applications, including Hioki instruments and recorders and dataloggers.

Hioki U8550 Applications

The Hioki U8550 has a range of applications, including:

Electrical engineering
Electronics
Manufacturing
Measurement guides
Hioki instruments

Why Buy Hioki U8550 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Hioki U8550 Voltage/Temp Unit at a competitive price. We also provide excellent customer service and support, ensuring that you get the most out of your purchase.

Whether you are looking for a precision measurement instrument for electrical applications or a reliable supplier of Hioki instruments, Mohammad Mahdi Electronics is the perfect choice.

Hioki U8550 Specifications

Connectable instruments	Memory HiLogger LR8450 (Designed for use with plug-in units only) Memory HiLogger LR8450-01 (Wireless LAN model)
Operating temperature and humidity	-10°C to 50°C, 80% RH or less (no condensation)
Storage temperature and humidity	-20°C to 60°C, 80% RH or less (no condensation)
Vibration resistance	JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
Included accessories	Instruction manual × 1, mounting screw × 2
Number of input channels	15 ch (Able to set voltage, temperature using the thermocouple, and humidity for each channel)
Input terminals	M3 screw-type terminal block (2 terminals per channel)
Measurement target	Voltage, temperature using the thermocouple, and humidity
Input type	Scanning by semiconductor relays All channels isolated (Not isolated when measuring humidity)
Voltage measurement (resolution)	10 ｍV f.s. (500 nV), 20 mV f.s. (1μV), 100 mV f.s. (5μV), 200 mV f.s. (10μV), 1 V f.s. (50μV), 2 V f.s. (100μV), 10 V f.s. (500μV), 20 V f.s. (1 mV), 100 V f.s. (5 mV), 1-5 V f.s. (500μV)
Temperature measurement (thermocouple)	K: -100.00℃ to 1350.0℃ J: -100.00℃ to 1200.0℃ E: -100.00℃ to 1000.0℃ T: -100.00℃ to 400.0℃ N: -100.00℃ to 1300.0℃ R: 0.00℃ to 1700.0℃ S: 0.00℃ to 1700.0℃ B: 400.0℃ to 1800.0℃ C: 0.00℃ to 2000.0℃
