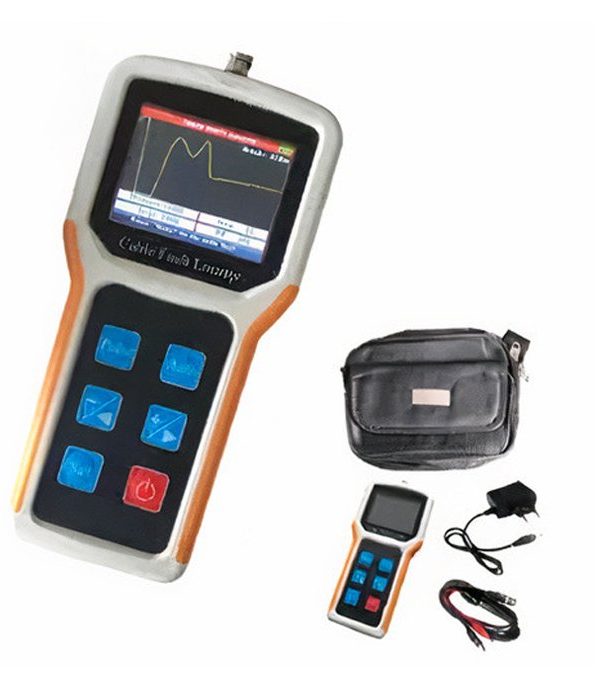

Kehui T-900 Hand-held TDR

The Kehui T-900 Hand-held TDR is an essential tool for anyone working on metallic cables. It accurately locates faults on metallic cables, which is essential for maintenance and repair work. The T-900 is compact and easy-to-use, making it an excellent choice for those who need to locate faults on metallic cables. Its digital gain control allows for accurate measurements, and its data transfer via USB flash memory for analysis on a PC makes it easy to record and analyze data. The T-900 can also compare TDR traces from the three phases of a faulty cable, which can be used to identify differences between them, providing another useful aid to fault location.

SKU:69542

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

17People watching this product now!

Kehui T-900 Hand-held TDR

The Kehui T-900 Hand-held TDR is a compact and easy-to-use instrument for accurately locating open-circuit and low-impedance faults on metallic cables, using time-domain reflectometry (TDR). In this article, we will discuss the main features and benefits of the Kehui T-900 Hand-held TDR.

Features

The Kehui T-900 Hand-held TDR has several features that make it an excellent tool for locating faults on metallic cables. These features include:

  • Compact and easy-to-use
  • Accurately locates open-circuit and low-impedance faults on metallic cables
  • Calculates the velocity of propagation (VOP) of a known length of cable or measures the length of cable on a drum, where the VOP is known
  • Available in three versions with 8, 16, or 32 km range
  • Digital gain control
  • Data transfer via USB flash memory for analysis on a PC
  • Compares TDR traces from the three phases of a faulty cable, which can be used to identify differences between them, providing another useful aid to fault location

Benefits

The Kehui T-900 Hand-held TDR provides several benefits to those who use it. These benefits include:

  • Accurately locates faults on metallic cables, which is essential for maintenance and repair work
  • Compact and easy-to-use, making it an excellent choice for those who need to locate faults on metallic cables
  • Calculates the velocity of propagation (VOP) of a known length of cable or measures the length of cable on a drum, where the VOP is known
  • Available in three versions with 8, 16, or 32 km range, which provides flexibility for different applications
  • Digital gain control, which allows for accurate measurements
  • Data transfer via USB flash memory for analysis on a PC, which makes it easy to record and analyze data
  • Compares TDR traces from the three phases of a faulty cable, which can be used to identify differences between them, providing another useful aid to fault location

How it Works

The Kehui T-900 Hand-held TDR uses time-domain reflectometry (TDR) to locate faults on metallic cables. TDR works by sending a pulse down the cable and measuring the time it takes for the pulse to reflect back from the fault. The T-900 can calculate the velocity of propagation (VOP) of a known length of cable or measure the length of cable on a drum, where the VOP is known. The unit can also compare TDR traces from the three phases of a faulty cable, which can be used to identify differences between them, providing another useful aid to fault location.

Kehui T-900 Hand-held TDR Specifications:

  • Range: 8km (16 and 32km are also available as options)
  • Accuracy: ±0.5% of range
  • Resolution: Minimum resolution 1m
  • Pulse: ±30v, 40ns-10us with automatic adjustment
  • Sampling rate: 100MHz
  • Balance: 25 – 300Ω automatically adjusted
  • Velocity of propagation: 40-300m/µs
  • Dead zone: There is no dead zone
  • Power consumption: 1W
  • Batteries: Lithium, 2 pcs of 18650 batteries in series
  • Charger Input: AC110-240V, output: 8.4V
  • Battery life: 10 hours
  • Dimensions: 204 x 100 x 36 mm
  • Weight: 0.38kg
  • Operating temperature: -15 °C to +50 °C
  • Ingress Protection: IP53
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “Kehui T-900 Hand-held TDR”

Brand

Kehui

Kehui Instruments

With a strong commitment to quality and innovation, The Kehui empower professionals and industries to achieve excellence through precise measurements and data analysis.Kehui is your dependable partner for an extensive selection of measurement tools, each created to satisfy the stringent requirements of numerous industries. No matter if you work in production, R&D, or quality control, our instruments offer the dependability and accuracy you want.

As a well-known distributor, MMElectronic is pleased to meet all of your requirements for kehui products at cost-effective pricing.

Datasheet

Datasheet

Datasheet

Specifications

Mechanical and General Specifications
Dimensions

204 x 100 x 36 mm

Weight

0.38kg

IP rating

IP53

Power

Charger: Input: AC110-240V, output: 8.4V, Lithium, 2 pcs of 18650 batteries in series

Operating temperature

-15oC to +50oC

Measurement Unit

km

More
Others

Pulse: ±30v, 40ns-10us with automatic adjustment
Sampling rate: 100MHz
Balance: 25 – 300Ω automatically adjusted
Velocity of propagation: 40-300m/µs
Dead zone: There is no dead zone

Distance Measurement(Range/Accuracy/Resolution)

Accuracy: ±0.5% of range, Range: 8km (16 and 32km are also available as options), Resolution: Minimum resolution 1m

Signal Frequency Adjustment

±30v, 40ns-10us with automatic adjustment
