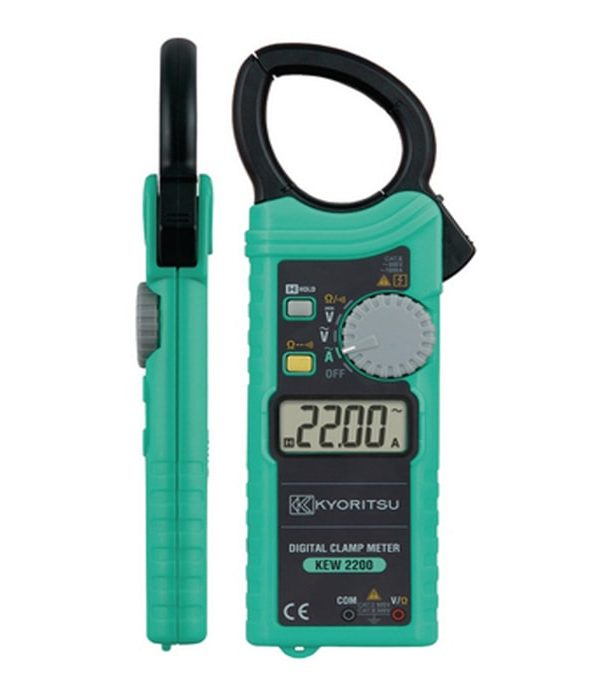

Kyoritsu 2200R Digital Clamp Meter

Kyoritsu 2200 R Digital Clamp Meter

The Kyoritsu 2200 R digital clamp meter is an essential tool for electricians, maintenance crews, and other professionals who need accurate electrical power measurements. this digital clamp meter is also an easy-to-use tool. With its compact design and simple user interface, users can quickly and accurately measure voltage, current, and other electrical parameters in circuits.

Advantages of the Kyoritsu Digital Clamp Meter:

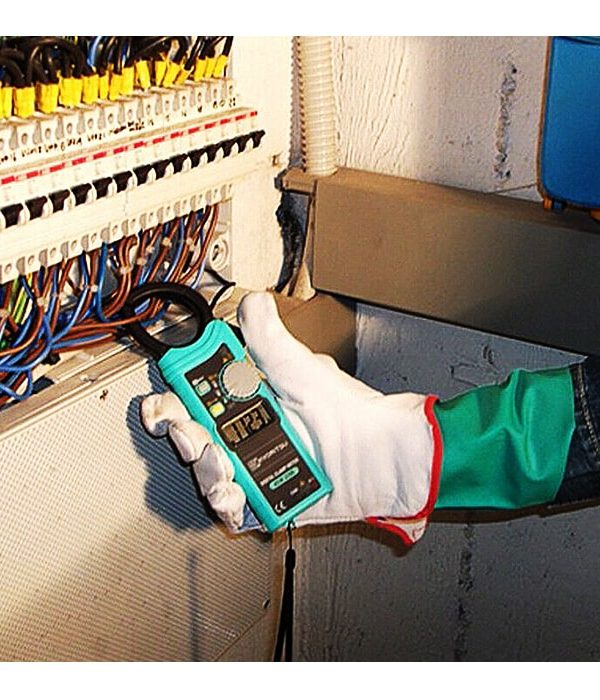

One of the most important advantages of the Kyoritsu 2200 R Digital Clamp Meter is that it enables non-invasive measurements. This clamp meter serves as a non-contact measuring tool and does not require direct contact with the power source. This allows users to avoid electrical hazards, thereby ensuring their safety.

What are the applications of the Kyoritsu 2200 R digital clamp meter?

Applications of this digital clamp meter include measuring electronic circuits, electric motor controls, etc.

Kyoritsu 2200 R price

Product Description:

The Kyoritsu KEW-2200R Digital Clamp Meter also features auto-ranging and min/max functions for clear and easy display of all numbers during testing, auto power off to conserve battery life, and test lead holder for easy portability.

kyoritsu kew 2200r Digital Clamp Meter Specifications:

• AC A : 40.00/400.0/1000A (Auto-ranging)±1.5%rdg±5dgt (45 – 65Hz)
  ±2.0%rdg±5dgt (40 – 1kHz)
• AC V: 4.000/40.00/400.0/600V (Auto-ranging)
  ±1.8%rdg±7dgt (45 – 65Hz)
  ±2.3%rdg±8dgt (65 – 500Hz)
• DC V : 400.0mV/4.000/40.00/400.0/600V (Auto-ranging)
  ±1.0%rdg±3dgt (400mV range is excluded.)
• Ω : 400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging)
  ±2.0%rdg±4dgt (0 – 400kΩ)
  ±4.0%rdg±4dgt (4MΩ)
  ±8.0%rdg±4dgt (40MΩ)
• Conductor size:  Ø33mm max
• Power source : R03/LR03 (AAA) (1.5V) × 2
  *continuous measuring time:
  approx. 120 hours (Auto power off approx. 10 minutes)
• Dimensions : 190(L) × 68(W) × 20(D)mm
• Weight: Approx. 120g (including batteries)
