Kyoritsu 2010 AC/DC Digital Clamp Meter
Short Description:
Kyoritsu AC/DC Digital Clamp Meters MODEL 2010 key features:
• High sensitivity, miniature AC/DC clamp meter.
• 0.1mA minimum resolution for AC current and 1mA minimum resolution for DC current.
• Output terminal for recorder connection.
Product purchase
Original price was: AED 1,830.AED 1,779Current price is: AED 1,779. (excl.VAT)
13
People watching this product now!
Terms of sending goods ›
Description

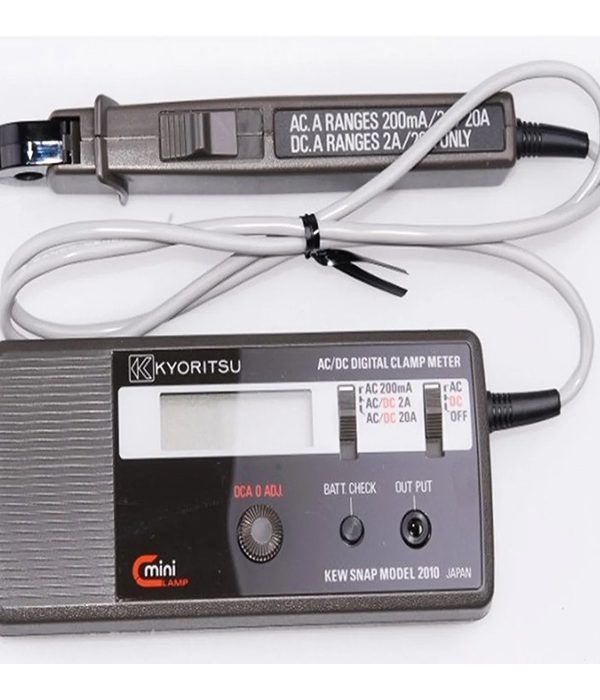

Kyoritsu AC/DC Digital Clamp Meters MODEL 2010
Designed for use on low-voltage circuits, this clamp meter is small in size and easy to transport. Clamp-on sensor is separated from the display unit, allowing the user to take easy measurements and readings in cramped quarters and around crowded wiring.
Compact, Durable & Built for the Field
Engineered for the toughest environments, the Kyoritsu 2010 features a rugged, ergonomic design that fits comfortably in your hand. The large clamp opening accommodates conductors up to 55mm, making it ideal for working with thick cables in power distribution panels and industrial sites. The IP-rated housing ensures durability against dust and impact, while the automatic shut-off function extends battery life, allowing for extended field use without interruptions. With this clamp meter, you’re equipped to handle high-power circuits with complete peace of mind.
Related Product
If you want to check another product click the link below:
- Kyoritsu 2002PA
datasheet
datasheet
specifications
specifications
| Specification | Details |
|---|---|
| AC Current (AC A) | 200mA / 2A / 20A ±1%rdg±2dgt [50/60Hz] (200mA) ±1.5%rdg±8dgt [40Hz – 2kHz] (200mA) ±1%rdg±2dgt [50/60Hz] (2A) ±2.5%rdg±10dgt [40Hz – 2kHz] (2/20A) |
| DC Current (DC A) | 2A / 20A ±1%rdg±2dgt (2A) ±1.5%rdg±4dgt (20A) |
| Conductor Size | Ø7.5mm max. |
| Frequency Response | DC, 40Hz – 2kHz |
| Output | Recorder: DC200mV against AC200mA/2/20A DC200mV against DC2/20A |
| Power Source | 6LR61 (9V) × 1 or AC Adaptor |
| Dimensions | 142(L) × 64(W) × 26(D)mm 153(L) × 23(W) × 18(D)mm (Clamp Sensor) |
