Description

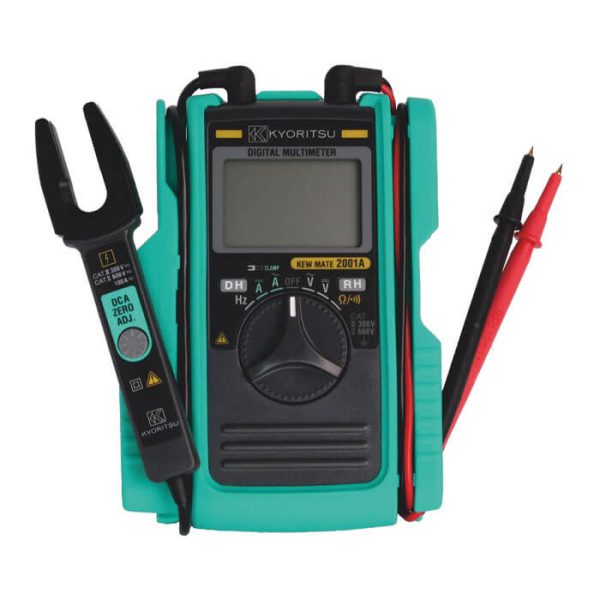

Kyoritsu KEWMATE 2001A
The Kyoritsu KEWMATE 2001A is a digital multimeter (DMM) manufactured by Kyoritsu, a Japanese company specializing in the production of electrical testing equipment. The KEWMATE 2001A is a compact and powerful instrument that can measure AC/DC voltage, resistance, continuity, and test diodes. kewMate 2001a digital multimeter has a 3-3/4 digit LCD display and a maximum reading of 3999.
This unit also has data hold, auto power off, and power indicator functions. The kew mate 2001a digital multimeter 600v100a is ideal for electricians, technicians, and homeowners who need a reliable and accurate tool to measure electrical parameters.
Features thin jaws, perfect to clamp wires even in tight spaces where a normal clamp meter is too big or wires are too short. Has a maximum resolution of 0.1A AC/DC.
Kyoritsu KEWMATE 2001A Key Features
- Capable of measuring AC and DC currents up to 100A with OPEN CLAMP SENSOR.
- 3400 counts with bar graph display.
- Pocket size and heavy-duty design.
to buy multimeter japan brand please contact us. similar products are KEW 2062, KEW 2060BT,KEW 2062BT,Kyoritsu 1110,kyoritsu 2012ra.
Kyoritsu KEWMATE 2001A Specifications
| Measurement | Range | Input Impedance | Accuracy |
|---|---|---|---|
| DC Voltage (DC V) | 340 mV / 3.4 / 34 / 340 / 600 V | 10 MΩ | ±1.5%rdg±4dgt |
| AC Voltage (AC V) | 3.4 / 34 / 340 / 600 V | 10 MΩ | ±1.5%rdg±5dgt (50 to 400 Hz) |
| DC Current (DC A) | 100 A | ±2%rdg±5dgt | |
| AC Current (AC A) | 100 A | ±2%rdg±5dgt (50/60 Hz) | |
| Resistance (Ω) | 340 Ω / 3.4 / 34 / 340 kΩ / 3.4 / 34 MΩ | ±1%rdg±3dgt (0 to 340 kΩ) | |
| ±5%rdg±5dgt (3.4 MΩ) | |||
| ±15%rdg±5dgt (34 MΩ) | |||
| Frequency AC A | 3.4 / 10 kHz | ±0.1%rdg±1dgt | |
| Frequency AC V | 3.4 / 34 / 300 kHz | ±0.1%rdg±1dgt | |
| Frequency Input Sensitivity | |||
| Current | More than 25 A | ||
| Voltage | More than 30 V | ||
| Continuity Buzzer | Buzzer sounds below 30±10 Ω | (Continuity buzzer works on 340 Ω range only) |
specifications
specifications
| Measurement | Range | Input Impedance | Accuracy |
|---|---|---|---|
| DC Voltage (DC V) | 340 mV / 3.4 / 34 / 340 / 600 V | 10 MΩ | ±1.5%rdg±4dgt |
| AC Voltage (AC V) | 3.4 / 34 / 340 / 600 V | 10 MΩ | ±1.5%rdg±5dgt (50 to 400 Hz) |
| DC Current (DC A) | 100 A | ±2%rdg±5dgt | |
| AC Current (AC A) | 100 A | ±2%rdg±5dgt (50/60 Hz) | |
| Resistance (Ω) | 340 Ω / 3.4 / 34 / 340 kΩ / 3.4 / 34 MΩ | ±1%rdg±3dgt (0 to 340 kΩ) | |
| ±5%rdg±5dgt (3.4 MΩ) | |||
| ±15%rdg±5dgt (34 MΩ) | |||
| Frequency AC A | 3.4 / 10 kHz | ±0.1%rdg±1dgt | |
| Frequency AC V | 3.4 / 34 / 300 kHz | ±0.1%rdg±1dgt | |
| Frequency Input Sensitivity | |||
| Current | More than 25 A | ||
| Voltage | More than 30 V | ||
| Continuity Buzzer | Buzzer sounds below 30±10 Ω | (Continuity buzzer works on 340 Ω range only) |
