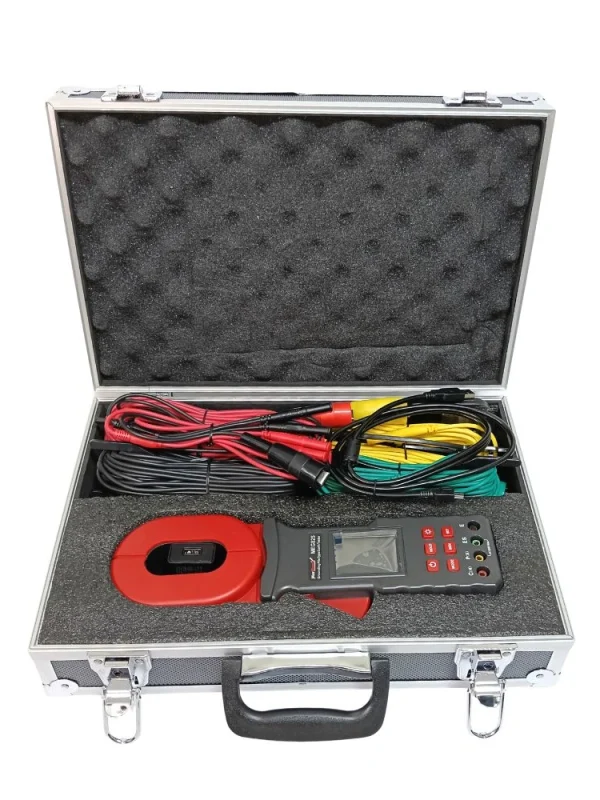

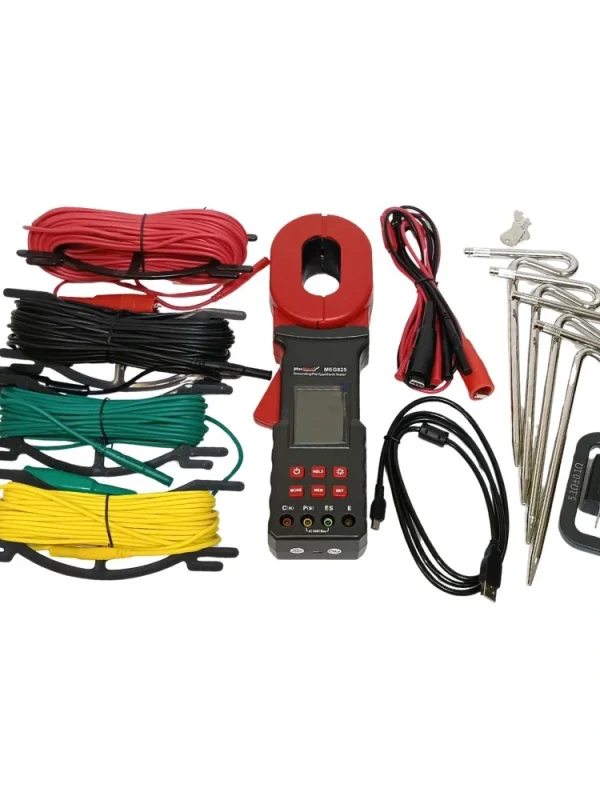

Marmonix MEG825 Clamp on Ground Tester

Short Description:

The Marmonix MEG825 Clamp-On Ground Tester combines precision, safety, and user-friendly features, making it an invaluable tool for professionals responsible for maintaining and inspecting electrical grounding systems. Its advanced capabilities and broad application range ensure accurate and efficient measurements, contributing to the overall safety and reliability of electrical installations.

  • 0.00Ω ~ 20kΩ Resistance Range
  • 0Ωm ~ 9999kΩm Soil Resistivity Range
  • 0.000mA ~ 20A Earth Current Range
Product purchase
SKU: 102074 Categories: ,
Brand:Marmonix

Call for Best Price In UAE 00971(04) 447 6031 00971(04) 344 9868

18 People watching this product now!
Terms of sending goods ›
  •  In-stock items are delivered within 2 business days.
  • We are not Supporting COD Payments Terms Outside UAE

Buy Marmonix MEG825

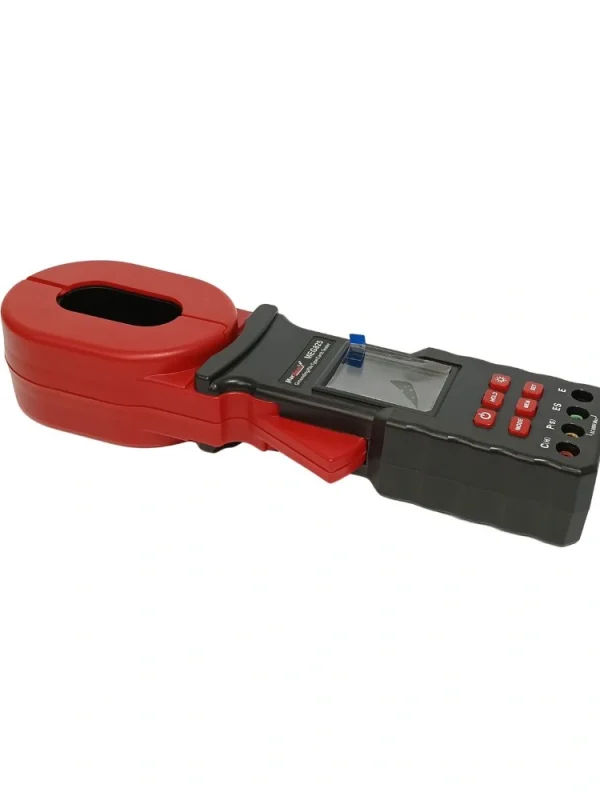

The Marmonix MEG825 Clamp-On Ground Tester is a sophisticated instrument designed to measure ground resistance and leakage currents in electrical systems precisely. Its clamp-on design facilitates non-intrusive testing, making it an indispensable tool for electrical maintenance, safety inspections, and system diagnostics professionals.

Key Features

The Marmonix MEG825 offers a broad measurement range, assessing ground resistance from 0.01 ohms to 1,200 ohms. This extensive range ensures accurate evaluations across various grounding conditions, catering to diverse industrial applications.

Equipped with a large jaw opening, the tester accommodates ground rods and conductor cables of substantial sizes, enhancing its applicability in different testing environments. The device also features a data hold function, allowing users to retain measurement readings for convenient analysis and record-keeping.

Safety is a paramount consideration in the MEG825’s design. The tester includes an automatic power-off feature to conserve battery life and prevent unintended operation. Additionally, it is engineered to perform measurements without disconnecting grounding systems, thereby minimizing the risk of accidental discharges and ensuring user safety.

Applications

The versatility of the Marmonix MEG825 makes it suitable for a wide range of applications:

  • Electrical Maintenance: Ideal for routine inspections of grounding systems in industrial and commercial facilities, ensuring compliance with safety standards and preventing potential electrical hazards.
  • Utility Services: Utility companies utilize them to assess the integrity of grounding in power distribution networks, thereby enhancing system reliability and safety.
  • Telecommunications: Ensures proper grounding of equipment to prevent electrical interference, thereby maintaining the quality and reliability of communication systems.

Marmonix MEG825 Specifications

The Marmonix MEG825 Clamp-On Ground Tester can measure Resistance in the range of 0.00Ω ~ 20kΩ and  Soil Resistivity in the range of 0Ωm ~ 9999kΩm.

Resistance Range Soil Resistivity
Range
Earth Current Range Earth Voltage Range Bluetooth
0.00Ω ~ 20kΩ 0Ωm ~ 9999kΩm 0.000mA ~ 20A 0.0V ~ 600.0V Yes

Base and Working Conditions

Influence Quantity Base Condition Working Conditions
Ambient Temperature 23℃ ± 1℃ -10℃ ~ 40℃
Ambient Humidity 40% ~ 60% <80%
Working Voltage DC 3.8V ± 0.2V DC 3.5V ~ 4.2V
Auxiliary Earth Resistance <100Ω <5kΩ
Interference Voltage Should avoid <5V
Interference Current Should avoid <1A
Electrode Distance (R) a > 5d a > 5d
Electrode Distance (ρ) a > 20h a > 20h

General Specifications

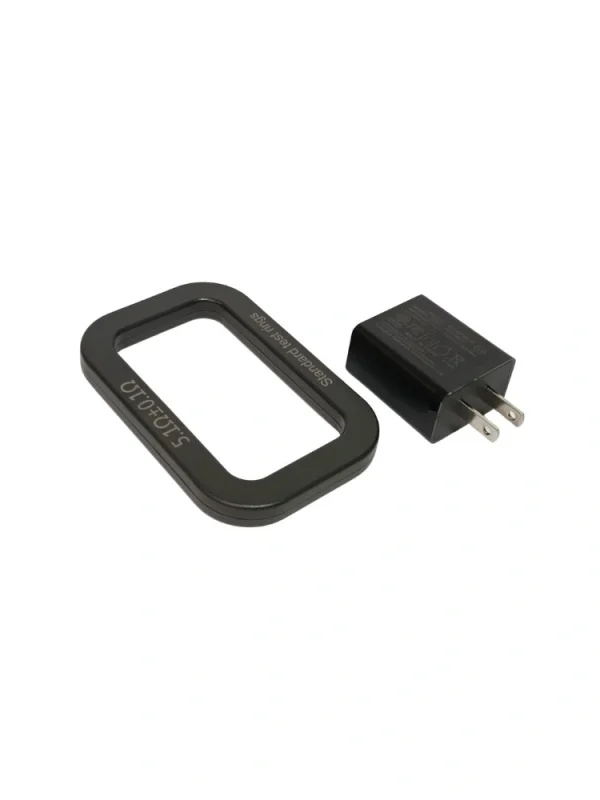

Power Supply DC 3.7V 2600mAh rechargeable battery (Full charge: ~4.2V)
Display Mode 2.5-inch colorful LCD screen
Earth Resistance Measurement Method Clamp method, 2-wire, 3-wire, 4-wire, and selection methods
Test Frequency 128Hz / 111Hz / 105Hz / 94Hz (Auto Frequency Control – AFC)
Short-circuit Test Current AC 10mA max
Open-circuit Test Current AC 14V max
Electrode Distance Range 1m – 100m

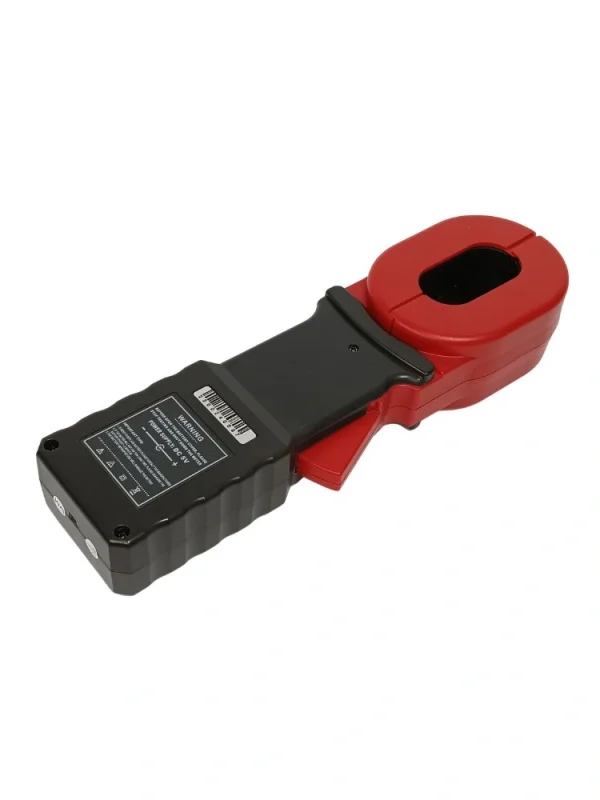

Clamp Size 65 × 32 mm
Tester Dimensions 307mm (H) × 98mm (W) × 56mm (D)
Tester Weight Clamp tester: 1112g (with battery); Total: 5.1kg (with all accessories)

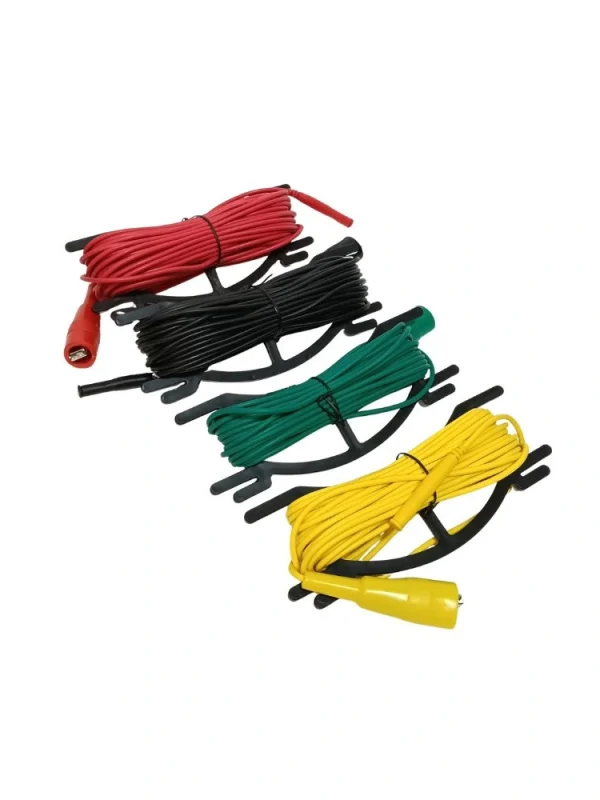

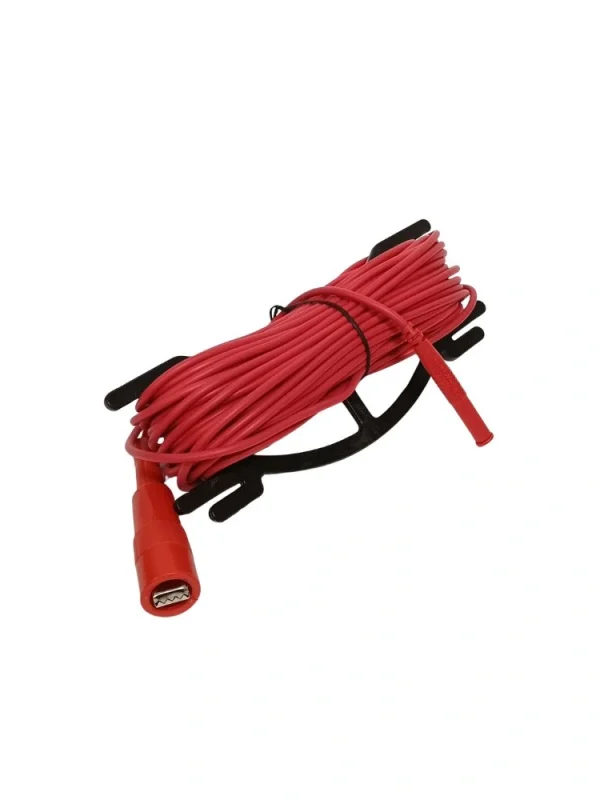

Test Wires Red: 20m, Black: 20m, Yellow: 10m, Green: 10m

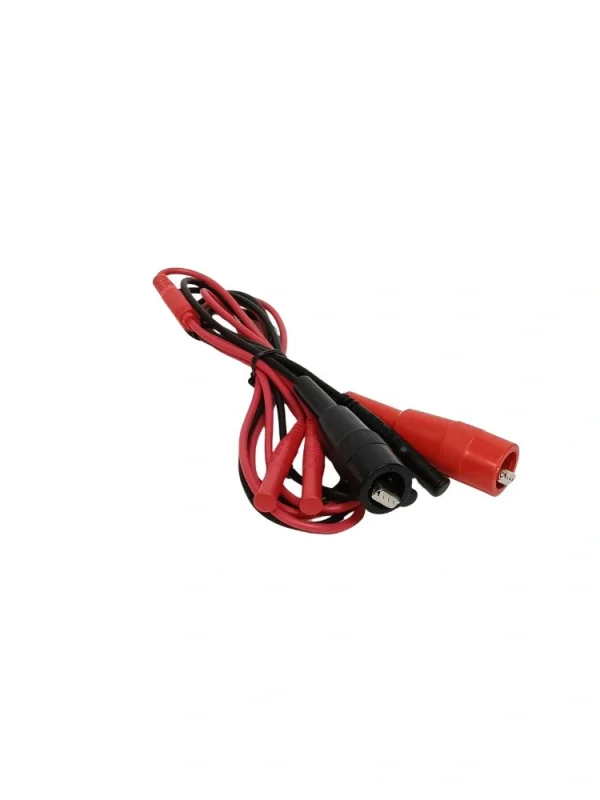

Simple Test Wires Red: 1.6m, Black: 1.6m

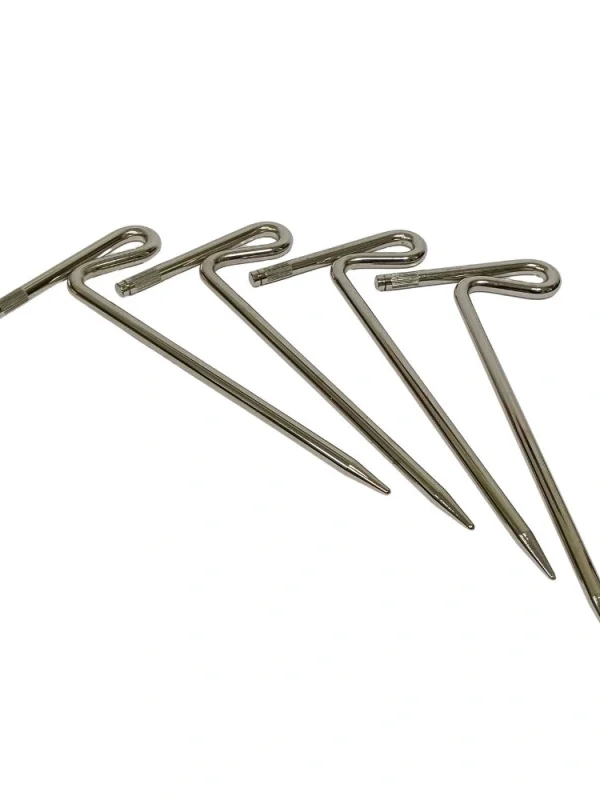

Auxiliary Grounding Rod 4PCS: Φ9mm × 230mm
Measuring Rate Earth Resistance: ~15s/test; Earth Current & Voltage: ~2 tests/second

Earth Resistance Measurement

Range (Ω) Accuracy Resolution (Ω)
0.010Ω ~ 0.099Ω ±(1%rdg + 0.05Ω) 0.001Ω
0.10Ω ~ 0.99Ω ±(1%rdg + 0.05Ω) 0.01Ω
1.0Ω ~ 49.9Ω ±(1%rdg + 0.5Ω) 0.1Ω
50.0Ω ~ 99.5Ω ±(2%rdg + 0.5Ω) 0.5Ω
100Ω ~ 199Ω ±(5%rdg + 1Ω)
*200Ω ~ 395Ω ±(10%rdg + 5Ω)
*400Ω ~ 590Ω ±(15%rdg + 10Ω) 10Ω
*600Ω ~ 880Ω ±(20%rdg + 20Ω) 20Ω
*900Ω ~ 1200Ω ±(25%rdg + 30Ω) ~
*1300Ω ~ 1600Ω ±(30%rdg + 100Ω) 100Ω

Buy the Marmonix MEG825 Clamp-On Ground Tester for a perfect blend of precision and safety. This user-friendly tool is essential for professionals overseeing the maintenance and inspection of electrical grounding systems. With its advanced capabilities and versatility, you can ensure accurate measurements, enhancing the overall safety and reliability of your electrical installations.
