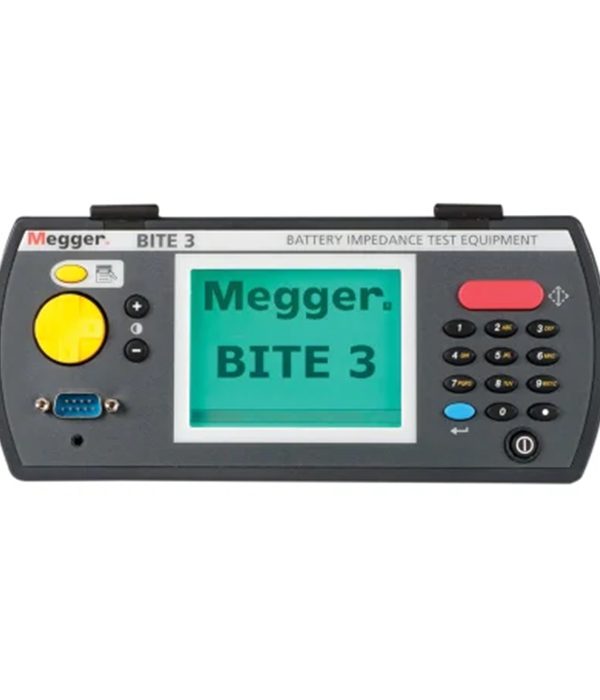

Megger BITE3 Battery Impedance Tester

Megger BITE3 Battery Impedance Tester

The Megger BITE3 battery impedance test equipment determines the health of lead-acid cells up to 2000 Ah by measuring the most important battery parameters. It measures cell impedance (an internal ohmic test), cell voltage, intercell connection resistance and ripple current, and — for the first time in a battery instrument — it also measures float current and the harmonic content of the ripple current, with a built-in spectrum analyser to display that harmonic content. Firmware can be upgraded over the internet and multiple languages are supported, making the BITE3 a comprehensive tool for stationary-battery maintenance.

Key features of the Megger BITE3 impedance tester

• Complete battery diagnostics – cell impedance, DC voltage, intercell strap resistance and ripple current in one instrument.
• Float current & harmonics – measures float current and the harmonic content of ripple current, with a built-in spectrum analyser.
• Wide impedance range – 0.05 mΩ to 600 mΩ (down to 1 µΩ resolution).
• Massive storage – stores more than 1 million cells’ data in any string configuration.
• PowerDB software – serial interface with PowerDB LITE (free) and full PowerDB for analysis and reporting.
• Field-ready – 1/4 VGA LCD, NiMH battery pack (2–4 hours), upgradeable firmware and multi-language support.

Megger BITE3 applications

• Impedance, voltage, strap-resistance and ripple/float-current testing of stationary batteries.
• Harmonic analysis of ripple current on charged battery systems.
• Predictive maintenance in utility, telecom and UPS installations.

What’s in the box – Megger BITE3

• Megger BITE3 battery impedance test instrument
• Test probes and leads
• NiMH battery pack and charger; PowerDB LITE software

An optional current-transformer kit and RS-232/USB adapters are available; confirm the configuration with MME when purchasing.
