Megger MIT230 Pocket-Sized Insulation and Continuity Testers

Looking to buy Megger MIT230 in Dubai, UAE? Discover the most affordable prices and top-notch quality here. Grab yours now!

SKU: 83529

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

11 People watching this product now!

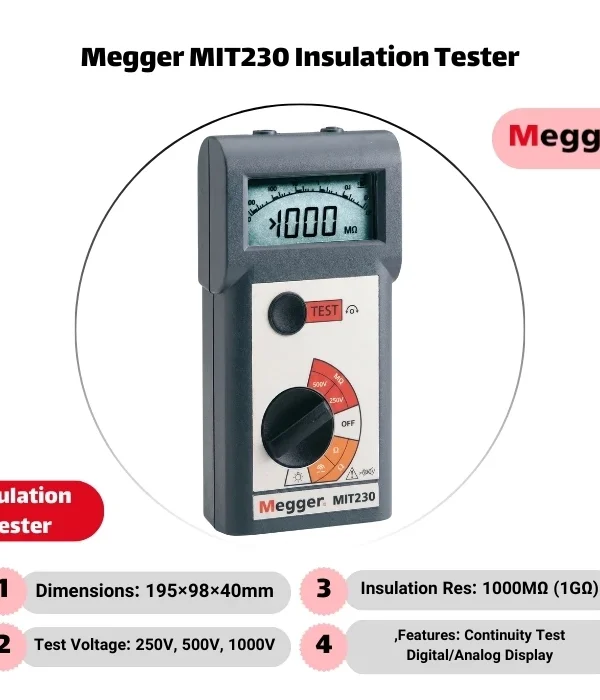

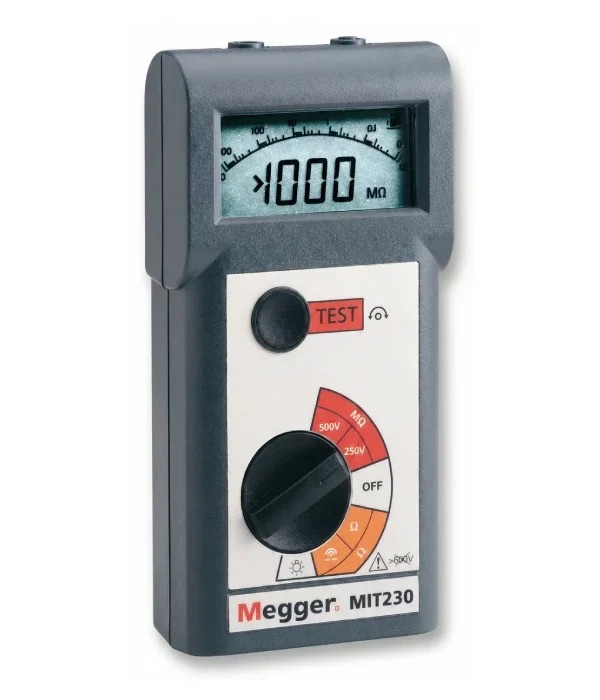

Megger MIT230 Pocket-Sized Insulation and Continuity Testers

The Megger MIT230 pocket-sized insulation and continuity testers are some of the most compact insulation testers on the market today. The MIT200 series includes models with one, two, and three test voltage options, providing a wide range of safety and operational features.

The display combines a digital readout with an analogue display, utilizing Megger’s patented DART technology. This provides the advantages of an LCD display, such as clear, accurate measurements and precise readings, along with an analogue pointer response for assessing circuit charge and discharge characteristics.

Megger MIT230 Key Features

  • Insulation testing to 1000 MΩ
  • Continuity testing at 200 mA down to 0.01 Ω
  • Live circuit warning (voltage display) and test inhibit
  • Digital/analogue display
  • Alkaline or rechargeable batteries
  • –10 °C to +55 °C operating temperature
  • CATIII 600 V
  • Conforms to EN61557-1

Megger MIT230 Specifications

Parameter Value
Insulation Range
Nominal test voltage 1000 V, 500 V, 250 V (DC)
Measurement range 10 kΩ – 1000 MΩ on all ranges
Terminal voltage on open circuit (DC) -0 % +25 % of rated voltage
Test current on load >1 mA at minimum pass values of insulation as specified in BS 7671, HD 384, IEC 364, VDE 0413 part 1
Continuity Range
Measuring range 0.01 Ω – 100.0 Ω (0 – 50 Ω on analogue scale)
Open circuit voltage 5 V ±1 V
Short circuit current 205 mA +10 mA -5 mA, >18 mA (10 – 100 Ω)
Accuracy (at 20°C) ±0.01 Ω to 9.99 Ω: ±3% ±2 digits
10.0 Ω to 99.9 Ω: ±5% ±2 digits
Zero offset adjust 0 to 9.99 Ω
Continuity buzzer Operates at < 2 Ω
Default Voltmeter
Range 25 V to 600 V at 50/60 Hz & DC
Accuracy 25 V to 450 V AC/DC: ±1% ±1 digit
450 V to 600 V AC: ±2% ±1 digit
Test inhibit Testing is inhibited if more than 50 V is detected.
Auto power down Operates after 10 minutes in standby mode.
Operating Temperature Range and Humidity
Operating temperature range -10°C to +55°C
Operating humidity 93% R.H. at +40°C max
Storage temperature range -25°C to +65°C
Other Features
IP rating IP40
Fuse 500 mA (F) 600 V, 32 x 6 mm Ceramic HBC 50 kA minimum (display shows if fuse is ruptured)
Over-voltage safety category Meets IEC 61010-1 Cat III 600 V phase to earth
Automatic discharge Item under test is automatically discharged after an insulation test; any voltage present is indicated on the display.
Power supply Battery 6 x 1.5 V cells IEC LR6 type (AA alkaline), rechargeable NiMH cells may be used. Battery condition is displayed as a four-section bar graph.
Battery life 3000 consecutive tests (5 seconds per test) on any test using 2 Ah batteries.
Weight All units: 530 g ± 5%
Dimensions All units: 195 x 98 x 40 mm
