Megger MIT525 5 kV Insulation Resistance Tester

The Megger MIT525 is the 5 kV model with memory in Megger’s first-generation MIT range, for test teams who must keep a record of insulation tests on cables, transformers, motors, generators, circuit breakers and bushings. Compared with the MIT515, it adds result storage with time and date stamps, recall to screen, USB download to PowerDB, a real-time 1 Hz output of voltage, current and resistance, and the dielectric discharge, stepped voltage and ramp tests. Megger has since replaced it with the Advanced Megger MIT525/2. The figures below are from Megger’s MIT515/MIT525/MIT1025/MIT1525 datasheet, which helps if you are matching an existing MIT525 fleet or test procedure.

Fixed test voltages are 250 V, 500 V, 1 kV, 2.5 kV and 5 kV, plus a user voltage from 40 V to 1 kV in 10 V steps and 1 to 5 kV in 25 V steps. Test voltage accuracy is +4%/−0%. At 5 kV, accuracy is ±5% up to 1 TΩ and ±20% up to 10 TΩ. At 500 V the ±5% band reaches 100 GΩ. The 3 mA output charges a cable at under 3 s/µF to 5 kV and discharges it at under 250 ms/µF. Noise rejection is 3 mA from 450 V to 5 kV. The guard removes parallel leakage paths down to 500 kΩ with no more than 1% extra error on a 100 MΩ load. Memory holds 5.5 hours of logging at 5-second intervals, and the timer runs to 99 min 59 s. The battery gives about 6 hours of continuous testing at 5 kV into 100 MΩ, and a 30-minute charge gives more than 60 minutes of testing. It weighs 4.5 kg.

MME is an authorized Megger representative in the UAE. See the Megger range and our insulation testers. For 10 kV in the same first-generation range, see the Megger MIT1025. For 5 kV go/no-go testing without memory, see the current Megger MIT515/2. Read our Megger MIT525 review and our guide to choosing 5 kV, 10 kV or 15 kV.

Megger MIT525 5 kV Insulation Resistance Tester — Diagnostic HV Testing with Memory

The Megger MIT525 is a 5 kV diagnostic insulation resistance tester with on-board result storage and download, for testing high-voltage electrical apparatus such as cables, switchgear, motors, generators and transformers. Measuring up to 10 TΩ with a full suite of diagnostic tests, capacitance and leakage-current measurement, it is a rugged, portable instrument for utility and industrial test teams to EN 61557.

Megger MIT525 Key Features

What the Megger MIT525 gives you on a 5 kV test:

• 5 kV test capability — selectable in 10 V steps to 1 kV and 25 V steps above, with a user-programmable lock voltage.
• Wide resistance range — measures 10 kΩ up to 10 TΩ, with ±5% accuracy to 1 TΩ and ±20% to 10 TΩ at 5 kV.
• Full diagnostic suite — IR, DAR, PI, DD, step-voltage (SV) and ramp testing.
• Result storage & download — store results and download via USB with PowerDB Lite software.
• Capacitance & leakage current — 10 nF–25 µF capacitance (test voltage above 500 V) and 0.01 nA–6 mA leakage-current measurement.
• Guard terminal — eliminates surface-leakage effects for accurate measurement.
• Rugged & weatherproof — IP65 (lid closed), −20 °C to +50 °C, dual-case fire-retardant design.
• Mains or battery — 10.8 V 5.2 Ah Li-ion (2.5 h charge) with line-power operation; CAT IV 600 V.

Megger MIT525 Applications

The MIT525 is ideal for diagnostic insulation testing and condition assessment of high-voltage apparatus — cables, rotating machines, switchgear, transformers and bushings — in utilities, industry and manufacturing where 5 kV testing with record-keeping is required.

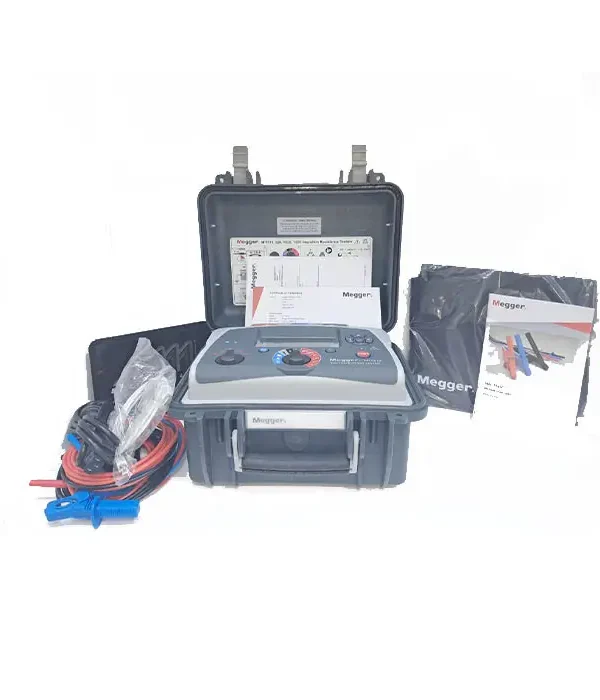

What’s in the Megger MIT525 Box

What comes with the MIT525:

• Megger MIT525 5 kV insulation resistance tester
• One 3 m three-lead set with medium insulated clips (1008-022)
• Power lead and USB cable
• PowerDB Lite software and product CD

Megger MIT525 questions

What test engineers ask before ordering:

• Which leads come with it? One 3 m three-lead set with medium insulated clips (1008-022). Sets of 5, 8, 10 and 15 m are optional.
• What does the MIT525/2 add? 6 mA noise immunity instead of 3 mA, the PDC test, the PI predictor, RE>Act and Bluetooth transfer.
• Can it run with a flat battery? Yes. It also works from 90–264 V AC mains.

Why Buy the Megger MIT525 from MME in UAE

MOHAMMAD MAHDI Electronics Trading LLC (MME) is your trusted supplier of genuine Megger test and measurement equipment in the UAE. We offer competitive pricing, fast local delivery across Dubai, Abu Dhabi and the wider UAE, and knowledgeable after-sales support. Contact us on WhatsApp for the latest price and availability.

Megger Mit525 Datasheet PdfPDF Download the Megger MIT515/525/1025/1525 datasheet (PDF)PDF.
