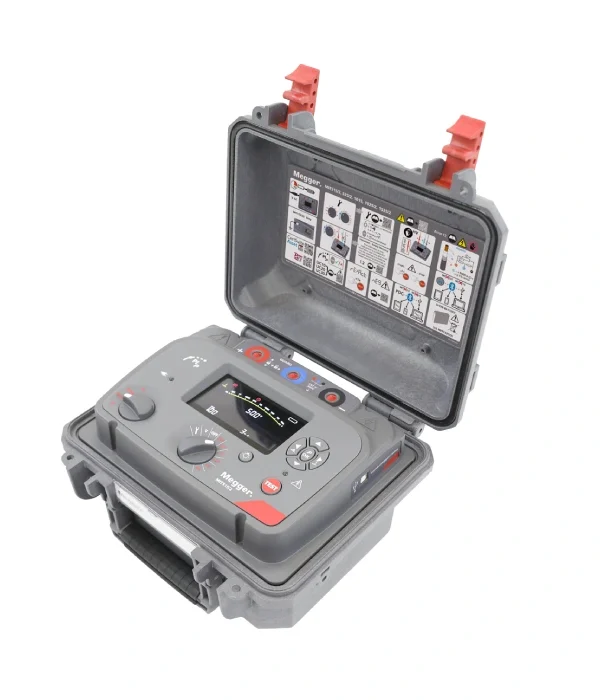

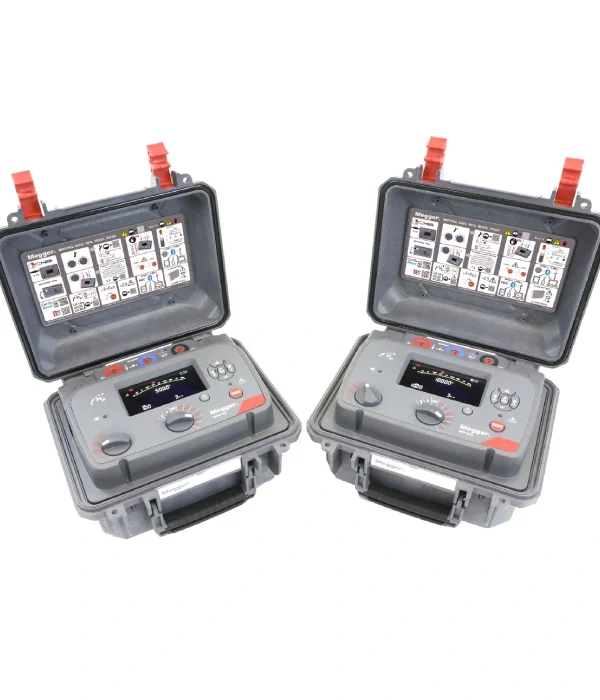

Megger MIT525/2 5 kV Insulation Resistance Tester — Advanced Diagnostic Megohmmeter

The Megger MIT525/2 is the advanced-generation 5 kV diagnostic insulation resistance tester for high-voltage apparatus. Measuring up to 15 TΩ, it combines a new colour display, the RE>Act and PIp diagnostic modes, user-selectable 1–6 mA test current, Bluetooth data logging and CertSuite Asset integration — giving test engineers faster, smarter condition assessment of cables, machines and switchgear.

Key Features

5 kV test capability — 250 V, 500 V, 1 kV, 2.5 kV and 5 kV plus user-defined voltages, measuring 10 kΩ to 15 TΩ.
Full diagnostic suite — IR, IR(t), DAR, PI, patented PIp predictor, DD, stepped voltage, ramp, RE>Act and PDC testing.
Selectable test current — user-selectable 1–6 mA output with enhanced noise rejection.
Capacitance & leakage — 10 nF–25 µF capacitance and 0.01 nA–6 mA leakage-current measurement.
New colour display — clear custom colour screen for fast result interpretation.
Bluetooth & CertSuite — Bluetooth LE data logging with time/date stamps and CertSuite Asset integration.
Rugged & weatherproof — IP65 (lid closed), −20 °C to +50 °C, CAT IV 600 V.
Long runtime — 10.8 V 5.2 Ah Li-ion (~6 h at 5 kV), 2.5 h charge and 30-minute quick charge.

Applications

The MIT525/2 is ideal for diagnostic insulation testing and condition monitoring of high-voltage apparatus — cables, rotating machines, transformers and switchgear — in utilities, industry and manufacturing, with digital record-keeping via CertSuite Asset.

What’s in the Box

Megger MIT525/2 5 kV insulation resistance tester
Three 3 m test lead sets (medium clips)
Screened USB cable and power lead
Quick-start guide

Why Buy from MME in UAE

MOHAMMAD MAHDI Electronics Trading LLC (MME) is your trusted supplier of genuine Megger test and measurement equipment in the UAE. We offer competitive pricing, fast local delivery across Dubai, Abu Dhabi and the wider UAE, and knowledgeable after-sales support. Contact us on WhatsApp for the latest price and availability.

Download the Megger MIT525-2/1025-2/1525-2 datasheet (PDF).

Specifications

Megger MIT525/2 Insulation Resistance Tester Specifications

Specification	Details
AC Voltage (Auto-ranging)	90–264 V RMS, 47–63 Hz 100 VA
Battery Charge Time	2.5 hours deep discharge, 2 hours normal discharge
Battery Voltage	10.8 V, 5.2 Ah Li-ion batteries
Battery Life	6 hours continuous testing at 5 kV with 100 MΩ load
Auto Power Off	Instrument turns off after a few minutes if not used to conserve battery life
Test Voltage
MIT525/2 Test Voltage	250 V, 500 V, 1000 V, 2500 V, 5000 V
User Defined Test Voltage	40 V to 1 kV in 10 V steps
Test Voltage Accuracy
Accuracy	±4%, ±0%, ±10% nominal test voltage at 1 GΩ load (0°C to 30°C)
Capacitor Charge & Discharge
Capacitor Charge	MIT525/2: <3 µF at 3 mA to 5 kV
Capacitor Discharge	MIT525/2: <250 ms/µF to discharge from 5 kV to 50 V
Resistance Range
Resistance Range	10 kΩ to 15 TΩ at 5 kV
Test Voltage Accuracy (Resistance)	±4% ±0%, ±10% nominal test voltage at 1 GΩ load (0°C to 30°C)
Capacitance Measurement
Capacitance Range	MIT525/2: 10 nF to 25 µF
Capacitance Accuracy	±10% ±5 nF
Environmental
Operating Temperature Range	–20°C to +50°C
Storage Temperature Range	–25°C to +65°C
Humidity	90% RH non-condensing at 40°C
IP Rating	IP65 (lid closed), IP40 (lid open)
Safety
Safety Rating	CAT IV 600 V to 3000 m altitude
Dimensions & Weight
Dimensions (L x W x H)	315 x 285 x 181 mm (5 kV, 10 kV)
Weight	4.5 kg (5 kV, 10 kV)
