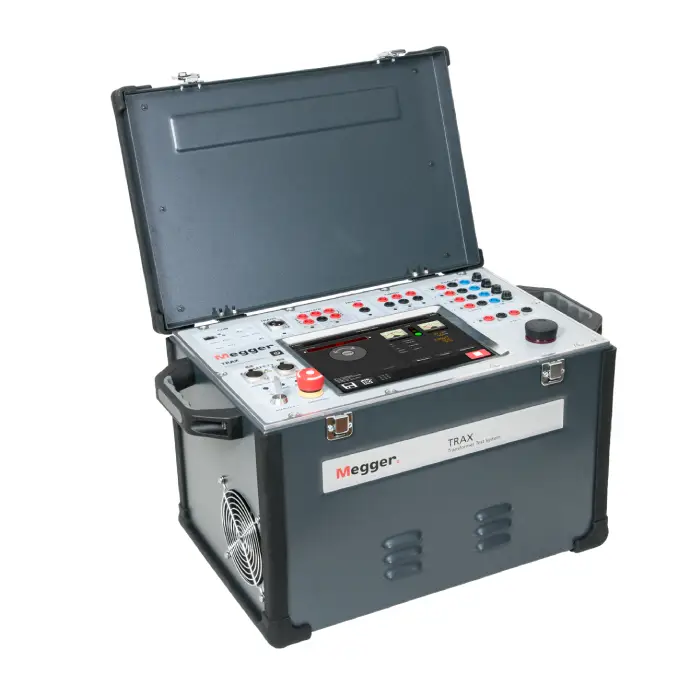

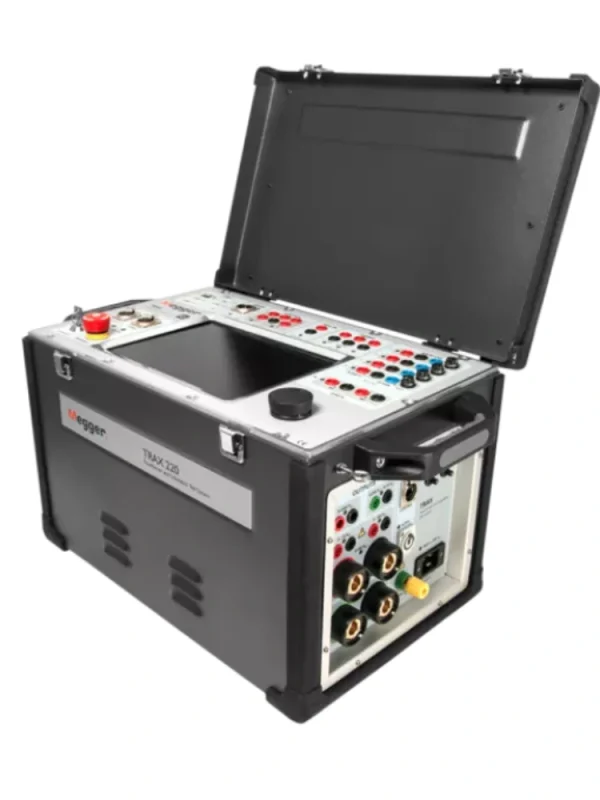

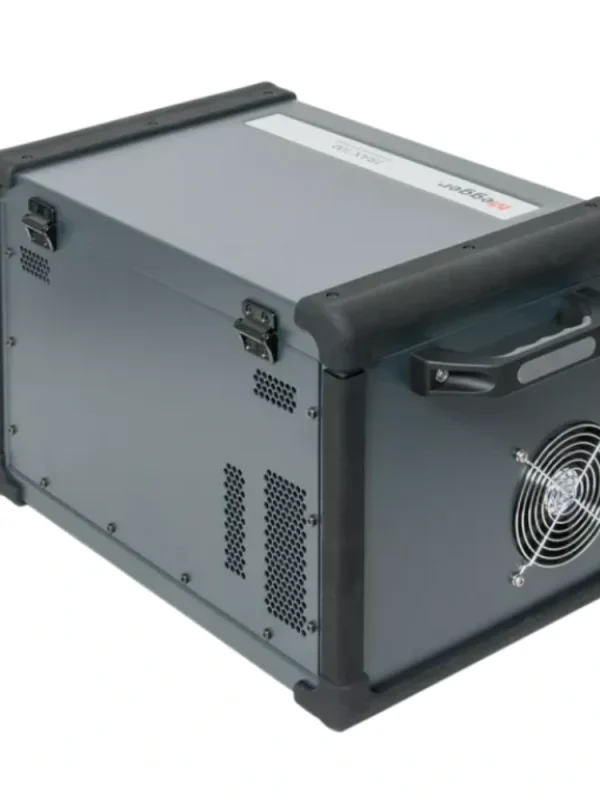

Megger TRAX 220 Transformer and Substation Test System

Brand: Megger

SKU: 125692

All-in-one Megger TRAX 220 transformer and substation test system with built-in touchscreen. Genuine Megger from MME UAE — request stock and pricing.

Secure Purchase
Fast Delivery
Genuine Guarantee
Online Payment

Call for price

Ask on WhatsApp

In-stock items are delivered within 2 business days.
We are not Supporting COD Payments Terms Outside UAE
For out-of-stock items, delivery may take 2 to 4 business weeks.

Request a rental quote in 3 quick steps.

Step 1 of 3 — Contact

First name

Last name

No login needed — guests can submit. We email your quote to this address.

Repair & calibration request — 2 steps.

Step 1 of 2 — Contact

First name

Last name

Phone

Company

Address

ZIP / Postal code

No login needed — guests can submit a repair request.

Do you already have this product?

Request a calibration certificate for a unit you already own.

Step 1 of 2 — Contact

First name

Last name

Phone

Company

We email your request to our calibration team. No payment is taken on this form.

Description

The Megger TRAX 220 is a multifunction transformer and substation test system that replaces a van full of separate instruments with one field-ready pack. As an authorized Megger distributor in the UAE, MME supplies the TRAX 220 for teams who need winding resistance, turns-ratio (TTR), demagnetization, tan delta / power factor and high-current testing from a single touchscreen workflow.

Use case: commissioning or maintenance crews on power transformers can run sequential electrical tests on site, review results on the 10.4-inch display, and leave without swapping between dedicated winding, TTR and insulation sets. Explore our power transformer testing category, the Megger brand page, and our Megger DLRO10HD low-resistance testing guide for related contact-resistance practice.

Specifications

Specification	Details
Conditions	Specifications valid at nominal input voltage and +23°C ±5°. Subject to change without notice.
Environment
Application field	For use in high-voltage substations and industrial environments
Temperature	Operating: –20°C to +55°C (–4°F to +131°F) Storage: –20°C to +70°C (–4°F to +158°F)
Humidity	<90% RH, non-condensing
CE-marking	LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU
Classifications and standards
IP rating (IEC 60529)	Instrument only: IP20 Instrument in hard case: IP21
General
Mains input	100–240 V, 50/60 Hz (±10%)
Input current	≤16 A continuous, up to 30 A short-term (<60 s)
Main fuses	F1 and F2, 25 A
Ground connections	TEST GROUND: Connect to object ground first GROUND: For extra grounding to unit or external objects
Dimensions	Instrument: 475 × 315 × 330 mm (18.7” × 12.4” × 13”) Soft case: 690 × 450 × 390 mm (27” × 18” × 15”) Hard case: 690 × 410 × 450 mm (27” × 16” × 18”)
Weight	TRAX 219: 25 kg (55 lbs) / 29 kg (64 lbs) / 37 kg (82 lbs) TRAX 220: 26 kg (57 lbs) / 30 kg (66 lbs) / 38 kg (84 lbs) TRAX 279: 29 kg (64 lbs) / 33 kg (73 lbs) / 41 kg (90 lbs) TRAX 280: 30 kg (66 lbs) / 34 kg (75 lbs) / 42 kg (93 lbs)

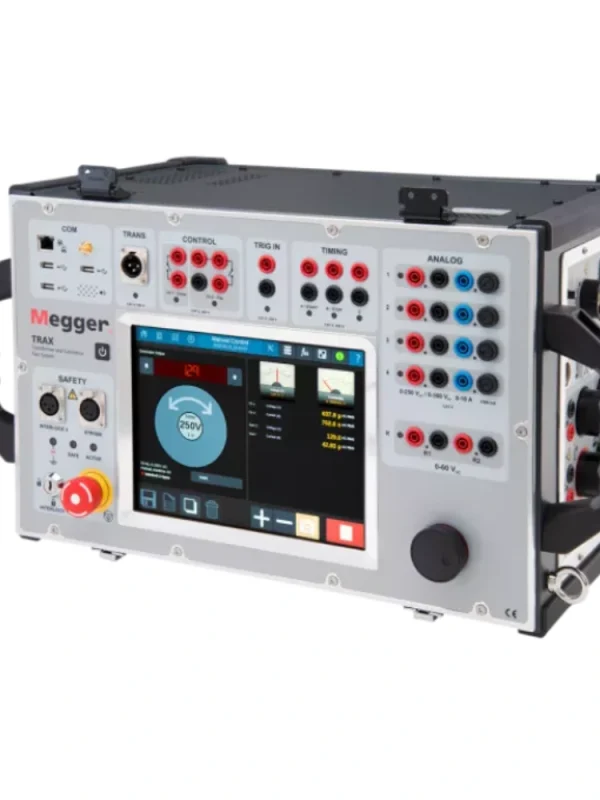

Display	Size: 10.4” Resolution: 1024 × 768 XGA Type: TFT touch Contrast ratio: 1000:1 Brightness: 1000 cd/m² * TRAX 219 and 279 have no display
Outputs
0–2200 VAC	1 A (1 min), 0.2 A (>2 h), 2500 VA max, 5–70 Hz
0–250 VAC / 0–10 AAC	10 A (1 min), 20 A (10 s max), 2.5 A (>2 h), 5–505 Hz
0–200 AAC	200 A/6 V (1 min), 80 A (>2 h), 45–70 Hz
TRAX 219/220: 0–800 AAC	800 A/6 V (1 min), 200 A/10 V (>2 h), 45–70 Hz
TRAX 279/280: 0–800 AAC	0–800 A/6 V (1 min), 0–200 A/10 V (>2 h), 45–70 Hz
0–16 ADC	16 A continuous, 1 A continuous
0–300 VDC	10 A (1 min), 2.5 A (>2 h), rectified DC, auxiliary supply
0–100 ADC	100 A (2 min), 70 A continuous
DC output power	Max 1000 VA continuous, Max 50 V compliance voltage
Binary output	250 V / 35 A max, 2 × 0–10000 s, for OLTC/circuit breaker operation
AUX CONTROL	54 V DC Ethernet comms and power for accessories
POWER	0–235 V AC direct, for powering accessories (TDX/TCX)
With TDX 120	12 kV AC, 500 mA (30 s), 300 mA (4 min), 200 mA (30 min), 100 mA continuous
With TCX 200	2000 A AC, 0–2000 A/2.4 V (1 min), 0–1000 A/4.8 V (1 min)
Inputs
ANALOG 1–4	Current: 4 × 0–10 A AC/DC Voltage: 4 × 250/300 V AC/DC
R1 R2	2 × 0–50 V DC, intended for resistance measurement, usable up to 40 V RMS
TRANS	Analog transducers and low-level analog signals
TRIG IN	Contact or voltage sense
TIMING	3 × 0–10000 s, binary inputs for timing in relay/circuit breaker testing
Calculated / Displayed Parameters
Arithmetic	+, –, ×, ÷
Power	P, VA, Q, S
Impedance	R (DC), Z, Xp, Xs, Rs, Rp, Ls, Lp, Cs, Cp, phase
Derating Conditions
Lower mains voltage	Output power decreased below 230–240 V
High ambient temperature	Reduced output current times at higher ambient
Lower frequencies	Voltage output derates linearly; at 5 Hz, max 10% of rated output
Measurement Accuracy
External AC/DC voltage & current	0.05% rdg + 0.05% FS (I ≤5 A) 0.2% rdg + 0.2% FS (5<I ≤10 A)
Internal DC current	0.1% rdg + 0.1% FS
Internal AC current	0.2% rdg + 0.2% FS
Internal AC voltage	0.2% rdg + 0.2% FS
Phase (0–360°)	0.1°
Accuracy (Derived Parameters)
WRM	1 A generator: 10 mΩ–10 kΩ 16 A generator: 0.63 mΩ–33.3 Ω 100 A generator: 0.1 mΩ–2.5 Ω Accuracy: 0.15% rdg + 0.15% FS, up to 4 digits
TTR	2500:1–1:25 000, Accuracy 0.07%, up to 4 digits
Communication
Ethernet	For external PC control or network connection
USB	3 × USB ports for multipurpose use
