Megger TXL830 Extra Load Unit for TORKEL Battery Test Systems

Megger TXL830 Overview

A 24 V bank built from large cells can ask for several hundred amps in a short capacity test, while a TORKEL 930 or 950 draws at most 220 A on its own (110 A for the TORKEL 910). The Megger TXL830 fills that gap at the low-voltage end of the range: a resistive load box, cabled straight to the battery terminals, that takes extra current alongside the TORKEL. It has no regulation of its own. The TORKEL measures the total battery current with its DC clamp-on probe, keeps that total at the set level and switches the TXL830 off through its TXL STOP output when the test ends.

According to the Megger TORKEL 900-series datasheet V12, the TXL830 takes up to 28 V DC and adds up to 300 A of load current, with 8.3 kW maximum power. Its three-position selector (0.275, 0.138 and 0.092 Ω) gives about 100, 200 or 300 A on a 12-cell lead-acid bank at 2.3 V per cell (27.6 V). Multiple TXL units can be linked to reach combined currents of up to several kA, with thermal cut-outs and automatic overload protection safeguarding the equipment. Mains powered and built for field use, the TXL830 takes its stop command from the TORKEL’s TXL STOP output, while the TORKEL measures the total current through its clamp-on ammeter, so the whole discharge is recorded as a single test.

Megger TXL830 Key Features

• Extra load unit that boosts the current capacity of TORKEL battery test systems.
• Takes up to 28 V DC and adds up to 300 A (8.3 kW) of load current.
• Multiple units linkable for combined currents of several kA.
• Connects directly to the battery; TORKEL measures via clamp-on ammeter.
• Automatic overload protection for safe operation.
• Mains powered and controlled entirely by the TORKEL system.

Megger TXL830 Applications

Where a Megger TXL830 earns its place:

• Capacity tests on 24 V lead-acid banks of 12 cells when the test current is above what the TORKEL alone can draw.
• Short, high-rate tests on large-Ah cells: a shorter test time means a higher current, which is exactly when Megger suggests adding TXL or TORKEL units.
• Six-cell 12 V banks, which Megger’s TXL datasheet also pairs with the TXL830.
• Multi-unit set-ups near 1 kA: Megger’s TXL datasheet shows 1,005 A on a 24 V bank from three TORKEL 840/860 units and three TXL830s.

What’s in the box with the Megger TXL830

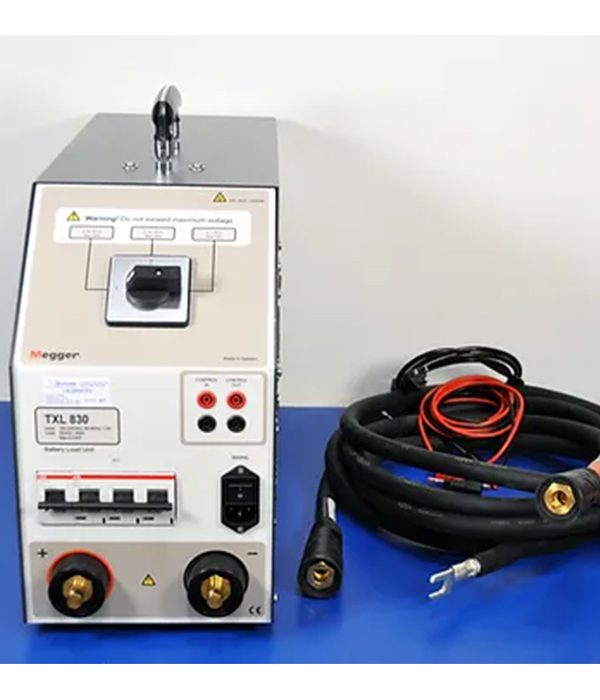

• TXL830 extra load unit.
• Cable set GA-09550, 2 x 3 m, 70 mm², for the battery connection.
• Control leads, 2 x 2 m, and transport case.
• Mains lead and user documentation.

Exact contents may vary by order; contact MME to confirm your configuration.

Why buy the Megger TXL830 from MME

Send MME the nominal voltage and cell count of your 12 V or 24 V bank, the test current you plan to draw and the TORKEL model you use. We will work out how many TXL830 units that takes and on which selector position, then quote.
